Introduction

Centerless Grinding

Introduction When discussing medical equipment, people often think of high-precision imaging devices and life-saving surgical scalpels, but few pay attention to the unsung hero behind them – the centerless grinder.

In the medical manufacturing field, machining accuracy not only affects product performance but also directly impacts patient safety.

Medical shaft parts and implants have extremely high requirements for dimensional accuracy, surface quality, and biocompatibility.

Among numerous machining processes, centerless grinding, with its high precision and high consistency, has become one of the key machining technologies.

I. Precision Requirements of Medical Parts

Medical shafts and implants are widely used in surgical instruments and orthopedic equipment. Their typical requirements are as follows:

Parameter	Common Requirements
Dimensional Tolerance	≤ 0.002 mm
Roundness	≤ 0.001 mm
Surface Roughness	Ra 0.1–0.3 μm

Even minute errors can affect the safety and reliability of use. The biggest advantage of centerless grinders is that they can grind parts without clamping them.

Relying on the cooperation of the grinding wheel, guide wheel, and tool holder, they grind parts to a perfectly round and smooth finish, achieving micron-level precision—simply put, errors finer than a hair can be precisely controlled.

Medical equipment demands parts where even the slightest error can have disastrous consequences, providing a perfect opportunity for centerless grinders.

Centerless grinding eliminates the need for a center clamp, reducing workpiece deformation and enabling continuous machining, making it particularly suitable for slender shaft parts.

It provides high-roundness, high-quality workpieces. Centerless grinders offer strong machining stability, making them suitable for mass production.

II. Applications of Centerless Grinding Machines in the Medical Industry

1. Minimally Invasive Medical Devices

With the increasing prevalence of minimally invasive surgery, parts as fine as hair, such as puncture needles used in laparoscopy, guide wires in gastroscopes, and support wires for vascular stents, are all meticulously crafted using centerless grinders.

Take puncture needles, for example; they not only need to be extremely fine but also have a mirror-smooth surface to avoid damaging the blood vessel wall.

Centerless grinders can control the roundness error of needles to within 0.001 mm and achieve a surface roughness of Ra 0.02 or lower, essentially giving the parts a "perfect spa treatment," ensuring smooth puncture and reducing patient discomfort.

2. Orthopedic Implant Instruments

For example, the pins of artificial joints and the shanks of orthopedic screws. These parts, when implanted into the human body, require not only high precision but also sufficient strength and wear resistance.

Centerless grinders avoid deformation caused by clamping, ensuring the straightness and roundness of the pins, allowing for smooth movement of artificial joints and preventing jamming.

It's important to understand that "parts" inside the human body cannot be easily repaired; the precise machining of centerless grinders provides an extra layer of safety for patients.

Drill bits, milling cutters, and ultrasonic surgical scalpels in orthopedic power systems are all high-speed rotating or vibrating components, requiring extremely high dynamic balance and contour accuracy.

CNC five-axis centerless grinding machines can complete the grinding of various complex surfaces such as helical blades, ball heads, and tapers in a single setup, ensuring tool runout is less than 0.005 mm.

Excellent dynamic balance significantly reduces vibration and noise during surgery, improving the surgeon's precision.

Orthopedic implants such as artificial hip joints, knee joints, and spinal fixation systems typically use cobalt-chromium-molybdenum alloys, titanium alloys, or stainless steel.

These materials have high hardness and strong corrosion resistance, making it difficult to guarantee contour accuracy and surface integrity using traditional machining methods.

CNC grinding machines, through multi-axis linkage control and CBN or diamond grinding wheels, can perform precision grinding of complex curved surfaces such as femoral heads, tibial plateaus, and pedicle screws.

The surface roughness after grinding can reach Ra 0.2 micrometers or less, significantly reducing frictional wear between the implant and bone tissue and extending the prosthesis's lifespan.

3. Dental Implant and Prosthesis Machining

Dental implants are typical miniature precision medical components, requiring sub-millimeter precision for their thread contours, neck microgrooves, and plateau transition structures.

CNC thread grinders or high-precision CNC internal and external cylindrical grinders can process implants with diameters of only 3 to 5 millimeters, with pitch errors controlled within 0.002 millimeters.

Simultaneously, for personalized abutments and crown restorations using zirconia or glass-ceramic materials, high-speed CNC grinding combined with specialized cooling technology can prevent chipping of brittle materials and achieve a high-gloss surface, reducing subsequent polishing processes.

4. Core Components of Medical Equipment

For example, the valve core of a ventilator and the plunger rod of an infusion pump are components directly related to the operational stability of the equipment.

The ventilator valve core controls the airflow, and even slight deviations can affect the patient's oxygen supply; the plunger rod of an infusion pump determines the accuracy of drug delivery, and even a drop too much or too little can be life-threatening.

Centerless grinders can precisely grind these core components, making medical equipment "obedient and reliable," providing stable assurance for diagnosis and treatment.

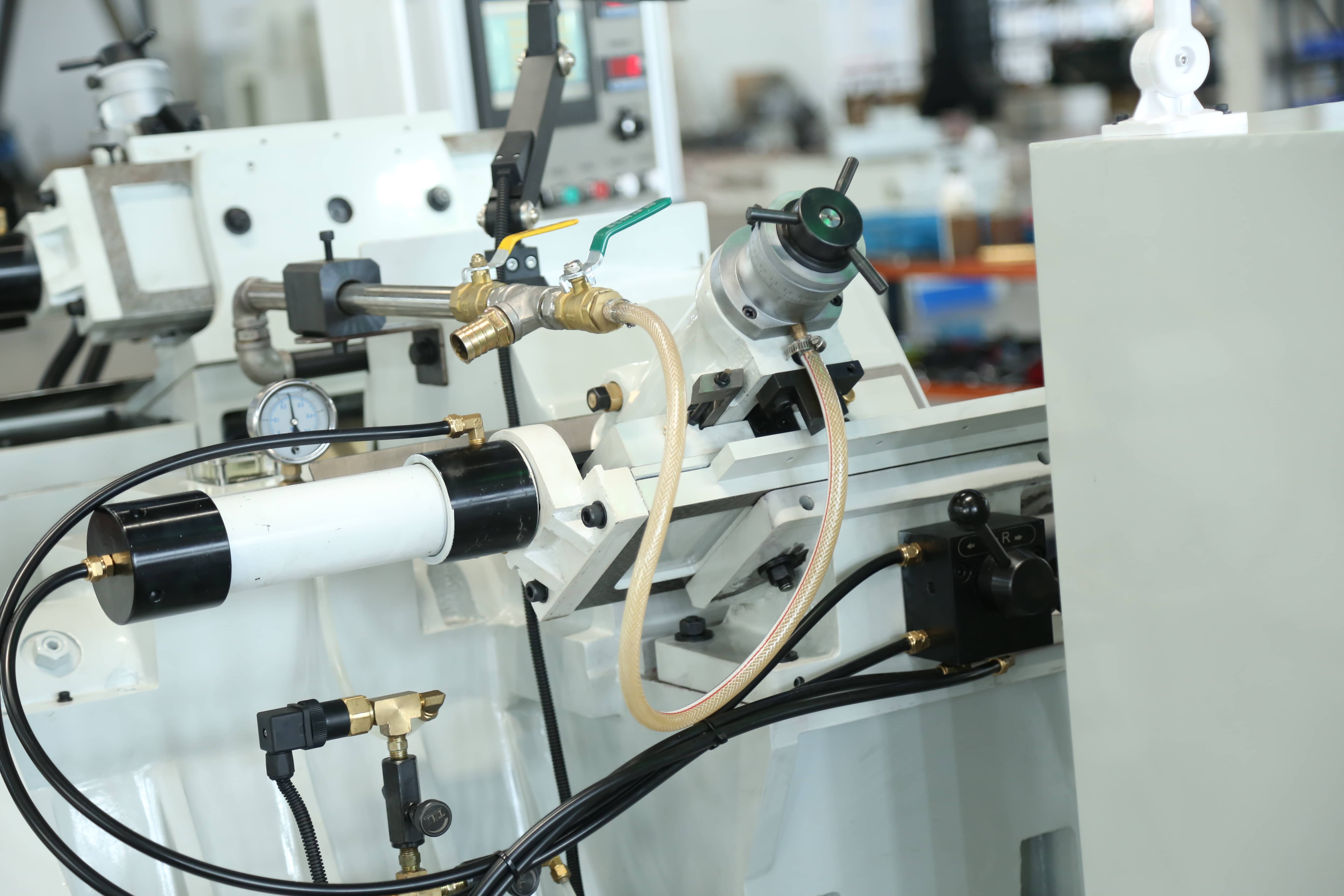

centerless grinding machine

III. Advantages of CNC centerless grinding machines

Centerless grinding in the medical industry can provide high-quality medical devices.

Smooth workpiece surfaces effectively reduce tissue friction and improve corrosion resistance and safety. High-Precision Centerless Grinding can achieve fine surfaces with a Ra of 0.1–0.2 μm.

Common materials used in the medical industry for centerless grinding include medical-grade stainless steel (such as 316L), titanium alloys, and cobalt-chromium alloys. These materials require high precision in grinding parameters and grinding wheels.

CNC centerless grinding machines have long been automated, and when combined with inspection equipment, they can monitor accuracy in real time, essentially having a built-in quality control function.

This improves efficiency and reduces human error. In today's medical industry, which pursues "precision medicine," this "hardcore tool" of CNC centerless grinding is quietly supporting the advancement of medical technology.

Using a CNC system enables precise control and high repeatability, ensuring consistency in automated production and workpiece manufacturing.

IV. Common Problems and Solutions

Problem	Solution
Heat Effects	Enhanced Cooling
Surface Defects	Parameter Optimization
Deformation	Improved Support Stability
Insufficient Precision	Use CNC Equipment

Conclusion

In short, behind those life-saving medical devices lie precision machining "masters" like centerless grinders.

With micron-level precision, they grind every critical component, safeguarding our health.

This also tells us that progress in the medical industry requires not only breakthroughs in front-end diagnostic and treatment technologies but also the support of back-end precision manufacturing.

Centerless grinding is a crucial process for machining medical shafts and implants, achieving high precision, high quality, and high consistency in production.

YASHIDA high-precision CNC centerless grinders offer various configuration options from single-axis to five-axis. If you are looking for medical component machining solutions, please contact us for professional support and equipment recommendations.
