Roundness is one of the most critical quality indicators in the machining of shafts, pins, and bearings. Centerless grinding, with its high efficiency and high precision, has a significant advantage in achieving high roundness.
Unlike traditional cylindrical grinding, centerless grinding does not rely on centers or chucks to hold the workpiece. Instead, it supports and controls the workpiece through a grinding wheel, guide wheel, and support tool. This unique structure allows it to achieve excellent roundness with proper adjustments.
So, how does centerless grinding achieve high roundness? The key lies in the combined effect of geometric principles, equipment structure, and process control.
One of the important reasons why centerless grinding can achieve high roundness is its self-correcting geometric characteristics.
During the grinding process, the workpiece rotates between the grinding wheel and guide wheel, and is supported by the support tool. When there are high points on the workpiece, these high points will preferentially contact the grinding wheel and be gradually ground away.
As the workpiece rotates continuously and through multiple cycles, roundness errors are gradually corrected, resulting in higher roundness.
The position and height of the support tool have a significant impact on roundness. When the workpiece center is higher than the line connecting the grinding wheel and the guide wheel, roundness correction is beneficial. Improper height settings can easily lead to polygonal errors.
A reasonable support tool height can make the grinding force more stable, thus continuously correcting the workpiece shape.
The guide wheel controls the workpiece's rotational speed and feed direction, and is a crucial factor in achieving stable grinding.
Stable guide wheel control ensures uniform workpiece rotation, resulting in uniform grinding and improved roundness.
A good CNC centerless grinder, through precise control of the guide wheel system, achieves stable and repeatable machining results, contributing to excellent roundness.

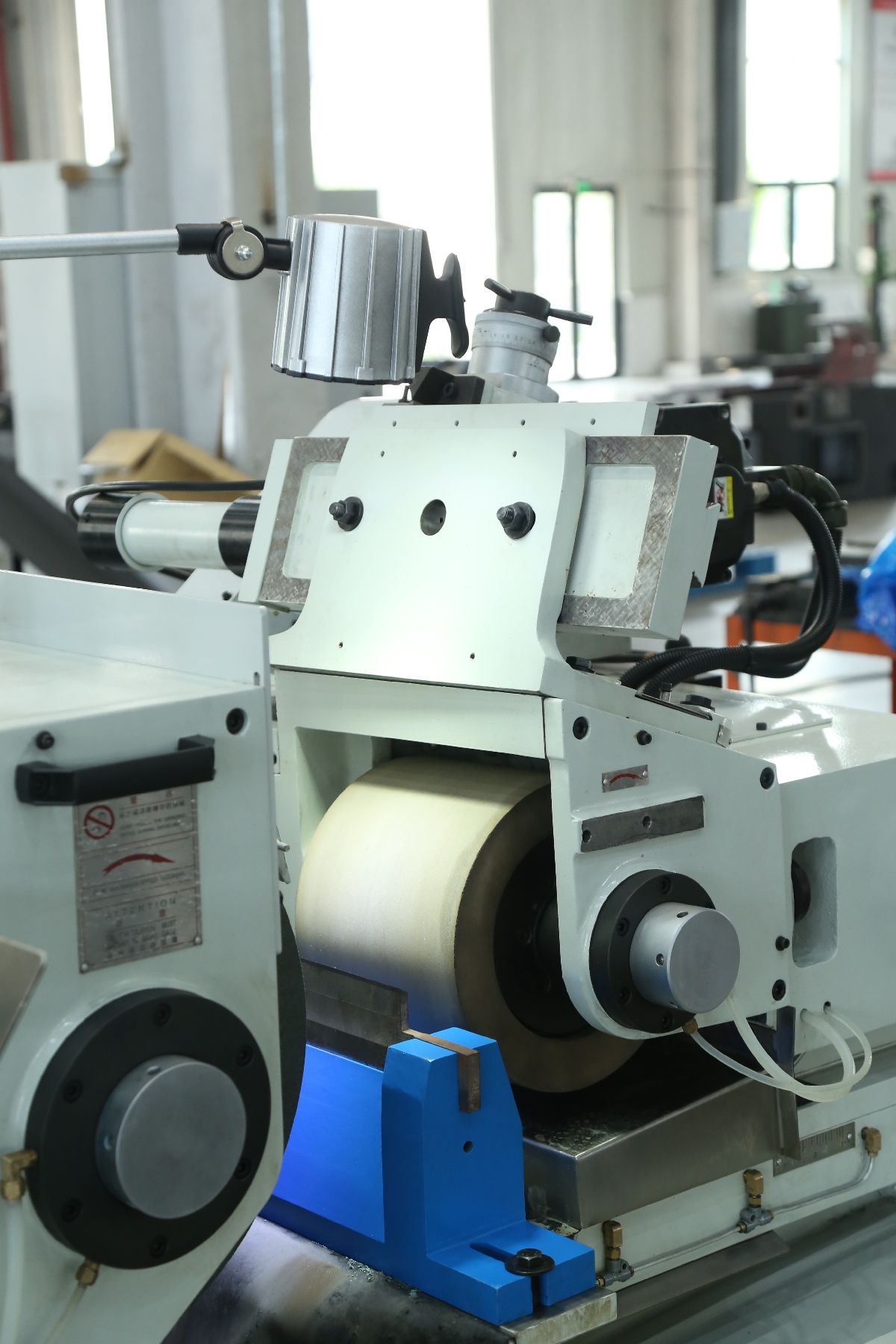

The condition of the grinding wheel directly affects grinding quality. Good grinding wheel dressing affects the sharpness of the abrasive grains, the uniformity of cutting, and the amount of machine vibration.
Poor grinding wheel dressing leads to uneven grinding, thus affecting roundness. Therefore, regular grinding wheel dressing is a crucial measure to ensure accuracy.
Machine tool rigidity is a fundamental factor affecting roundness. Vibration or structural instability in the machine tool directly impacts the grinding process, thus reducing roundness.
High-quality centerless grinders typically possess a high-rigidity machine tool structure, a precision spindle system, and a stable guideway design.

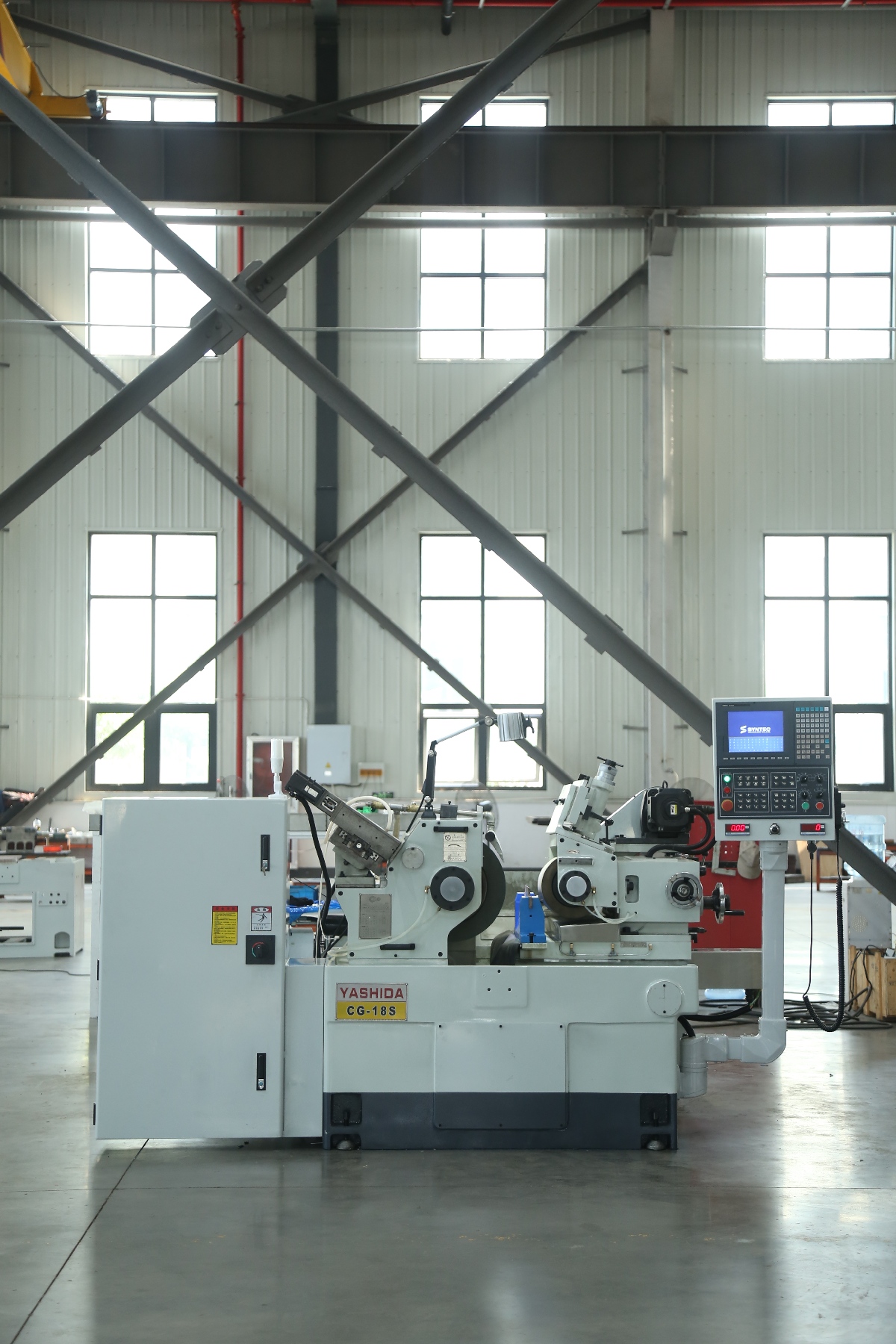

For example, the YASHIDA CG-18S Centerless Grinding Machine employs a high-rigidity structure and high-precision core components, exhibiting low vibration and high stability during machining, contributing to high roundness machining.
Appropriate process parameters are equally critical. Properly setting the grinding wheel speed and feed rate during grinding can achieve better results.
Inappropriate parameter settings may lead to polygonal workpiece errors, chatter marks, or unstable roundness. Optimizing parameters can significantly improve grinding stability and roundness quality.
Achieving high roundness in centerless grinding relies on the combined effects of geometric principles, equipment precision, and process control. Tool height, guide wheel control, grinding wheel condition, and machine tool rigidity are all key factors.
With the help of high-performance equipment such as YASHIDA CNC centerless grinders, companies can consistently achieve high-precision roundness requirements in mass production.
Understanding these principles helps optimize machining processes and improve product quality.
