Introduction

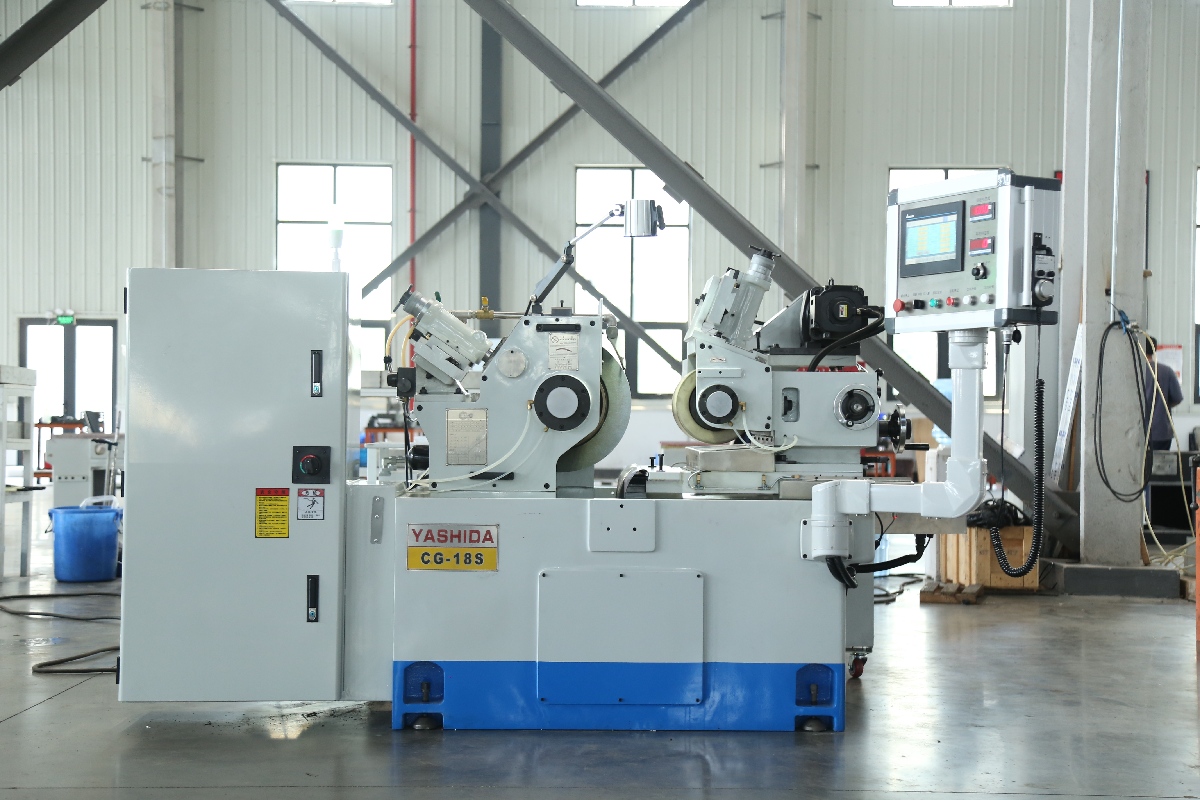

Centerless Grinder

Bearings, as core components of rotating machinery, have extremely high requirements for precision, consistency, and surface quality.

Their machining quality directly affects the stability, efficiency, and service life of the equipment. Among numerous machining processes, centerless grinding has become an indispensable and important technical means in bearing manufacturing.

Centerless Cylindrical Grinding machines, with their high-precision and high-efficiency machining characteristics, are gradually becoming one of the important technical directions for improving bearing precision.

I. Precision Requirements in Bearing Manufacturing

Bearings operate in high-speed, high-load environments, requiring extremely stringent machining precision:

Parameter	Typical Requirement
Roundness	≤ 0.001–0.002 mm
Diameter Tolerance	≤ 0.002 mm
Surface Roughness	Ra 0.2–0.4 μm

Even minute errors can lead to increased friction, increased noise, or even failure.

II. Advantages of Centerless Grinding

Centerless cylindrical grinding machines are a precision grinding technology that uses the outer diameter of a workpiece as the machining object.

Through the relative movement of the workpiece with the rotating support plate and the grinding wheel, centerless cylindrical grinding is achieved.

Compared to traditional grinding processes, centerless cylindrical grinding offers unique advantages in bearing machining: it eliminates the need for workpiece clamping and positioning;the workpiece is supported between the grinding wheel and guide wheel, avoiding deformation caused by center pressure.

Simultaneously, the grinding wheel dressing system can compensate for wear in real time, ensuring the stability of the machining process.

This process is particularly suitable for batch machining of rotating workpieces such as bearing inner and outer rings and rollers, effectively controlling machining errors and providing extremely high roundness and precision, especially suitable for bearing rollers and shaft parts.

In terms of improving bearing precision, the role of centerless cylindrical grinding machines is crucial throughout key machining stages.

The outer diameters of the inner and outer rings of bearings must meet strict dimensional and shape tolerance requirements; for example, cylindricity deviation must be controlled within a few micrometers to ensure concentricity during rotation.

Centerless cylindrical grinding machines, through precise control of grinding parameters by a CNC system, can achieve continuous grinding of the workpiece's outer diameter, effectively improving roundness and cylindricity indicators.

Furthermore, the improvement in surface finish by centerless cylindrical grinding machines is also critical; a smooth machined surface reduces friction and wear, extending bearing life.

The value of centerless cylindrical grinding machines in bearing machining also lies in their process adaptability.

For different types of bearings (such as deep groove ball bearings and tapered roller bearings), centerless cylindrical grinding machines can flexibly meet complex machining needs by adjusting parameters such as the grinding wheel angle and grinding speed.

For example, in grinding the large end face of tapered roller bearings, the multi-axis linkage system of a centerless cylindrical grinding machine can ensure the perpendicularity of the tapered surface to the large end face, ensuring a good fit after assembly.

This "one-specialty-multi-functional" machining capability makes centerless cylindrical grinding machines one of the important processes in modern precision bearing manufacturing.

III. Application Scenarios

In the industrial manufacturing sector, the application scenarios of centerless cylindrical grinding machines widely cover the high-end equipment manufacturing field.

In the production of automotive transmission bearings, centerless cylindrical grinding machines can process high-precision raceways, ensuring smooth gear meshing;

In the machining of wind turbine bearings, centerless cylindrical grinding machines can handle the outer diameter of large bearings, adapting to the dynamic balancing requirements under high-speed rotation;

In the manufacturing of machine tool spindle bearings, centerless cylindrical grinding machines improve the consistency of bearing radial clearance through fine grinding, reducing vibration and noise during equipment operation.

Application Scenarios of Centerless Cylindrical Grinding Equipment in Bearing Manufacturing Production Lines.

In these application scenarios, centerless cylindrical grinding machines not only meet the high-precision requirements of bearings but also help companies enhance their product competitiveness within the industry.

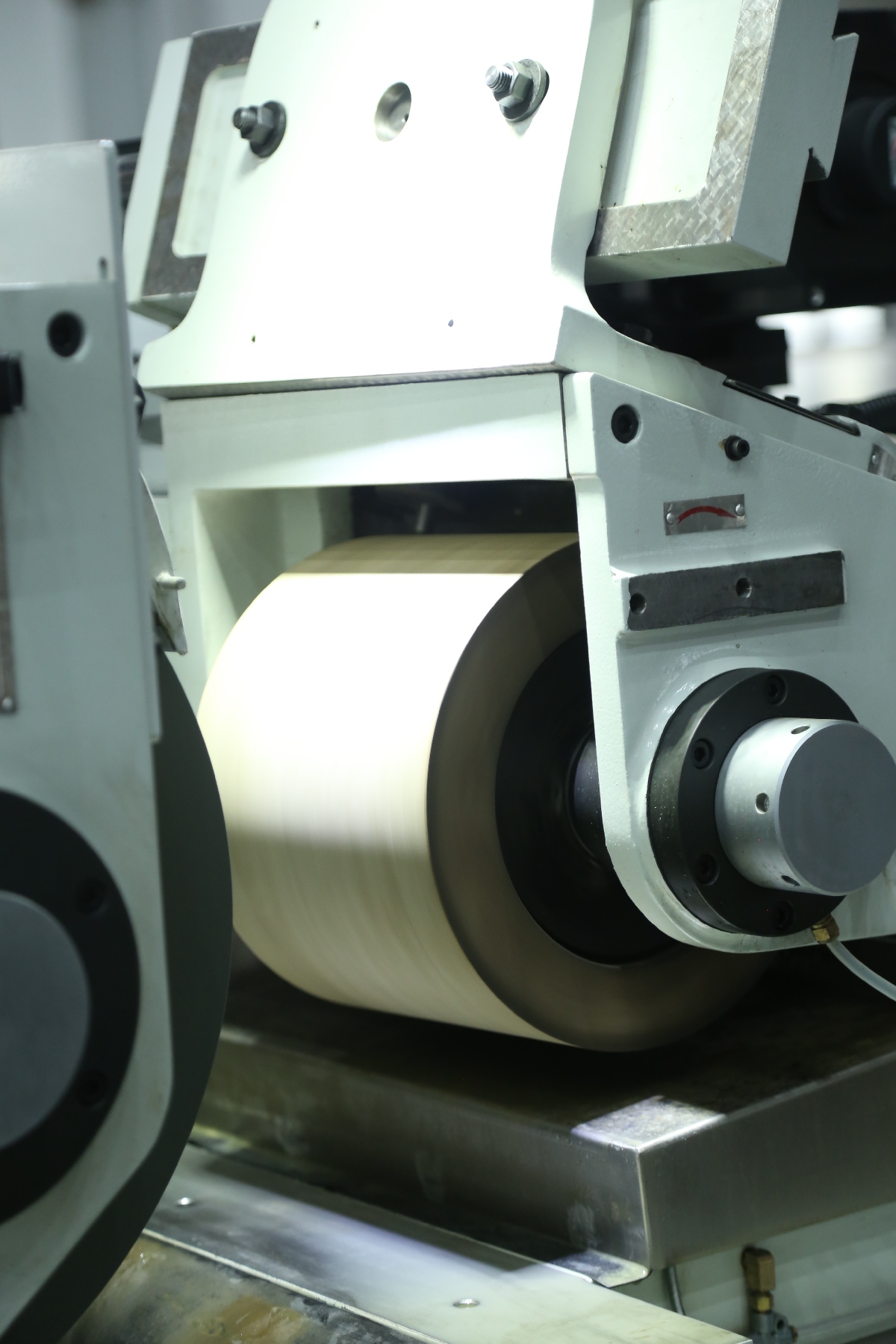

centerless cylindrical grinder

IV. Improving Roundness and Surface Quality

CNC centerless grinding machines, through precise control of the grinding process via a CNC system, can achieve stable machining of the workpiece's outer diameter, roundness, cylindricity, and surface roughness.

This high-precision CNC Centerless Grinding Machine ensures that every bearing component meets design standards, laying a solid foundation for the smooth, low-noise, and long-life operation of the bearing.

By optimizing the guide wheel speed and grinding parameters, roundness can be effectively improved and surface defects reduced.

V. Common Problems and Solutions

Problem	Solution
Polygonal Error	Adjust workpiece height and guide wheel speed
Vibration	Improve machine tool rigidity
Surface Defects	Optimize parameters
Grinding Wheel Wear	Regular dressing

VI. Advantages of CNC Centerless Grinding Machines

Comparison	Traditional Equipment	CNC Centerless Grinding Machine
Automation	Low	High
Accuracy Stability	Moderate	High
Repeatability	Limited	Excellent
Machining Efficiency	Medium	High

Compared to ordinary centerless grinding machines, a high-performance CNC centerless grinding machine offers numerous advantages.

Its high degree of automation significantly reduces manual labor intensity and minimizes quality fluctuations caused by human factors.

Simultaneously, the intelligent control system of modern CNC centerless grinding machines can store multiple sets of machining parameters and quickly switch between machining programs for different products, greatly enhancing the flexibility of the production line.

This means that bearing manufacturers can more flexibly respond to market demands for diverse varieties and varying batch sizes. The CNC system enables precise parameter control, improving batch consistency.

Conclusion

Centerless grinding has irreplaceable advantages in bearing manufacturing and is a crucial process for achieving high-precision, high-efficiency production.

By optimizing process and equipment selection, CNC centerless grinders can significantly improve product quality and production efficiency.

YASHIDA specializes in centerless grinders, offering both the affordable and user-friendly CG-18S manual grinder and the CG-18CNC centerless grinder, allowing customers to choose the appropriate grinder based on their factory's specific needs.

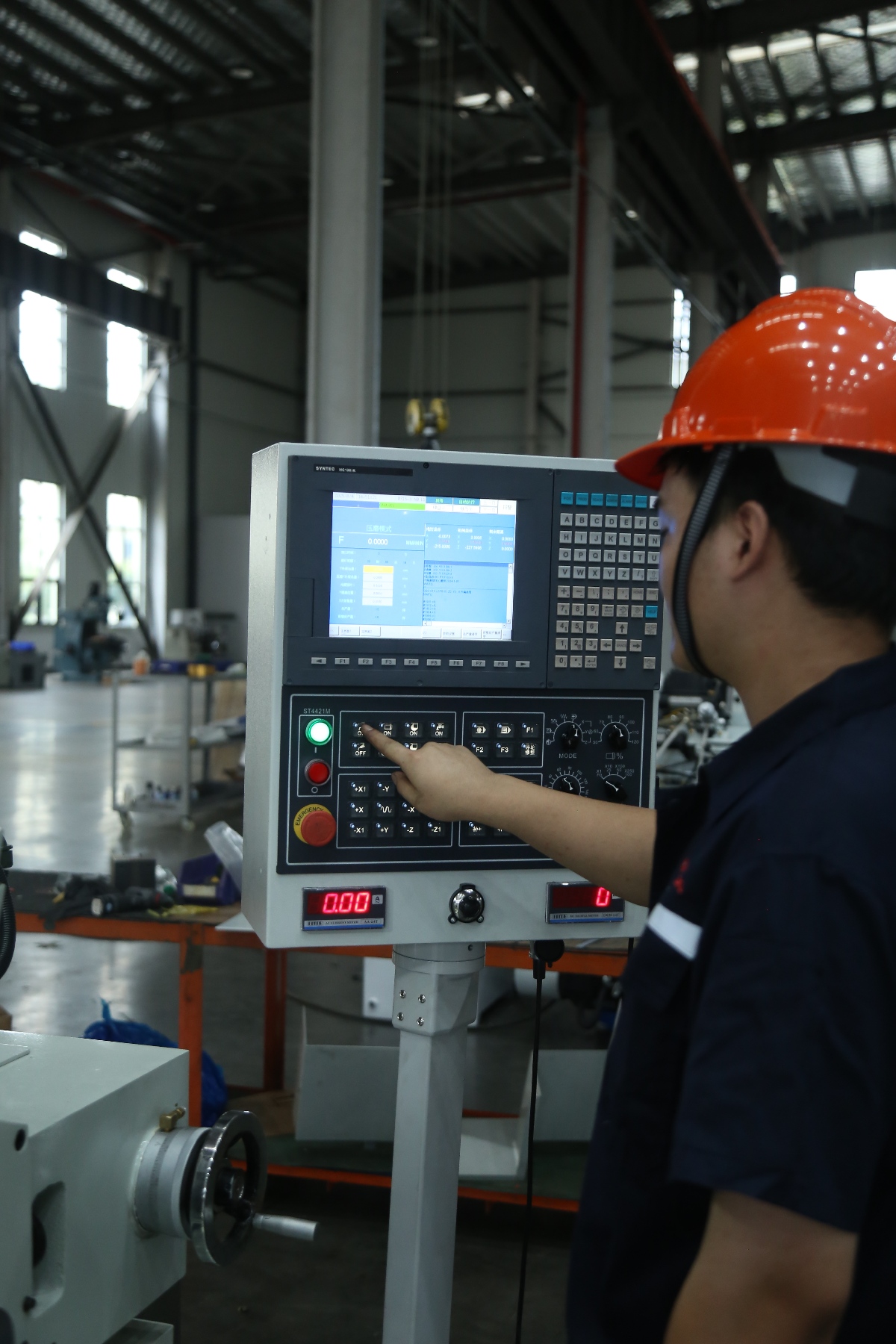

centerless grinding machine
