Centerless Grinding Machine
- CNC Centerless External Grinding Machine

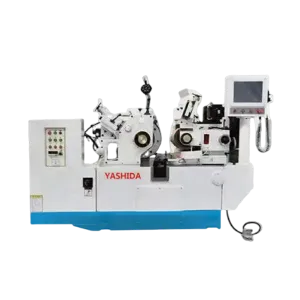

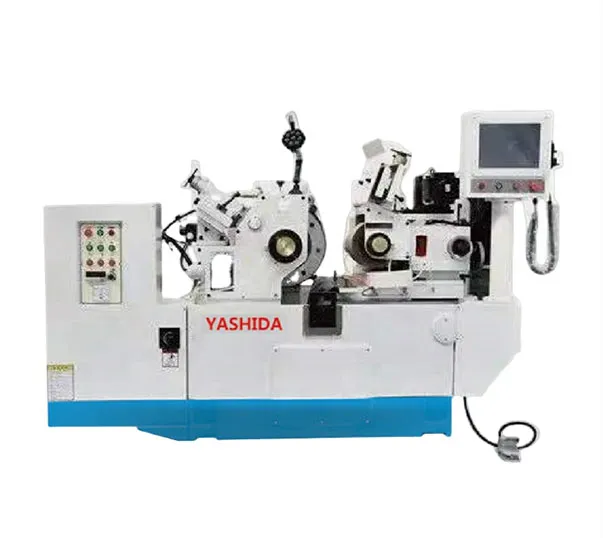

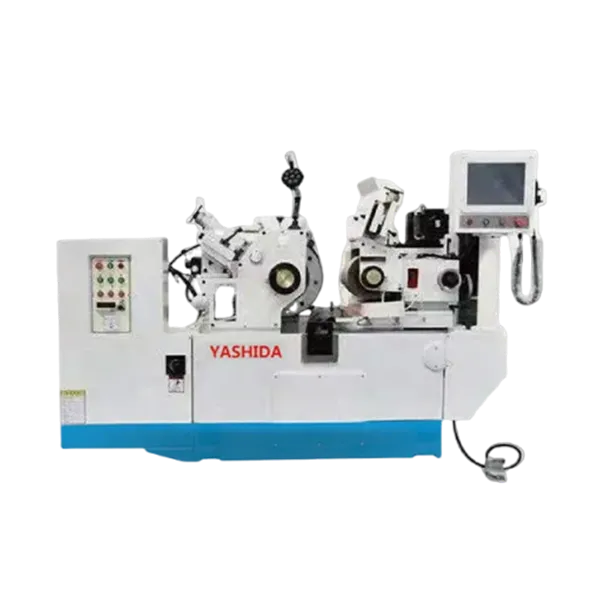

> CG18CNC-1A CNC centerless cylindrical grinding machine
This grinding machine is driven by a servo motor, allowing for fine-tuned feed. A servo system can be added for touchscreen control, facilitating grinding process control and easier dimensional adjustments.
The machine utilizes a CNC system for simpler, more user-friendly operation, programmable control, and precise grinding feed settings.
Automatic trimming and correction functions can be added, and a cantilever gantry robot or unmanned robot can be installed to achieve unmanned grinding.
Cylindricity: ≤0.002mm
Surface Roughness: Rz≤0.3μm
Long-lasting
Durability
Japan's premier grinding machine manufacturer employs advanced technology suitable for machining medical guide wires, shafts, pins, rollers, sleeves, rings, slender shafts, thin-walled components, simple stepped shafts, and multi-stepped small shafts. Materials include ceramics, alloy steel, bearing steel, tool steel, mold steel, copper, aluminum, high-temperature alloys, and cemented carbide. Ideal for automotive parts, aerospace, and other industries.
Double V-shaped guide rails + dovetail groove structure, capable of ±5 degrees rotation with feed adjustment precision down to 0.001mm.
Hydraulic drive, continuously variable transmission, and smooth dressing significantly enhance straightness and surface roughness during grinding.
| Item | CG18CNC-1A |
| Standard worktable working diameter | Ф1mm-Ф50mm |
| Special worktable working diameter | Ф40mm-Ф100mm |
| grinding wheel dimensions (outer diameter x width x inner diameter) | Ф455x205Xф228.6mm |
| Dressing wheel dimensions (outer diameter x width x inner diameter) | Ф255x205xФ111.2mm |
| Grinding wheel speed | 1500R.P.M |
| Dressing wheel speed | 0~320R.P.M |
| Grinding wheel drive motor | 15HP |
| Dressing wheel drive motor | 3.0KW |
| Hydraulic pump drive motor | 1.5HP |
| Cooling pump drive motor | 1/4HP |
| Worktable feed servo motor | 1.5KW |
| Operating system options | 1.Delta 2.NewTai 3.Mitsubishi、4.Siemens |
| Dressing wheel feed scale | 3.5mm/turn 0.05mm/scale |
| Dressing wheel feed fine adjustment scale | 0.1mm/turn 0.001/scale |
| Truing device feed scale | 2mm/turn 0.01mm/scale |
| Dressing wheel tilt angle | +5°~﹣3° |
| Dressing wheel rotary angle | ±5° |
| Machine weight | 3000kgs |
| Packing weight | 3300kgs |
| Machine dimensions | 2265*1900*1650mm |
| Packing dimensions | 2400*2100*1750mm |
Standard accessories
| ITEM | Quantity（set） |
| Grinding Wheel and Flange | 1 |
| Adjusting wheel and adjusting wheel flange | 1 |
| Pass-Through Tool Post and Pass Through Tool Holder | 1 |
| water tank and water pump | 1 |
| Foot Pads and Screws | 1 |
| Hydraulic workstation (oil tank and oil pump, oil pump motor) | 1 |
| Toolbox and tools | 1 |
| work light | 1 |
| Surface Grinding Wheel Dresser (with Diamond Dresser) | 1 |
| Electrical box (including CE safety switch) | 1 |
| Flange puller assembly | 1 |
Roundness: 0.002mm
Straightness: ≤0.003mm
Long-lasting
Durability
Japan's premier grinding machine manufacturer employs advanced technology suitable for machining medical guide wires, shafts, pins, rollers, sleeves, rings, slender shafts, thin-walled components, simple stepped shafts, and multi-stepped small shafts. Materials include ceramics, alloy steel, bearing steel, tool steel, mold steel, copper, aluminum, high-temperature alloys, and cemented carbide. Ideal for automotive parts, aerospace, and other industries.
Double V-shaped guide rails + dovetail groove structure, capable of ±5 degrees rotation with feed adjustment precision down to 0.001mm.
Hydraulic drive, continuously variable transmission, and smooth dressing significantly enhance straightness and surface roughness during grinding.
| Specifications | Unit | |
| Maximum Grinding Length | 450mm | |
| Maximum width of grinding | 150mm | |
| Distance from grinding wheel axis to workbench | 385mm | |
| Grinding wheel size (outside diameter * thickness * aperture) | 180*13*31.75mm | |
| Spindle speed (50Hz/60Hz) | 3000rpm/3600rpm | |
|
Every turn of the handwheel feeds Amount |
Table moves left and right | 100mm |
| Saddle fore-and-aft momentum | 5mm (0.02mm per scale) | |
| Up-and-down movement of grinding wheel | 1mm (0.005mm per scale) | |
| Grinding wheel motor (V3) | 1.1Kw1.5HP | |
| Vacuum motor | 0.4Kw | |
| Machine size (length * width * height) | 1400*920*1850mm | |
| Mechanical weight (approx.) | 750kg | |
| Specifications | Unit | |
| Maximum Grinding Length | 450mm | |
| Maximum width of grinding | 150mm | |
| Distance from grinding wheel axis to workbench | 385mm | |
| Grinding wheel size (outside diameter * thickness * aperture) | 180*13*31.75mm | |
| Spindle speed (50Hz/60Hz) | 3000rpm/3600rpm | |
|
Every turn of the handwheel feeds Amount |
Table moves left and right | 100mm |
| Saddle fore-and-aft momentum | 5mm (0.02mm per scale) | |
| Up-and-down movement of grinding wheel | 1mm (0.005mm per scale) | |
| Grinding wheel motor (V3) | 1.1Kw1.5HP | |
| Vacuum motor | 0.4Kw | |
| Machine size (length * width * height) | 1400*920*1850mm | |
| Quartz lamp | 1 lamp | |
