Introduction

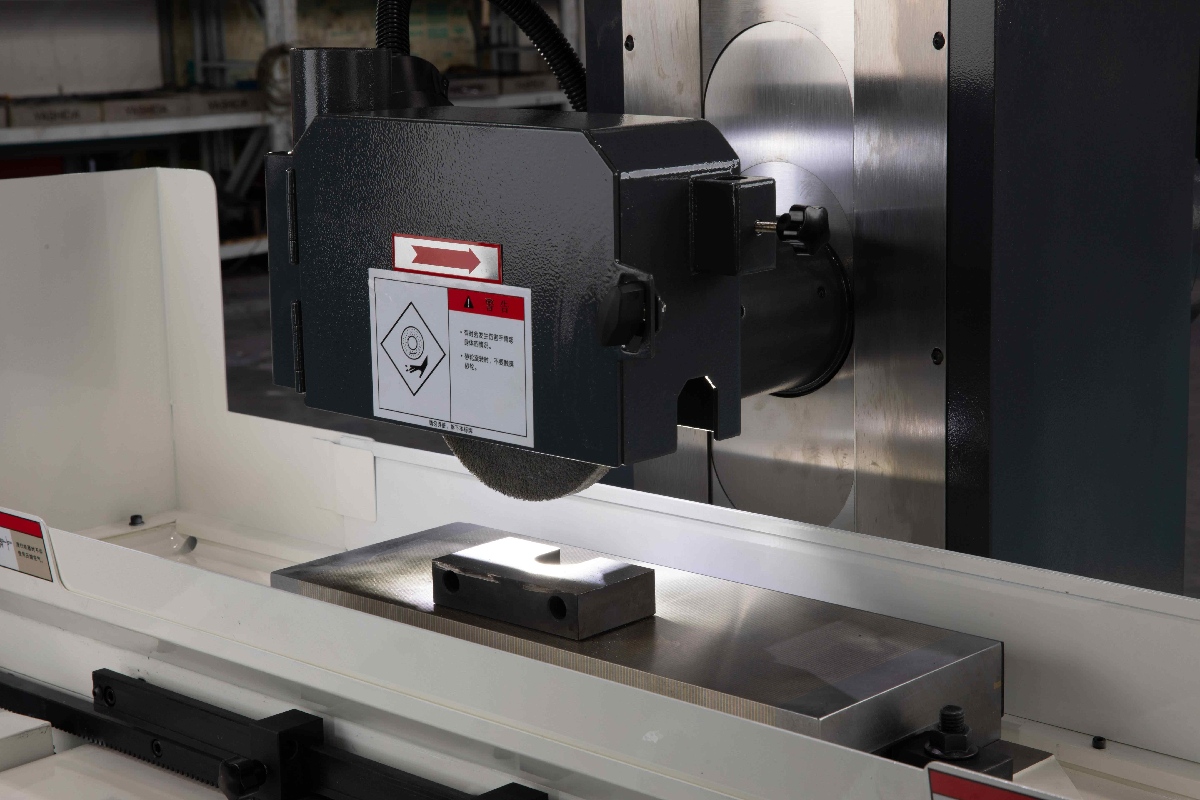

Surface grinding machine

In surface grinding, machining accuracy depends not only on the grinding machine itself but also on the workpiece clamping method.

Among these methods, the Electromagnetic Chuck, as the most commonly used clamping device, has a direct impact on machining accuracy.

Even with a high-Precision Grinding Machine, if the chuck is in poor condition or used improperly, it can lead to flatness errors, dimensional deviations, and surface defects.

I. What is an Electromagnetic Chuck?

An electromagnetic chuck is a clamping device that uses magnetic force to attract workpieces, providing a stable support surface and enabling rapid clamping.

Electromagnetic chucks are made based on the principle of the magnetic effect of electricity.

A coil is wound around an iron core made of stacked silicon steel sheets. When current flows through it, the iron core is magnetized, forming a magnetic electromagnet.

If an iron block is attracted to the iron core, it will be immediately attracted.

Electromagnetic chucks use DC power and are characterized by stability, strong attraction, and low residual magnetism.

Electromagnetic chucks can be classified into ordinary suction chucks and high-strength suction chucks.

Ordinary electromagnetic chucks have a suction force of 10-12 kg/cm², while powerful electromagnetic chucks have a suction force of no less than 15 kg/cm².

Electromagnetic chucks can be categorized by application, such as those for grinding machines, milling machines, planers, and knife grinding machines.

II. The Impact of Electromagnetic Chucks on Precision

The chuck acts as a "reference surface" for the workpiece, and its condition directly determines the machining effect.

Key influencing factors include: chuck flatness, uniformity of magnetic force distribution, and machining process stability.

If the chuck surface is uneven, the workpiece cannot be evenly adhered to, leading to uneven removal during grinding and affecting flatness. Uneven magnetic force can also cause uneven local stress on the workpiece, resulting in errors.

Poor electromagnetic chuck holding precision directly leads to workpiece displacement and deformation during machining, affecting product dimensional accuracy and surface quality.

Especially in precision machining and mold manufacturing, where precision requirements are extremely high, insufficient holding precision can cause a large number of workpieces to be scrapped, increasing production costs and reducing enterprise competitiveness.

Ordinary electromagnetic chucks, due to their low working surface machining accuracy and uneven magnetic circuit distribution, are prone to uneven local force when holding workpieces, leading to slight deformation or displacement of the workpiece and failing to meet the requirements of high-precision machining.

III. Core Parameter: Suction Force

Suction force is the core performance parameter of the chuck and needs to be calculated comprehensively based on the workpiece material, size, and machining load.

For ordinary steel workpieces, electromagnetic chucks are recommended, with standard suction forces reaching 15-25 N/cm², capable of firmly holding large workpieces weighing over 100 kg.

For non-ferromagnetic materials such as aluminum and copper, permanent magnet chucks are a better solution, achieving current-free adsorption through magnetic field focusing technology, avoiding scratches on the workpiece surface.

It is worth noting that in precision machining scenarios, extra attention must be paid to the uniformity of suction force; insufficient local suction force may cause workpiece vibration during grinding, resulting in surface ripples.

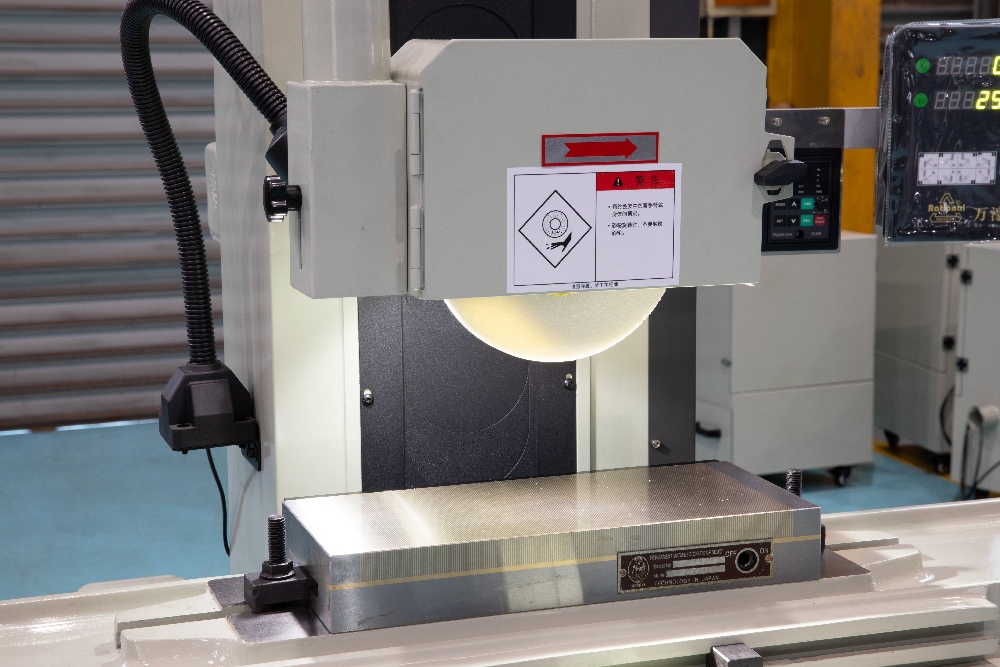

surface grinding

IV. Impact of Positioning Accuracy

The machining accuracy of surface grinders often depends on the positioning error of the chuck.

The design of the magnetic pole distribution in an electromagnetic chuck is crucial. Using bridge-type or staggered magnetic poles ensures a uniform distribution of magnetic lines of force, controlling positioning errors to within 0.005mm.

Permanent magnet chucks, through optimized arrangement of the magnetic conductors, achieve even higher repeatability. Furthermore, the flatness of the chuck's worktable also affects positioning performance.

New chucks must undergo a flatness test of 0.003mm/m; any localized dents or wear during use must be repaired or the chuck replaced promptly.

V. The Importance of Safety Protection

For electromagnetic chucks, safety protection design is paramount. High-quality products should have multiple protections: automatically cutting off power and releasing magnetic force after workpiece processing to prevent workpieces from flying out due to misoperation;

And an overheat protection device that automatically cuts off power when the coil temperature exceeds 80℃ to prevent burnout.

For permanent magnet chucks, care must be taken to prevent magnetic materials from entering between the chuck and the workpiece, as this may lead to magnetic attenuation.

In actual operation, it is recommended to regularly check the insulation resistance of the chuck (≥2MΩ) and insulate the electromagnetic coil to ensure long-term stable operation.

VI. Common Problems and Solutions

Problem	Cause	Solution
Poor flatness	Uneven chuck	Grind the chuck
Workpiece movement	Insufficient magnetism	Check magnetism
Workpiece deformation	Excessive magnetism	Use pads
Surface defects	Poor contact	Clean the surface

VII. Practical Applications

In practical applications, electromagnetic chucks are compatible with various precision machining equipment such as milling machines, grinding machines, and machining centers.

Whether for small precision parts or large mold workpieces, they can achieve precise holding, ensuring that the workpiece does not shift or deform during processing, improving machining accuracy by 15%-20%.

Conclusion

As a dedicated accessory for surface grinders, electromagnetic chucks are widely used in precision machining fields such as mold manufacturing, aerospace, and automotive parts.

Their disk adsorption installation method requires no modification to the machine tool structure and can be quickly adapted to different types of grinders.

In thin-walled part machining scenarios, the adjustable magnetic force function prevents workpiece deformation through graded adsorption, improving the yield rate by more than 20%.

Electromagnetic chucks are an important factor affecting the accuracy of surface grinding.

Through proper selection and correct use, machining quality and stability can be effectively improved.

YASHIDA automatic grinding machines come standard with free magnetic chucks, committed to providing customers with the best grinding experience.

If you wish to improve grinding accuracy, please contact us for professional solutions and equipment recommendations.

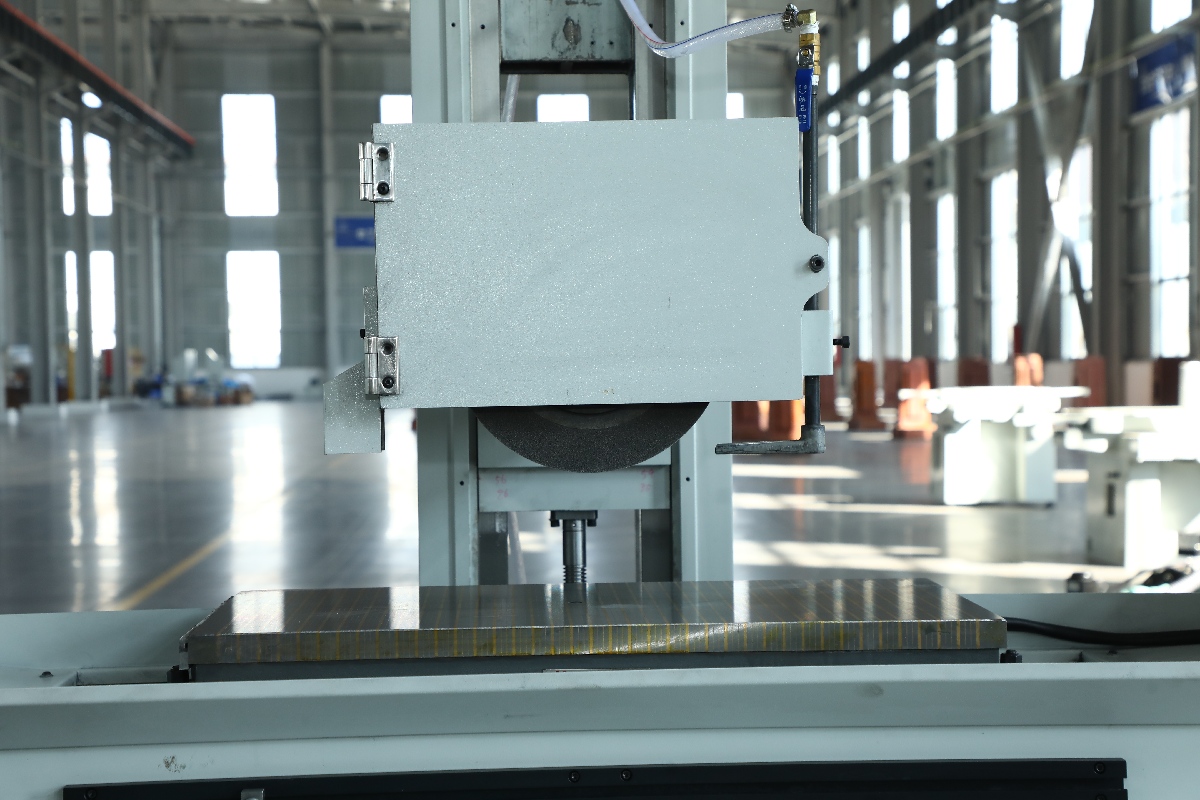

surface grinder
