Introduction

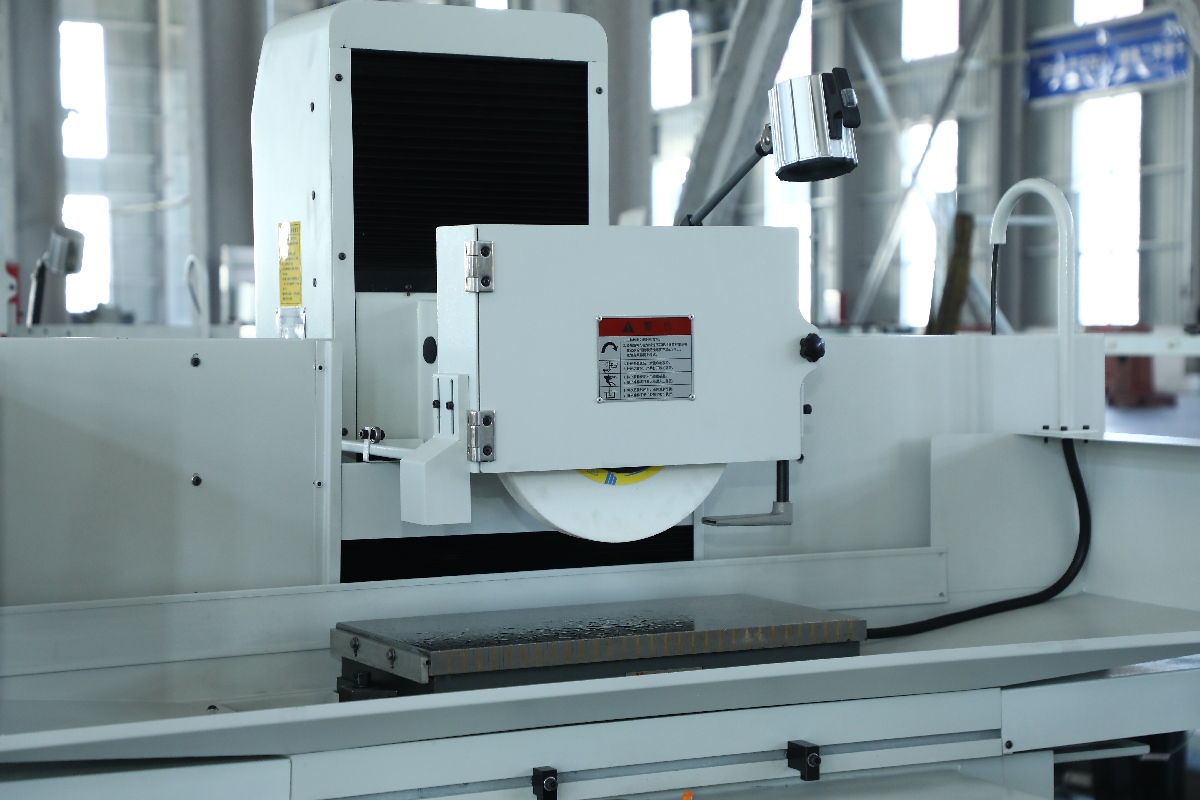

surface grinder

In surface grinding and centerless grinding, the rational selection of machining parameters is crucial for achieving high-quality machining.

Different materials (such as hardened steel, stainless steel, aluminum alloys, and cemented carbide) have different physical properties, requiring different grinding strategies.

Improper parameter selection can lead to poor surface quality, rapid wheel wear, severe thermal damage, and low machining efficiency. Therefore, optimizing grinding parameters for different materials is essential.

I. Key Grinding Parameters and Their Influence

Grinding Speed: Increasing this can improve efficiency, but excessive speed can easily lead to burning or deterioration of surface roughness;

It needs to be matched with the workpiece material and wheel performance.

Feed Rate: Excessive feed rate increases grinding force and reduces surface quality; it should be reduced or even "feedless finishing" should be used during finish grinding.

Depth of Grinding: Excessive depth can easily cause deformation and burning; thin-walled or brittle materials (such as ceramics) require shallow grinding in layers.

grinding wheel Characteristics:

Abrasive: Alumina is suitable for steel, silicon carbide is suitable for cemented carbide, CBN/diamond is used for superhard materials.

Grit: Coarse grit is used for rough grinding, fine grit (F12–F16) is used for finish grinding to achieve low surface roughness.

Bond: Ceramic bond is heat-resistant, resin bond is suitable for precision grinding.

Hardness: Soft grinding wheels are selected for grinding hard materials (good self-sharpening properties), and hard grinding wheels are selected for grinding soft materials.

Cooling and Lubrication: Adequate cooling prevents thermal damage; MQL (Minimum Quantity Lubrication) reduces contamination and improves surface quality.

The main parameters affecting grinding performance include: wheel linear speed, feed rate, depth of cut, wheel type, and cooling method.

These parameters need to be adjusted according to the material properties.

II. The Influence of Material Properties on Machining

Different materials exhibit significantly different machining performance:

Quenched steel: High hardness but stable

Stainless steel: High toughness, prone to overheating

Aluminum alloy: Soft and prone to clogging the grinding wheel

Carbide: Hard and brittle

Understanding these characteristics is fundamental to parameter optimization.

III. Recommended Parameters for Common Materials

Material	Grinding Wheel Speed	Feed Rate	Depth of Cut	Key Points
Quenched steel	Medium-high	Medium	Small	Prevent burns
Stainless steel	Medium	Low	Small	Temperature control
Aluminum alloy	High	High	Medium	Prevent clogging
Carbide	Low-medium	Very low	Very small	Prevent cracking

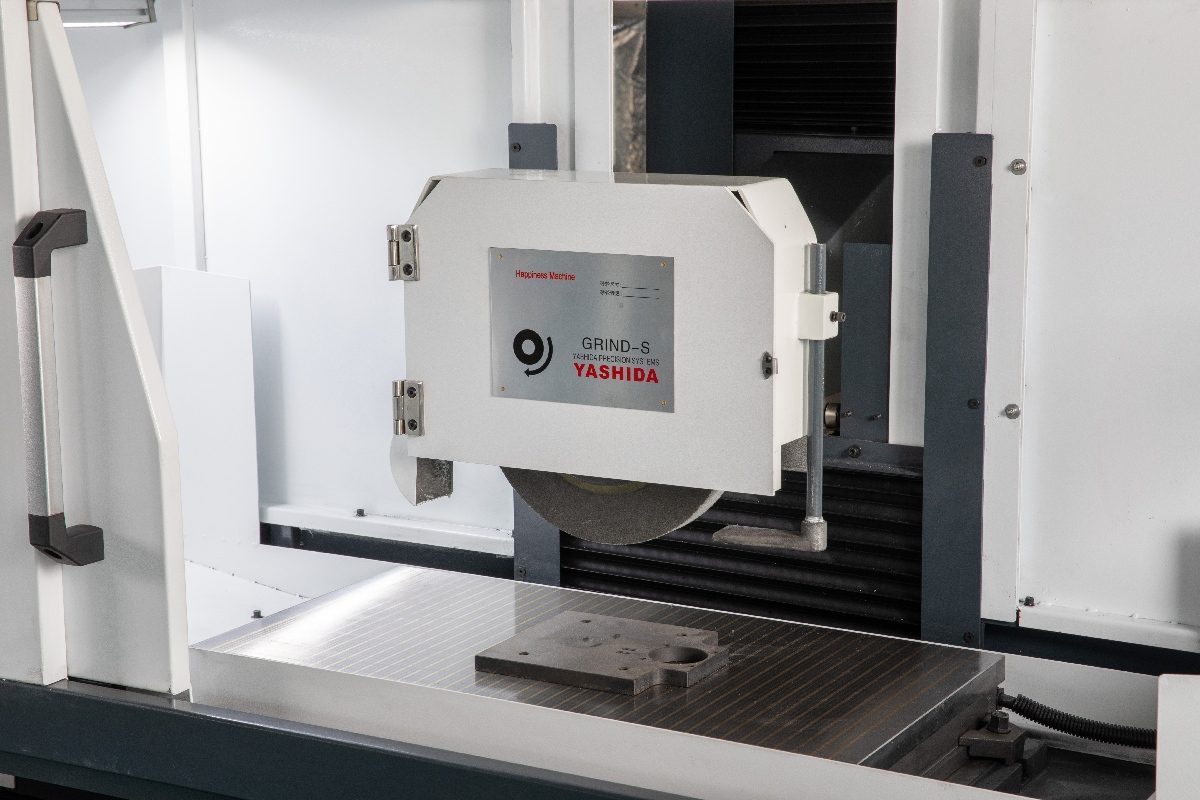

Surface grinding machine

IV. Optimization Strategies for Typical Materials

Ordinary steel (e.g., 45 steel, quenched steel)

Select white corundum or chromium corundum grinding wheels, medium grit size (F80–F120), medium hardness (H–L).

For finish grinding, grinding speed 60–80 m/s, feed rate 0.2–0.5 m/min, depth of cut 0.005–0.02 mm.

For high-hardness alloy steels (e.g., SKD11)

use CBN or diamond grinding wheels to avoid rapid wear due to wheel-material mismatch.

Reduce feed rate and depth of cut, use multi-pass grinding, and enhance cooling.

For hard and brittle materials such as ceramics

a horizontal spindle rotary surface grinder (line contact, low downforce) is necessary.

Control the depth of cut at 5–20 μm, use high wheel speed (>30 m/s), low feed, and forced cooling for chip removal.

Choose fine-grit wheels (F120 or higher) with resin bond to reduce the risk of chipping.

For difficult-to-machine alloys (e.g., Inconel 718)

optimize dressing parameters: dressing lead 50–450 mm/min, dressing depth 30–40 μm can reduce grinding force.

Use high-flow-rate coolant to prevent adhesion and clogging.

Optimization of Grinding Quenched Steel

Cutting depth and feed rate should be controlled to avoid grinding burn and maintain good cooling.

III. General Optimization Methods and Techniques

Experimental Design Method: Orthogonal experiments, signal-to-noise ratio (S/N), and variance analysis are used to determine the optimal parameter combination.

Intelligent Algorithms: Genetic algorithms and composite methods are used for multi-objective optimization (efficiency vs. quality).

Numerical Simulation: Predicting temperature and stress fields to guide parameter adjustments.

Wheel Dressing: Regular dressing maintains wheel sharpness; a smaller dressing lead results in lower surface roughness.

Stage Grinding: Rough grinding (high efficiency) → Semi-finish grinding → Finish grinding (low parameters, maintaining quality).

IV. Precautions

Avoid "one-size-fits-all": Parameters need to be dynamically adjusted according to the specific material, equipment, and wheel type.

Balancing Environmental Protection and Cost: MQL can reduce coolant usage, but its effectiveness on specific materials needs to be verified.

Equipment Compatibility: Materials such as ceramics require specialized machine tools (e.g., horizontal spindle rotary table grinders), as ordinary vertical spindle grinders are prone to deformation.

For specific material parameter recommendations, please provide the material name and processing requirements (e.g., target Ra value, whether mass production is required) to further refine the solution.

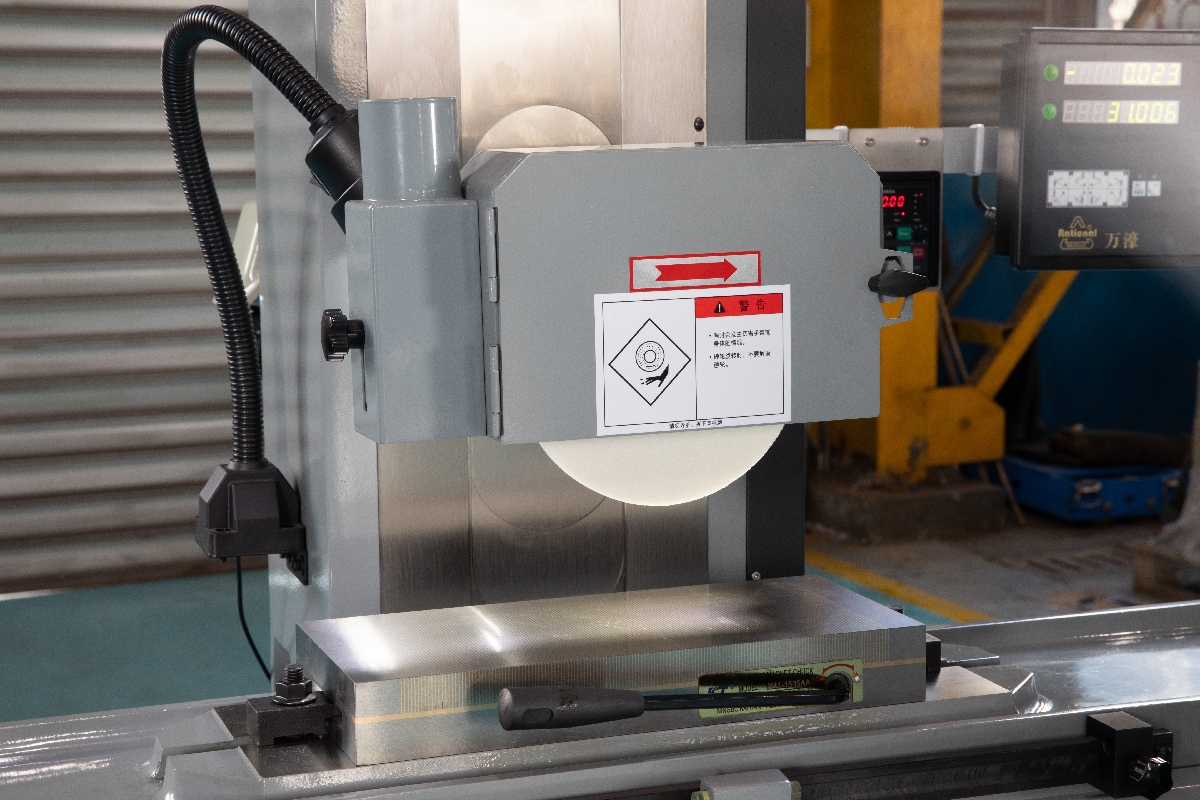

manual surface grinder

Conclusion

Optimization methods for surface grinding parameters of different materials require comprehensive adjustment based on material properties (e.g., hardness, toughness, thermal conductivity) and processing objectives (e.g., surface roughness, material removal rate, wheel life).

Optimizing grinding parameters for different materials is key to improving processing accuracy and efficiency. Reasonable matching of parameters and material properties can significantly improve production quality and economic benefits.
