Centerless Grinding Automated Production Line Solution

2026-04-22 09:55:31

Introduction

As the manufacturing industry moves towards higher efficiency and consistency, automation has become a key factor in enhancing competitiveness.

 In the field of centerless grinding, automated production lines can significantly improve production efficiency while ensuring high precision, representing an important upgrade direction for modern machining enterprises.

By integrating control systems, loading and unloading systems, and online detection technology, automated centerless grinding production lines achieve efficient and stable continuous production.

I. Why is Automation Necessary?

Centerless grinding is widely used in the mass production of shafts, rollers, and other parts, but traditional manual operation suffers from low efficiency and inconsistent quality.

 The advantage of automated production lines lies in reducing labor costs and improving processing consistency and production efficiency. In practical applications, automated production lines can improve efficiency by 30%–50%.

II. Core Components of an Automated Production Line

A complete automated centerless grinding line typically includes:

Core Modules

An automated production line is typically integrated from the following key modules:

1. Automated Loading/Unloading Unit

 Employs robotic arms, precision feeding mechanisms, or pusher devices to automatically load blanks and unload finished products.

 Actions are precisely controlled by the control system and can coordinate with grinding actions (such as tool retraction and feed) to ensure smooth flow.

Significantly reduces manual loading and unloading frequency, improving equipment utilization and production cycle time.

Achieves unmanned operation through robotic arms, conveyor belts, or gantry structures, reducing downtime, improving cycle time stability, and lowering labor costs.

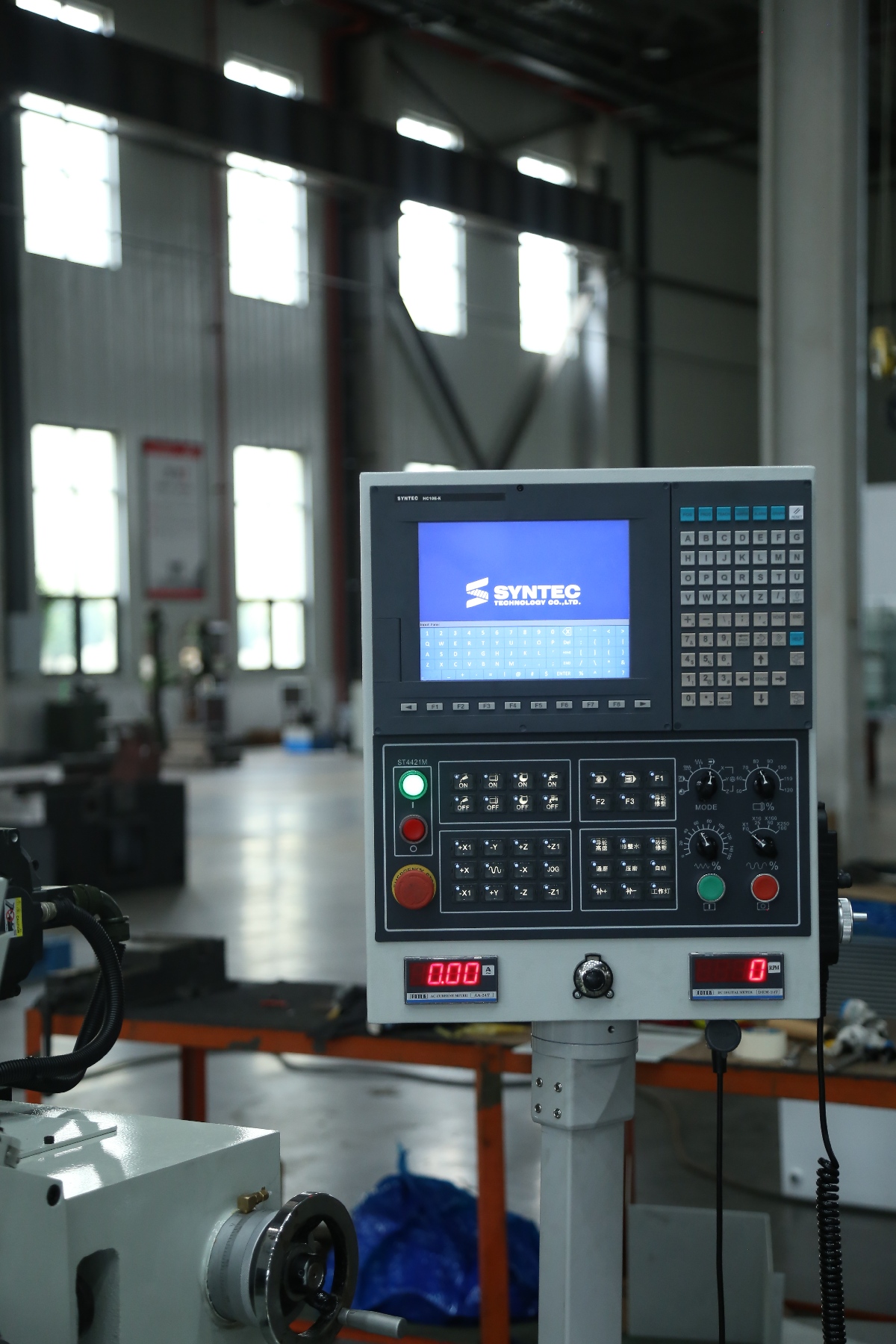

2. Intelligent Control System

 As the central hub of the production line, it integrates a PLC or CNC system to set and coordinate the entire grinding process (including loading/unloading, grinding parameters, wheel dressing, etc.).

 Equipped with a human-machine interface for easy operation process setup and monitoring.

It can integrate automatic alarm functions, such as reminding users to dress the grinding wheel after grinding a certain number of workpieces.

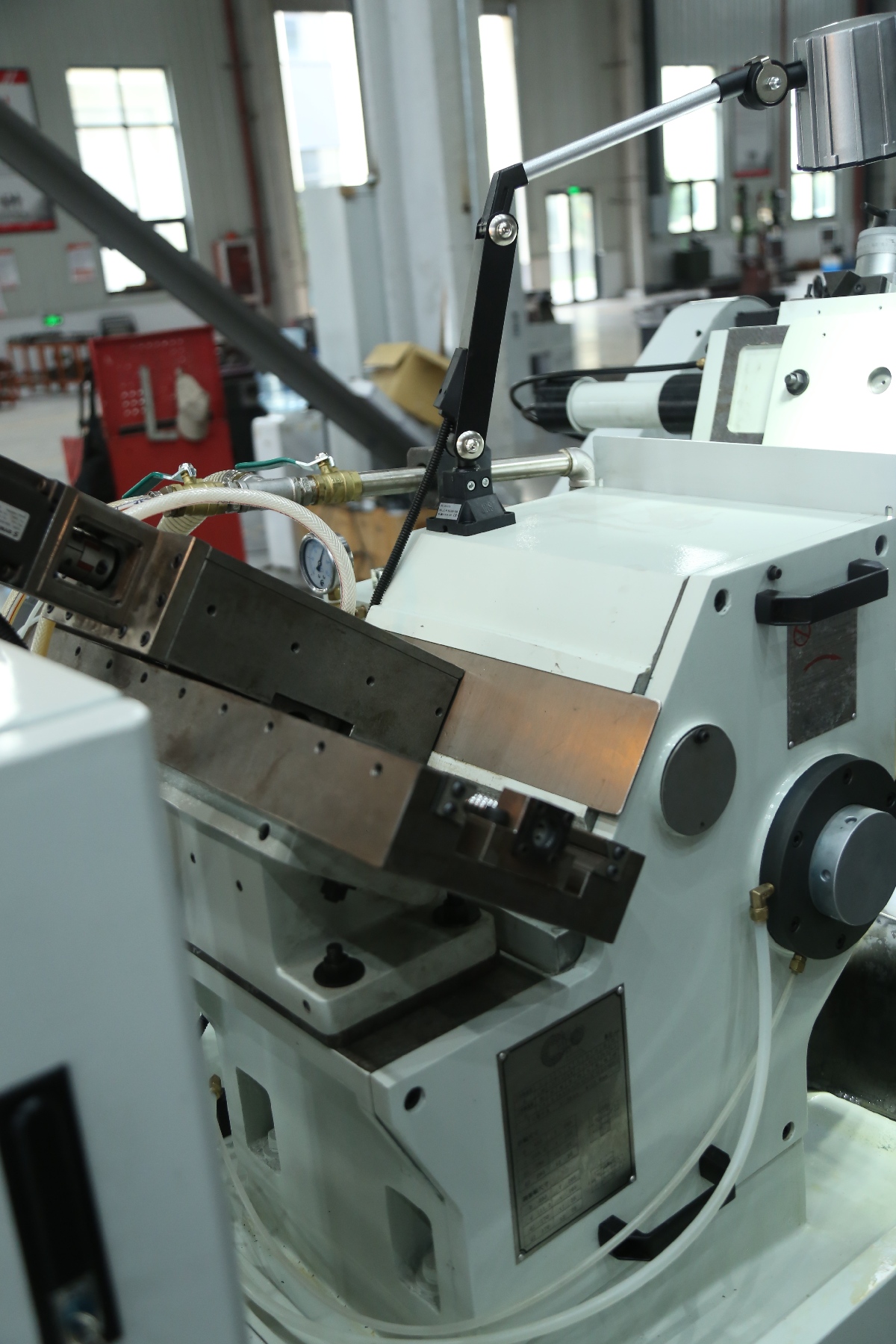

3. Centerless Grinding Machine

Depending on process requirements, it can select either direct-penetration grinding (suitable for high-precision, complex-shaped workpieces such as stepped shafts) or through-feed grinding (suitable for long, straight workpieces, with extremely high efficiency).

For mass production, a multi-machine line configuration is often used, connecting multiple centerless grinding machines in series to handle different processes such as rough grinding, semi-finish grinding, and finish grinding, achieving continuous automated processing from blank to finished product.

Machine tool adjustment is crucial, involving the precise calculation and setting of parameters such as workpiece center height, guide wheel dresser displacement, guide wheel tilt angle, and dressing angle, directly affecting machining accuracy and stability.

4. Online Inspection System

It can integrate a built-in measurement system or set manual inspection nodes to periodically sample and measure the dimensional accuracy of workpieces, serving as a basis for adjusting grinding parameters or dressing the grinding wheel.

 Stable automated operation helps reduce quality fluctuations caused by human factors and improves product yield.

Online inspection systems can monitor workpiece dimensions, roundness, and surface quality in real time and automatically adjust processing parameters, thereby reducing the defect rate by 20%–40% and improving consistency.

5. Auxiliary and Support Systems

Coolant Circulation and Filtration System: Separates grinding grit and metal powder, ensuring coolant cleanliness and recycling, which is crucial for improving the precision and surface roughness of fine-ground workpieces.

Automatic Grinding Wheel Dressing System: CNC centerless grinders can be equipped with this function to further enhance automation and processing consistency.

Tooling and Fixtures: Such as pallets, whose angles (β) and other parameters need to be adjusted according to the processing stage (rough grinding/fine grinding) and workpiece requirements to optimize precision indicators such as cylindricity.

III. Advantages of Automated Centerless Grinding Production Lines

Significantly Improved Production Efficiency: Automated loading and unloading and multi-machine interconnection reduce downtime between processes, enabling near-continuous equipment operation.

For example, a single automated centerless grinder can process 4-6 workpieces per minute, and multi-machine operation can significantly reduce the average processing time per piece.

Stable and consistent processing quality: Intelligent control and reduced human intervention ensure the stability of process parameter execution, making it particularly suitable for mass production of automotive parts, precision transmission components,

and energy equipment shafts, where consistency requirements are high.

Flexibility and adaptability: Automated systems can adapt to the production needs of different workpiece specifications by adjusting the control system program and some tooling, making changeovers relatively convenient.

Reduced labor intensity and reliance on manpower: Operators' main responsibilities shift to process monitoring, quality management, and timely material replenishment/receiving, allowing human resources to focus more on higher-value activities.

Extended effective production time: High system reliability helps achieve longer unattended or minimally staffed production operations.

IV.Key Technical Considerations and Adjustment Points

When implementing a multi-machine automated production line, the following technical aspects require focused attention:

Machine Tool Foundation Status Guarantee: Ensure the machine tool feet are stable and level, the grinding wheel and guide wheel are well dynamically balanced, and the spindle clearance and hydrostatic guide rail lift values meet requirements, laying the foundation for high-precision grinding.

Multi-Machine Line Process Planning:

Grinding Allowance Allocation: Grinding allowances must be rationally allocated between rough grinding, semi-finish grinding, and finish grinding processes.

For example, in the rough grinding to semi-finish grinding unit, the grinding allowance for the first machine can be set to 0.15-0.30mm, and for the second machine, 0.10-0.20mm.

Grinding Wheel Selection: Based on the workpiece material and heat treatment status, ceramic grinding wheels are typically selected. For grit selection, 70# or 80# grit can be used for rough grinding,

100# for semi-finish grinding, and 100# or 120# for finish grinding. Parameter Adjustment: Precise calculation and adjustment of workpiece center height, guide wheel dressing pen displacement, guide wheel tilt angle,

and dressing angle are crucial for ensuring smooth through-feed grinding and achieving the required precision.

Potential for Automation Retrofitting of Existing Equipment: For equipment with a long service life, adding automated operating stations, robotic arms, or measurement systems can significantly improve its production capacity and automation level.

V. Comparison of Manual and Automated Operations

VI. Typical Application Scenarios

This solution is particularly suitable for high-volume, high-consistency production needs in the following fields:

Automotive Parts Manufacturing: Various drive shafts, pins, etc.

Precision Machinery and Transmission Components: Shaft parts required by machine tools, agricultural machinery, shipbuilding, and other industries.

Energy Equipment Manufacturing: Precision rotating parts such as wind turbine drive shafts and core components of pumps and valves.

Medical Precision Parts: Medical equipment, surgical instruments, high-precision tools.

In conclusion, the centerless grinding automated production line solution, through modular integration and intelligent control, achieves a comprehensive improvement in processing efficiency, quality stability, and production flexibility.

It represents a crucial technological path for modern manufacturing towards intelligent and efficient production.

Automated centerless grinding production lines are a key solution for improving production efficiency and quality stability.

Through rational planning and technology integration, enterprises can significantly enhance their competitiveness and achieve intelligent manufacturing upgrades.

YASHIDA provides complete automated production line upgrade solutions for Centerless Cylindrical Grinding machines.

If you plan to upgrade your centerless grinding automated production line, please contact us for customized solutions and technical support.
