In surface grinding, machining accuracy and surface quality are influenced by various factors, such as machine tool rigidity, machining parameters, and grinding wheel condition. Among these, spindle accuracy is one of the most critical yet often overlooked factors.
The spindle directly drives the grinding wheel's rotation, and its running accuracy is directly reflected on the workpiece surface, making it a core factor determining grinding quality.

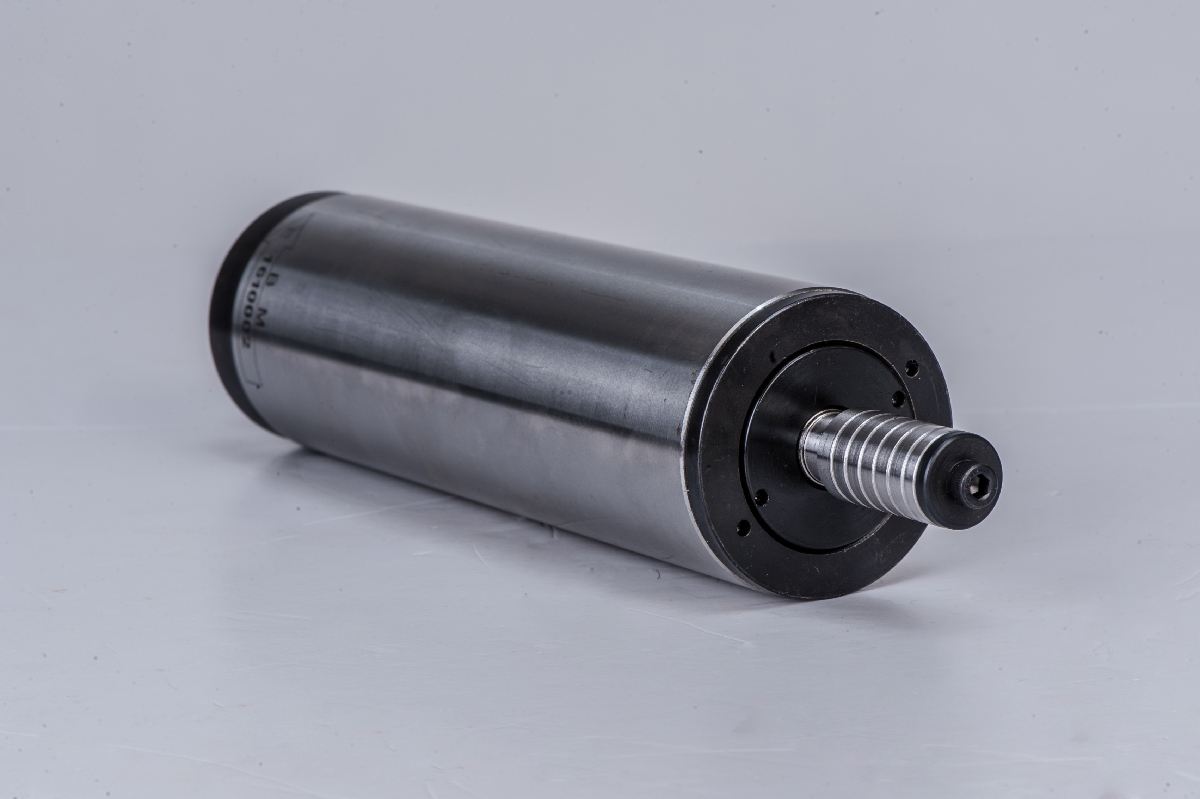

The spindle accuracy of a surface grinder refers to the axial and radial runout of the spindle during rotation. This accuracy is generally expressed as the maximum value of these two values.
In mold processing, the spindle accuracy of a surface grinder is a crucial parameter, as its accuracy level directly determines the accuracy and quality of the machined parts.
Spindle accuracy is typically measured by the following indicators: radial runout, axial runout, and rotational stability. In high-precision surface grinders, spindle runout is usually controlled within 1–2 μm.
Spindle accuracy is closely related to the surface roughness, parallelism, perpendicularity, and roundness of the machined surface.
A high-precision spindle ensures the grinding wheel remains stable during grinding, thereby reducing machining errors and improving workpiece accuracy and surface quality.
Conversely, low spindle precision leads to increased surface roughness, difficulty in controlling dimensional accuracy, and may even cause workpiece deformation.
Spindle precision determines the contact stability between the grinding wheel and the workpiece. Spindle deviation results in uneven grinding, affecting machining quality.
The impact of different spindle conditions on machining results is as follows:
| Spindle Condition | Machining Effect |
| High Precision | Smooth, uniform surface |
| Minor runout | Slight waviness |
| Large deviation | Poor flatness and rough finish |
Low machine tool spindle precision easily leads to high surface roughness, and in severe cases, it may be impossible to achieve the required surface roughness.
Because of spindle instability, tool vibration and varying degrees of axial and radial errors occur, which are directly transmitted to the workpiece surface.
This causes surface undulations and increased roughness. A stable spindle can achieve a smooth machined surface (Ra 0.2–0.4 μm).
The precision of the machine tool spindle directly affects the magnitude of errors on the machined surface.
Sometimes, grinding errors are more pronounced than cutting errors. For some high-precision machining processes, surface errors have an even more significant impact.
Spindle instability can cause uneven material removal, resulting in uneven surfaces and increasing flatness errors.
The precision of the machine tool spindle directly determines the quality of the machined surface.
Insufficient precision can lead to scratches, internal cracks, and in severe cases, surface deformation. Spindle precision is particularly critical in machining processes requiring flatness ≤0.002 mm.
Insufficient spindle precision can also easily cause vibration, further affecting machining quality, leading to surface chatter marks, reduced tool life, and increased noise during machining.
Different spindle types exhibit significant performance differences:
| Spindle Type | Characteristics |
| Rolling Bearing Spindle | Low cost, moderate precision |
| Hydrostatic Spindle | High rigidity, strong stability |
| Hydrostatic Spindle | High precision, low vibration |
High-end grinding machines typically use hydrostatic or hydrostatic spindles.
The main reasons why low machine tool spindle precision affects the quality of machined surfaces are as follows:
The cutting tool on the spindle is subjected to a certain load during cutting. This load generates a cantilever effect, causing natural frequency changes.
Once a certain critical point is reached, self-excited vibration occurs, leading to problems such as chatter marks and porosity on the machined surface.
Poor spindle rotation balance results in significant centrifugal force during high-speed operation, leading to increased vibration. Simultaneously, imbalance causes the Gerten phenomenon, increasing tool friction, increasing cutting force, and ultimately affecting the quality of the machined surface.
During use, the spindle and its supporting bearings are prone to wear. If maintenance and replacement are not timely, it can lead to spindle imbalance, affecting the quality of the machined surface.

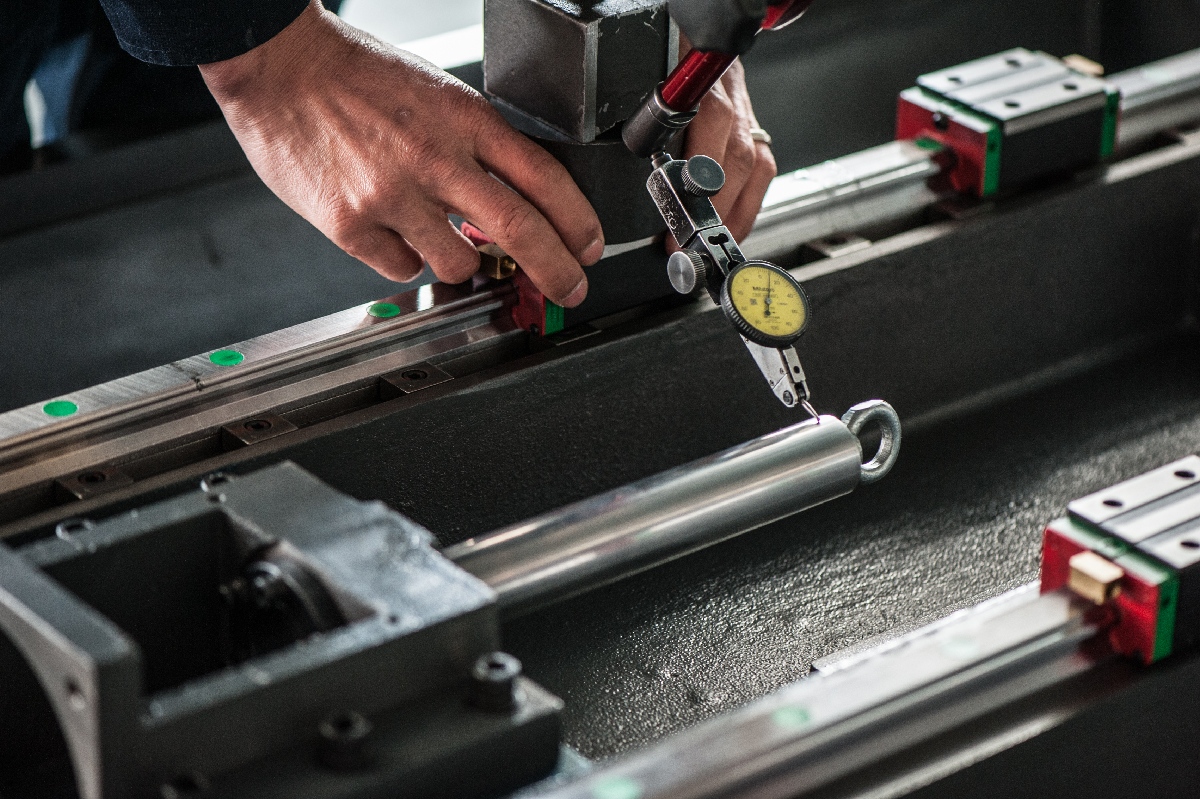

To maintain and improve spindle accuracy, a series of measures are required. First, regularly maintain and inspect the lubrication system, periodically check runout, and ensure the spindle operates under good lubrication conditions, avoiding overloading.
Second, maintain the balance of the grinding wheel, using professional equipment for dynamic balancing. Furthermore, optimize the clamping device, strengthening its rigidity and stability to ensure uniform clamping force.
Finally, conduct regular inspections, promptly checking the spindle's wear condition and rotational accuracy, replacing or repairing as necessary, and maintaining a clean machining environment.
Spindle accuracy is one of the core factors affecting the quality of surface grinding. Only by ensuring high-precision spindle operation can high-quality, high-stability machining results be achieved.
Manufacturers and users should prioritize the accuracy of machine tool spindles, performing regular maintenance to ensure spindle accuracy and improve machining quality and production efficiency.

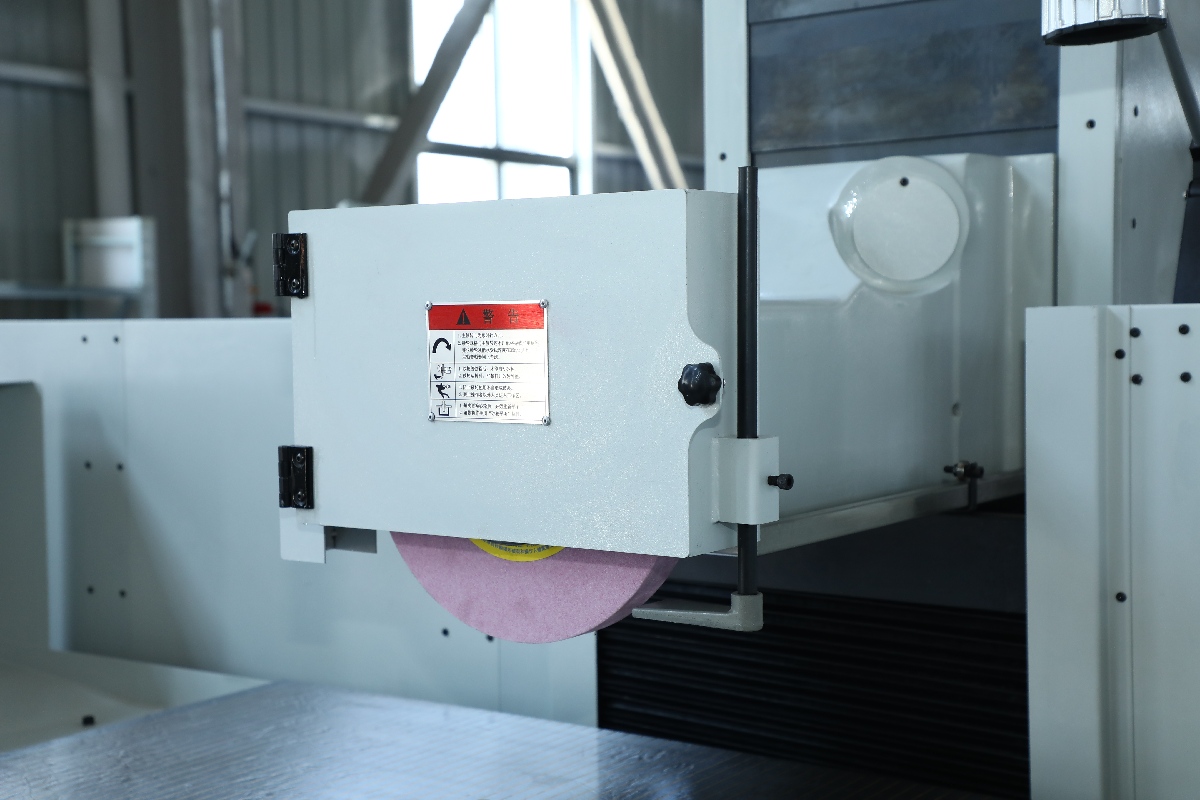

YASHIDA surface grinders utilize imported NSK spindles from Japan. The high-quality spindles ensure the grinder's precision and stability, guaranteeing customers high-quality surface grinding equipment.
