In the field of modern precision manufacturing, surface grinders have become indispensable core equipment for achieving high-precision machining.
Especially in the aerospace, mold manufacturing, medical device, and precision electronics industries, the requirements for dimensional accuracy and surface quality of parts are extremely high.
So, what level of precision can a high-precision surface grinder achieve? This article will provide an in-depth analysis and further information about surface grinders.

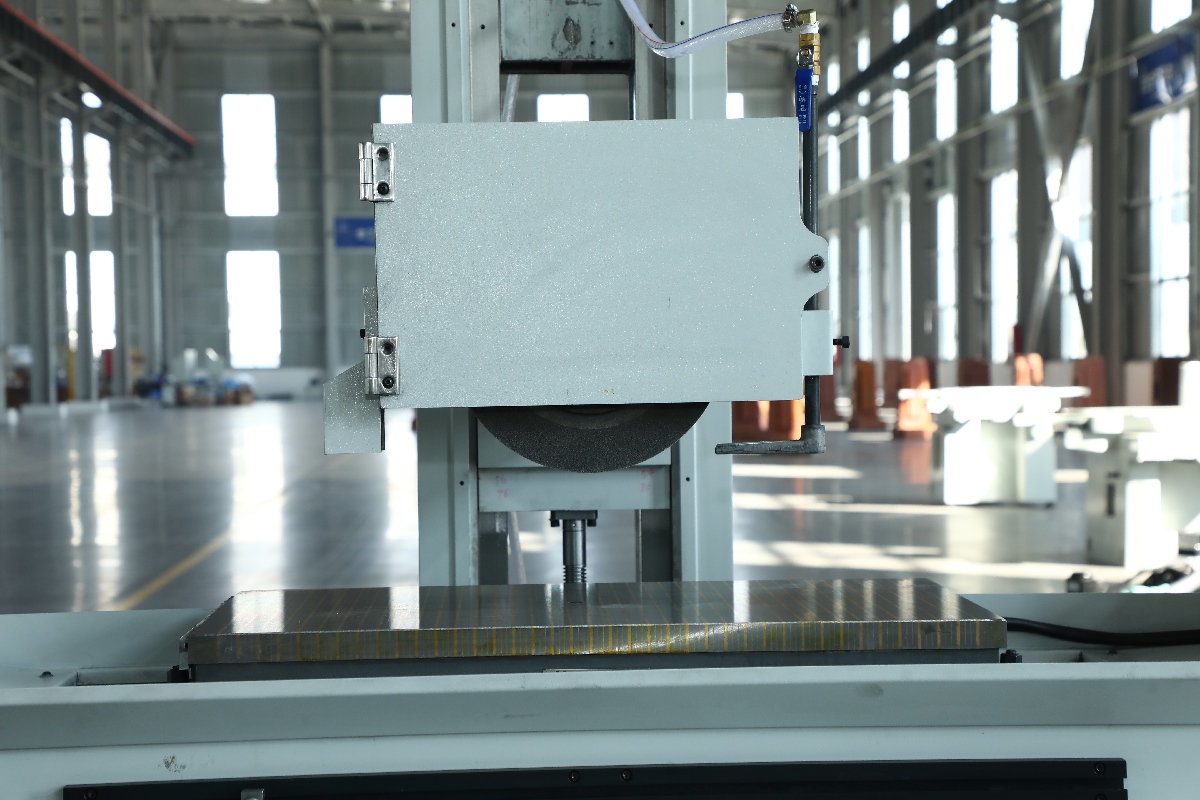

A high-precision surface grinder is a device that performs micro-cutting on the surface of a workpiece using a grinding wheel. It is primarily used to achieve: high flatness, high parallelism, and excellent surface roughness.
Flatness and parallelism are core indicators for measuring the quality of grinding machine machining, directly affecting assembly accuracy and service life.
According to ISO 2768 standards, the flatness and parallelism of precision grinding typically need to meet "medium (m-level)" or higher requirements.
The main unit for measuring these precisions is the micrometer (μm), an extremely small unit of length suitable for describing minute differences in precision machining.
Generally, high-precision grinders are equipped with a high-rigidity structure, a precision spindle system, and an advanced CNC system to ensure machining stability and repeatability. III. Precision Range of High-Precision surface grinding machines
High-end Surface Grinding Machines can typically achieve:
±1μm (micrometers) or even higher
In the ultra-precision field, ±0.5μm is achievable
General high-precision grinding machines: ≤2μm / 300mm
Ultra-precision equipment: ≤1μm / 300mm
Conventional precision grinding: Ra 0.2 ~ 0.4 μm
Precision Mirror grinding: Ra 0.05 μm or even lower
These indicators mean that modern high-precision surface grinding machines can already meet the pre-processing requirements of nanoscale applications.
High precision is not determined by a single factor, but is the result of the combined effect of multiple technologies:
High-precision hydrostatic spindles or precision rolling bearing spindles determine the stability of the grinding wheel operation.
Using hydrostatic guide rails or high-precision linear guide rails can effectively reduce friction and vibration.
Temperature variation is a crucial factor affecting precision, and high-end equipment typically incorporates a temperature control system.

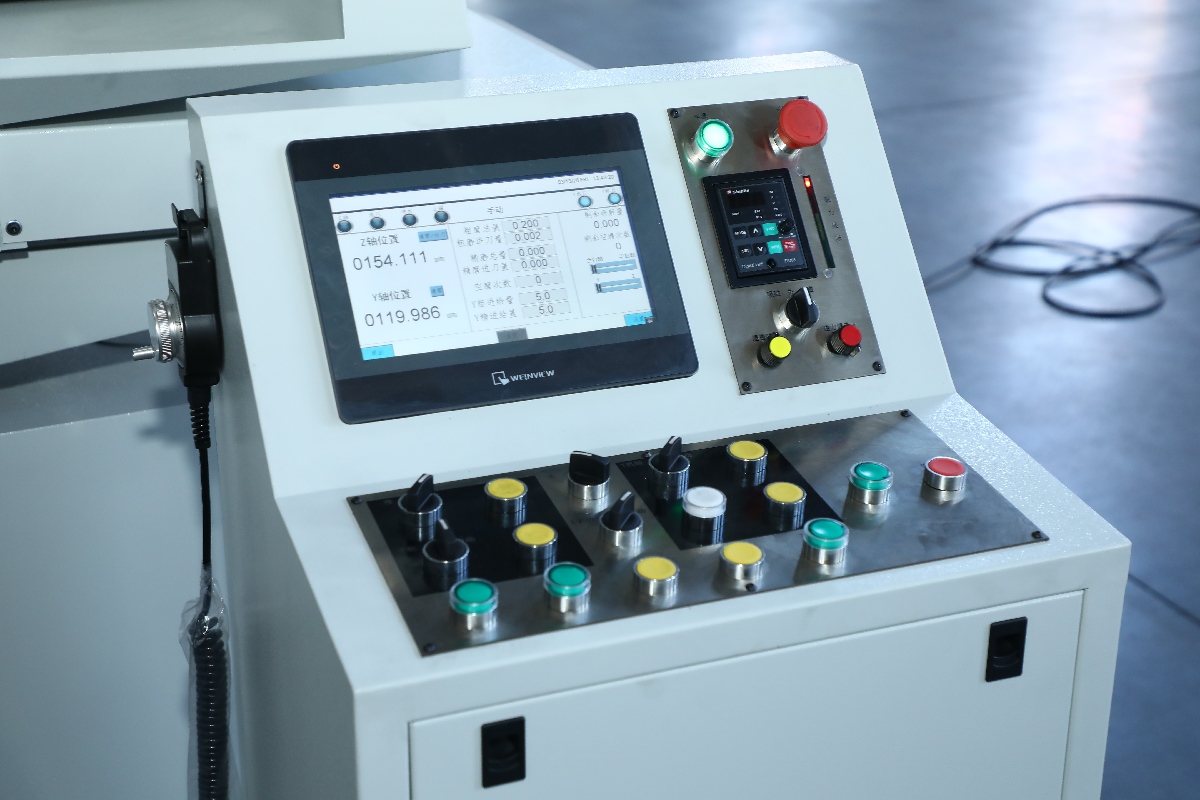

High-resolution control systems can achieve micron-level or even nanometer-level feed control.
As a brand specializing in high-end grinding equipment manufacturing, YASHIDA grinding machines possess significant advantages in precision control:
High-rigidity bed design reduces deformation
High-precision spindle system ensures stable grinding
Precision servo control enables micron-level feed
Optimized cooling and thermal balance system improves long-term machining stability

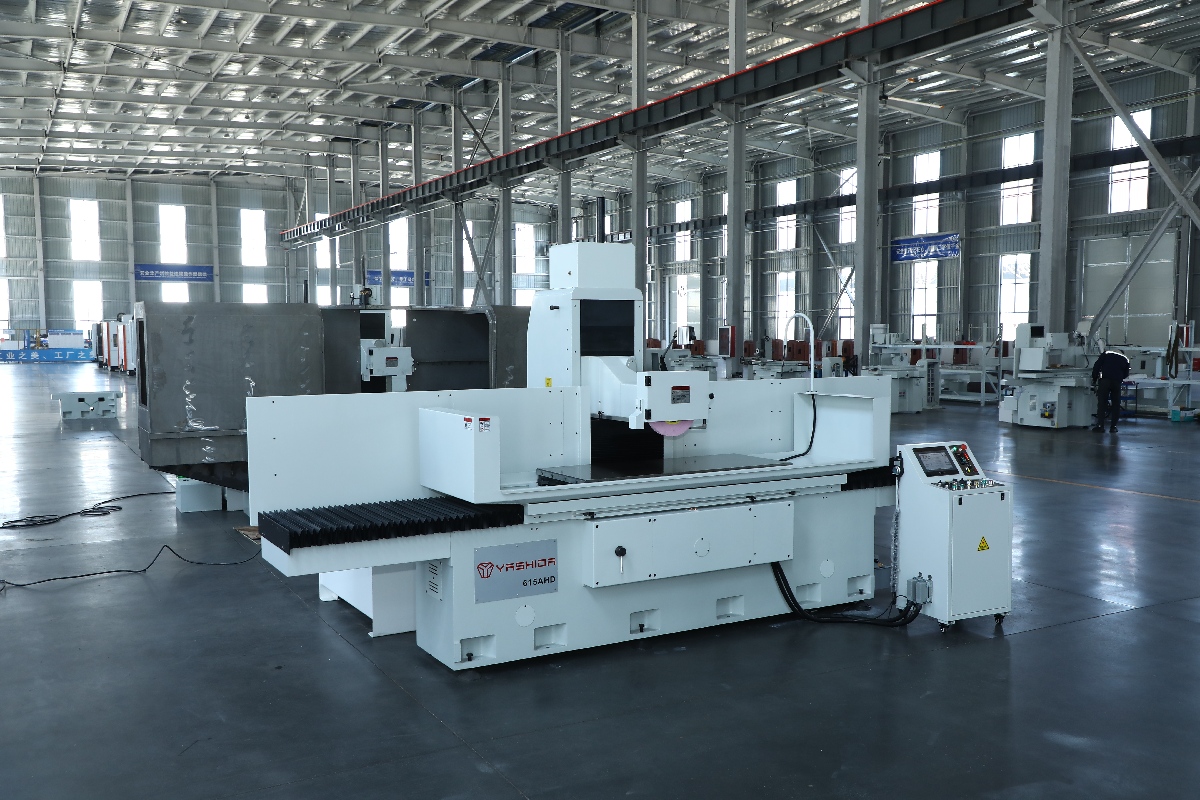

In practical applications, YASHIDA high-precision surface grinders can achieve:
Machining accuracy ≤3μm
Surface roughness Ra ≤0.2μm
Stable batch processing consistency
This gives them a strong competitive edge in mold making, precision parts, and automated manufacturing.
While high-end grinding machines possess excellent machining capabilities, various factors can influence machining accuracy during actual operation.
For example, the material properties, shape, and size of the workpiece; the selection and wear condition of the grinding tools; and the temperature, humidity, and vibration of the processing environment are all factors to consider.
To achieve the desired machining accuracy, these influencing factors must be comprehensively considered and effectively controlled.
1. Regularly calibrate the equipment: Use a laser interferometer to check the straightness of the grinding machine guideways (error must be <0.003mm/1000mm).
2. Optimize clamping methods: The magnetic chuck on the grinding machine needs to be demagnetized regularly to avoid workpiece deformation.
3. Staged processing: Combine rough grinding (leaving a 0.05mm allowance) + fine grinding (leaving a 0.005mm allowance) to improve efficiency.

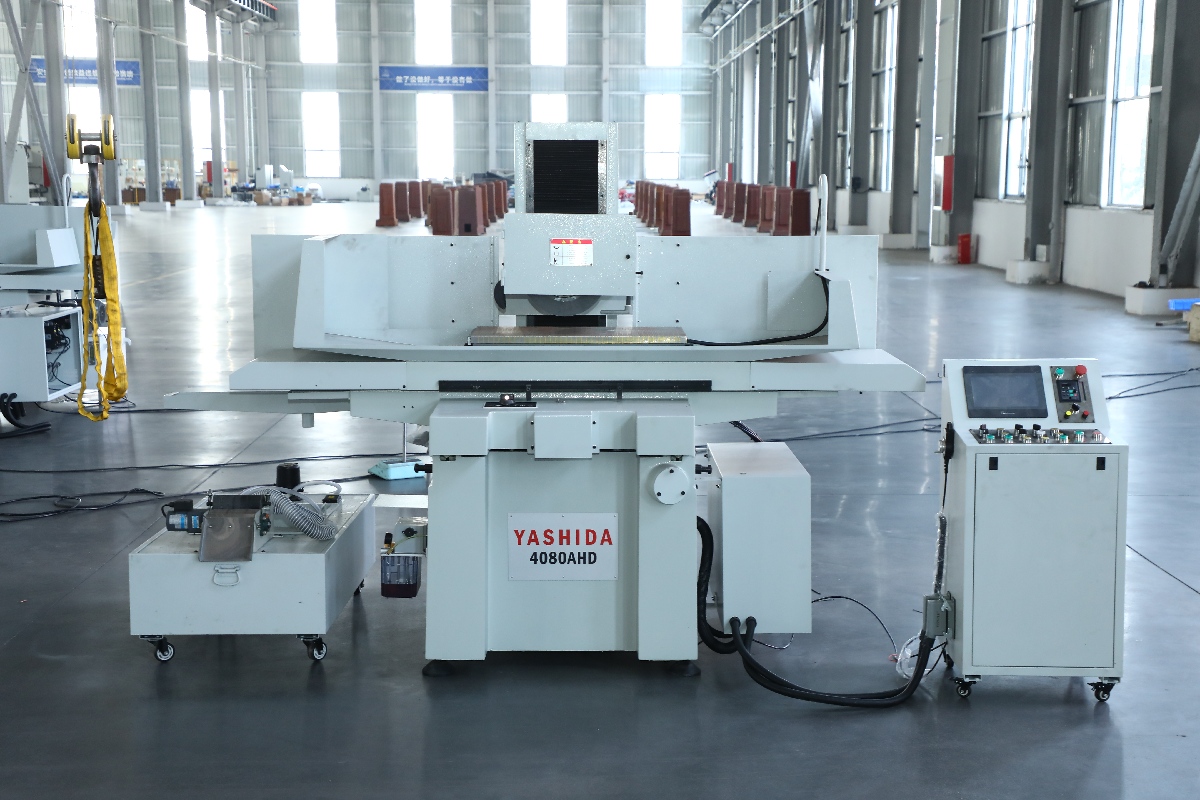

Case Study: An automotive parts company improved its flatness from 0.008mm to 0.002mm by switching to a YASHIDA high-precision CNC grinding machine 4080APS, increasing the yield rate by 15%.
With industrial upgrading, the demand for high-precision grinding will continue to grow.
Grinding machine precision is affected by multiple factors, but through scientific selection and process optimization, flatness and parallelism can both reach the micron level. In practical applications, a balance between cost and requirements must be struck when making the selection.
High-precision surface grinders can achieve machining accuracy at the micron or even sub-micron level. Through advanced structural design and control technology, brands like YASHIDA can provide customers with stable and reliable high-precision solutions.
If your production has extremely high precision requirements, choosing a stable, technologically mature high-precision grinder will directly determine product quality and market competitiveness.
