In the increasingly competitive mold manufacturing industry, precision and stability are not only technical requirements but also the foundation of product quality.
Even micron-level flatness errors or surface roughness issues can lead to product defects, assembly difficulties, and even reduced mold lifespan.
Against this backdrop, surface grinders have become an indispensable core piece of equipment in mold processing.
Compared to traditional machining methods, surface grinding offers higher precision and superior surface quality, making it an irreplaceable and crucial process in modern mold manufacturing.

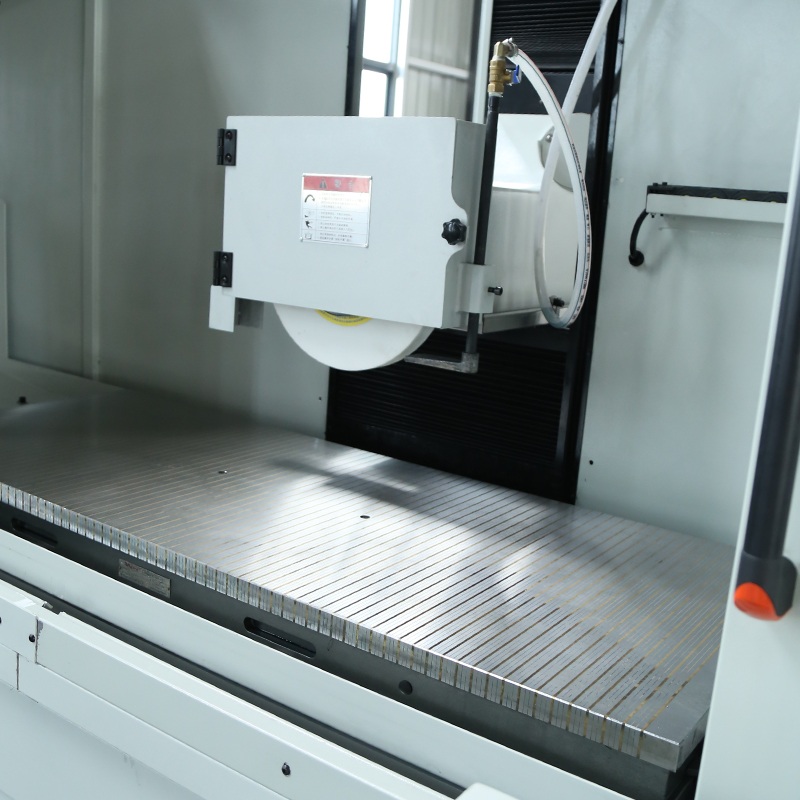

precision surface grinders are high-precision, high-efficiency machining equipment widely used in mold manufacturing.
They are primarily used for machining planar surfaces, enabling precision grinding of metal materials.
Mold manufacturing typically requires high-precision, high-surface-finish machining results, thus making surface grinders one of the most important pieces of equipment in mold manufacturing.
Mold components must achieve highly precise fits; otherwise, misalignment, accelerated wear, or even product defects may occur.
In actual production, mold processing typically requires meeting the following precision standards:
| Item | Common Requirements |
| Flatness | ≤ 0.002 mm |
| Parallelism | ≤ 0.003 mm |
| Surface Roughness | Ra 0.2–0.4 μm |
These precision requirements are difficult to consistently achieve using milling alone, while surface grinding can consistently and reliably meet these high standards.
The surface quality of the mold directly affects the quality of the final product. High surface roughness can lead to surface defects, difficulty in demolding, and even increased wear.
Surface grinding can significantly improve the appearance quality, demolding smoothness, and surface wear resistance of the product.
Data shows that when the surface roughness is optimized from Ra 0.8 μm to Ra 0.3 μm, the mold lifespan can be increased by approximately 20%–30%.
Mold materials are typically high-hardness quenched steel (HRC50 and above). In this case, ordinary machining methods are prone to thermal deformation or stress concentration.
Surface grinding, due to its small cutting amount and stable machining, can effectively reduce thermal deformation, maintain dimensional accuracy, and improve machining stability.
This is especially important for critical components such as cores and cavities.
Mold assembly quality highly depends on flatness and parallelism. If the base surface is uneven, even with high part machining accuracy, it is difficult to achieve a good fit.
Surface grinders can provide a uniform contact surface for the workpiece, precise assembly datum, and stable assembly performance.
In actual production, poor flatness can increase assembly adjustment time by more than 30%.

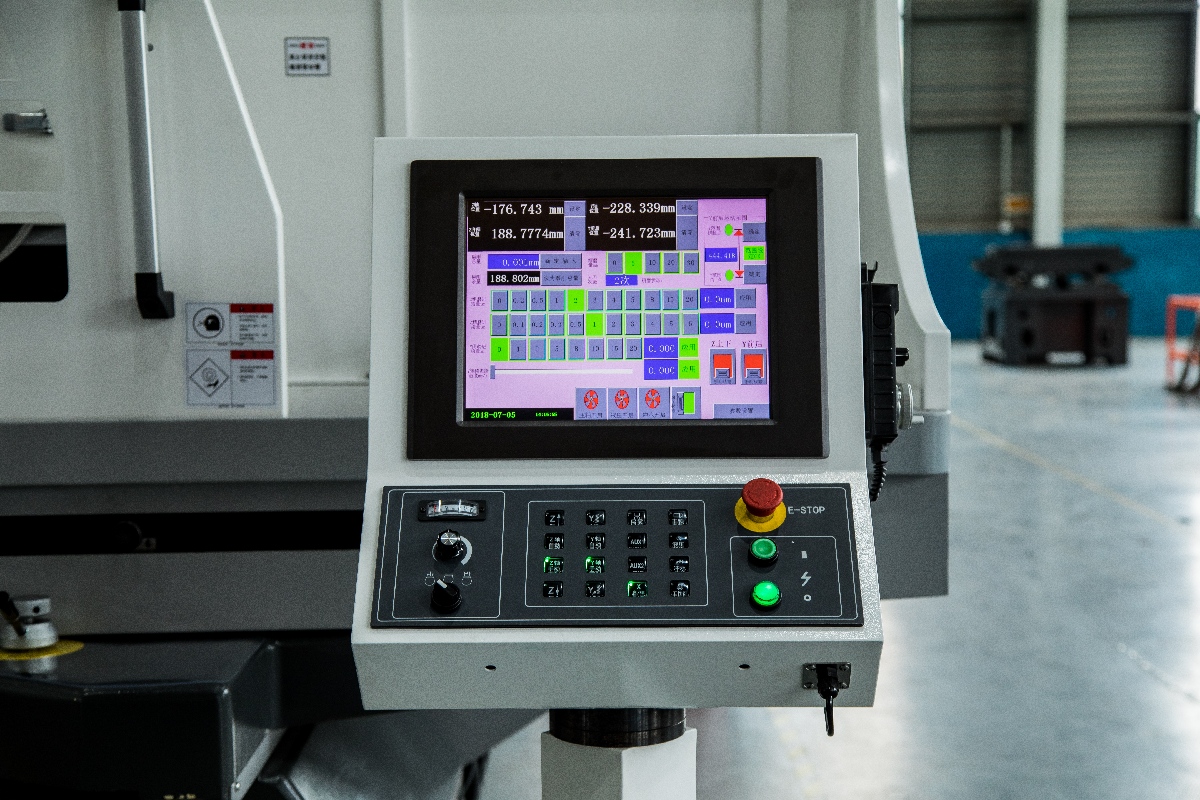

With the development of CNC technology, the role of modern surface grinders in the mold industry has been further enhanced.
| Comparison Items | Traditional Grinding Machine | CNC surface grinding machine |
| Accuracy Stability | Average | High |
| Repeatability | Low | Excellent |
| Automation Level | Low | High |
| Machining Efficiency | Medium | High |
CNC grinding machines not only improve accuracy but also significantly reduce labor costs and improve production consistency.
In the mold manufacturing process, surface grinding machines are used in several key stages, including mold base plate processing, precision insert processing, guide plate processing, and wear-resistant parts processing.
These parts have extremely high requirements for flatness, surface finish, and dimensional accuracy, and surface grinding is the best process to achieve these requirements.
Mold manufacturing typically involves the machining of complex parts, which often require high-precision dimensional control and surface finish. It ensures that all contact surfaces of mold parts achieve the required flatness and smoothness.
Fine grinding of mold parts not only eliminates minor burrs and errors generated during machining but also achieves the required surface flatness and smoothness, thereby improving the mold's service life and molding accuracy.
During mold manufacturing, multiple mating surfaces are often involved, such as the mating surfaces between the mold cavity and core, guide surfaces, and core-pulling surfaces.
These mating surfaces must maintain high parallelism and precise dimensions. Fine grinding ensures the mutual precision of these mating surfaces, preventing difficulties in mold release or poor molding due to improper fit.
This is especially important when producing precision plastic molds and die-casting molds.
During mold manufacturing, heat treatment is usually required to improve hardness and wear resistance, resulting in a hardened layer on the mold surface.
This hardened layer treatment typically significantly increases the surface hardness of the workpiece, making it difficult for traditional cutting methods (such as turning and milling) to meet precision requirements.
Precision surface grinders have strong hardened layer grinding capabilities, enabling precision machining of these hardened mold parts, ensuring that the hardened workpiece still achieves the required precision and surface quality.
Surface grinders also play a crucial role in mold repair and remanufacturing. As molds age, many parts may experience wear, corrosion, or deformation.
Using surface grinders, these parts can be precisely repaired, restoring their original dimensions and surface quality. Grinding machines can evenly remove worn areas and restore a smooth, flat surface, thereby extending the mold's lifespan.
High-Precision Surface Grinding machines play a vital role in mold manufacturing. They not only provide high-precision machining results, ensuring that mold parts meet requirements for dimensions, flatness, and surface finish, but also facilitate mold repair and remanufacturing.
The role of surface grinders in mold manufacturing is not only reflected in machining accuracy but also in improving overall production quality and efficiency.
They are a crucial guarantee for achieving high-quality mold production and an indispensable core piece of equipment in modern manufacturing.
YASHIDA offers many surface grinder models suitable for abrasive processing, such as the 525CNC, 3060AHD, and 450I.
Recommended Models:
YASHIDA 525CNC CNC Surface Grinding Machine
YASHIDA 3060AHD automatic surface grinding machine
YASHIDA 450I manual surface grinding machine
