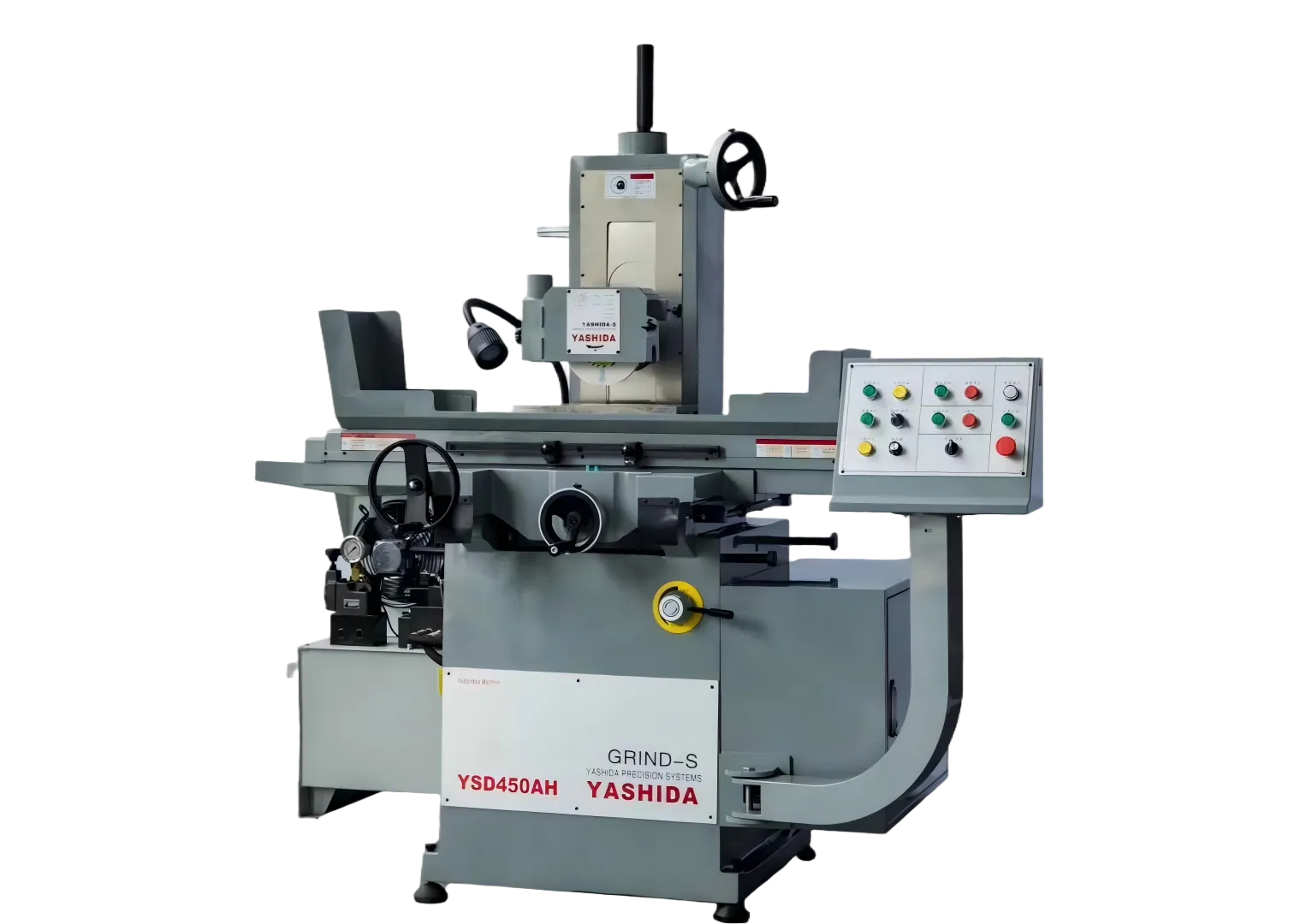

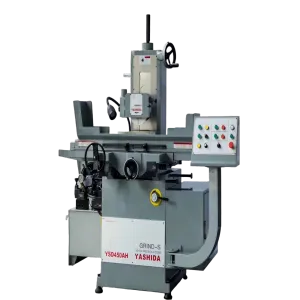

> 450AH High-precision Automatic Surface Grinding Machine
Left And Right Hydraulic Drive、Front And Rear Stepper Drive.
High Precision Within 0.003mm.
Super Quiet,Unique Hydraulic Technology ,Protect Staff And High Precision Operation.
Save Manpower,Before And After Automatic Feed,Before And After The Motor Unique Memory Function ,Easy to Operate.
With magnetic disk adsorption or special fixtures, it can grind and process flat surfaces, cylindrical surfaces, angles, grooves, and other various part shapes and profiles.
price is only 1/2 of Japanese grinding machines
High-Precision Grinding
Flatness:0.003mm/300mm
Smoothness: RA0.25
Utilizing hand-scraping technology from Japan, master technicians with decades of experience significantly improve machine tool precision, stability, and lifespan through manual .

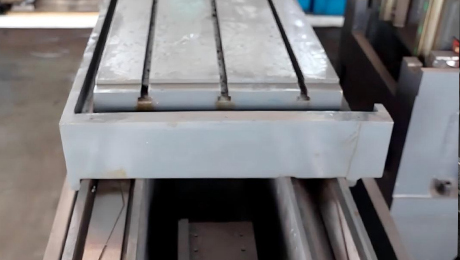

The use of flat and V-shaped guide rails prevents deformation and jamming during left and right movements, improving ductility and stability.
| Item | YASHIDA 450AH | |
| Table Working Area | 150mm*450mm | |
| Maximum Lateral Travel (Left and Right) | 460mm | |
| Maximum Longitudinal Travel (Front and Back) | 165mm | |
| Maximum Distance from Table Surface to Spindle Center | 350mm | |
| Maximum Load Capacity of the Table | 200kg | |
| T-slots on the Table | 14×1 | |
| Table Speed | 5-23m/min | |
| Table Guideways | V-Smooth Sliding Guideway | |
| Front and Rear Handwheel Feeding | one division | 0.02mm |
| One turn | 4mm | |
| Automatic Front and Rear Feeding | 0.1-8mm | |
| Fast Front and Rear Movement | 700mm | |
| grinding wheel Dimensions (Outer Diameter × Width × Inner Diameter) | 205×(6-20)×31.75mm | |
| Spindle Speed | 50HZ | 3000RPM |
| Maximum Travel | 420mm | |
| Up and Down Handwheel Feeding | one division | 0.01mm |
| One turn | 2 | |
| Automatic Feed Amount | / | |
| Up and Down Fast Travel Amount | 280mm/min | |
| Spindle Motor | 1.5×2(H*P) | |
| Hydraulic Motor | 1×4(H*P) | |
| Dust Extraction Motor | 1/2×2(H*P) | |
| Water Pump Motor | 1/8×2(H*P) | |
| Flatness Parallelism of the Machining Surface | 0.003mm/300mm | |
| Flatness of the Machining Surface | 0.003mm/300mm | |
| Surface Finish (or Surface Roughness) | Ra0.25 | |
| Standard accessories | ||
| Item | Unit（set） | |
| Flange | 1 | |
| Frequency Converter | 1 | |
| Magnetic Disk | 1 | |
| Optical Scale | 1 | |
| Grinding Wheel | 1 | |
| Coolant System / Dust Collector ( choose one for free) | 1 | |
Roundness: 0.002mm
Straightness: ≤0.003mm
Long-lasting
Durability
Japan's premier grinding machine manufacturer employs advanced technology suitable for machining medical guide wires, shafts, pins, rollers, sleeves, rings, slender shafts, thin-walled components, simple stepped shafts, and multi-stepped small shafts. Materials include ceramics, alloy steel, bearing steel, tool steel, mold steel, copper, aluminum, high-temperature alloys, and cemented carbide. Ideal for automotive parts, aerospace, and other industries.
Double V-shaped guide rails + dovetail groove structure, capable of ±5 degrees rotation with feed adjustment precision down to 0.001mm.
Hydraulic drive, continuously variable transmission, and smooth dressing significantly enhance straightness and surface roughness during grinding.
| Specifications | Unit | |
| Maximum Grinding Length | 450mm | |
| Maximum width of grinding | 150mm | |
| Distance from grinding wheel axis to workbench | 385mm | |
| Grinding wheel size (outside diameter * thickness * aperture) | 180*13*31.75mm | |
| Spindle speed (50Hz/60Hz) | 3000rpm/3600rpm | |
|
Every turn of the handwheel feeds Amount |
Table moves left and right | 100mm |
| Saddle fore-and-aft momentum | 5mm (0.02mm per scale) | |
| Up-and-down movement of grinding wheel | 1mm (0.005mm per scale) | |
| Grinding wheel motor (V3) | 1.1Kw1.5HP | |
| Vacuum motor | 0.4Kw | |
| Machine size (length * width * height) | 1400*920*1850mm | |
| Mechanical weight (approx.) | 750kg | |
| Specifications | Unit | |
| Maximum Grinding Length | 450mm | |
| Maximum width of grinding | 150mm | |
| Distance from grinding wheel axis to workbench | 385mm | |
| Grinding wheel size (outside diameter * thickness * aperture) | 180*13*31.75mm | |
| Spindle speed (50Hz/60Hz) | 3000rpm/3600rpm | |
|
Every turn of the handwheel feeds Amount |
Table moves left and right | 100mm |
| Saddle fore-and-aft momentum | 5mm (0.02mm per scale) | |
| Up-and-down movement of grinding wheel | 1mm (0.005mm per scale) | |
| Grinding wheel motor (V3) | 1.1Kw1.5HP | |
| Vacuum motor | 0.4Kw | |
| Machine size (length * width * height) | 1400*920*1850mm | |
| Quartz lamp | 1 lamp | |
