Surface Grinding Machine
- Automatic Surface Grinding Machine

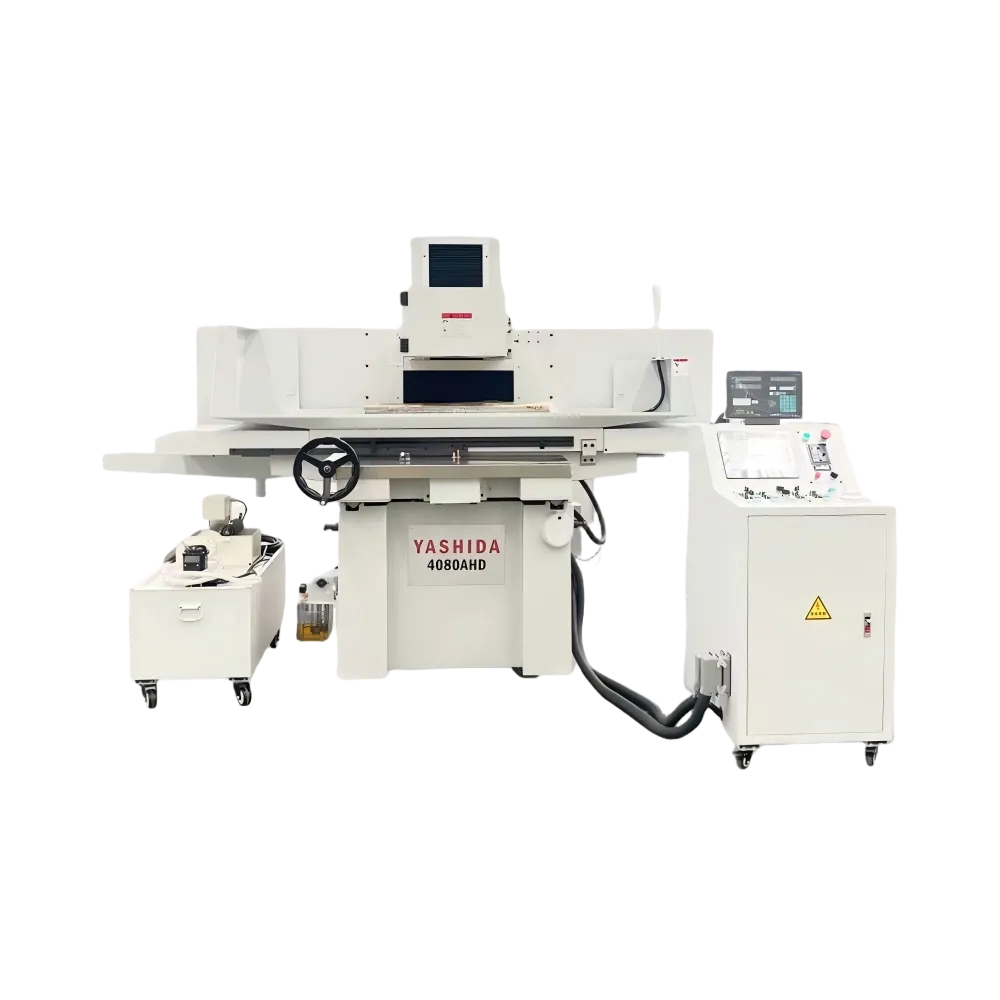

> 4080AHD High-precision Automatic Surface Grinding Machine
The machine tool is made of high-quality cast iron, ensuring a stable structure and high rigidity.
The X-axis uses an independent hydraulic station, which can achieve smooth X-axis movement.
The simple control system allows for fully automated grinding simply by setting the grinding parameters.
The Y and Z axes are driven by dual servo motors, with a minimum setting of 0.001mm.
The machine tool is equipped with a boat-shaped splash guard and a back gauge, providing excellent protection.
Accuracy: 0.003mm
Smoothness: ≤Ra0.63μm
Ten-year accuracy guarantee
An independent hydraulic system enables the worktable to have multiple adjustable speeds and low vibration, making it suitable for a variety of processing applications.

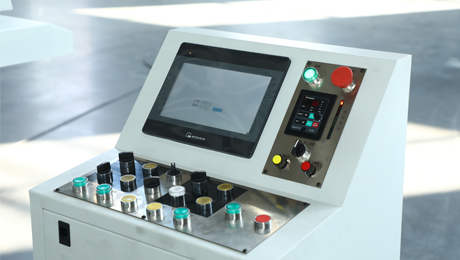

LCD touchscreen and button panel, customizable with multiple grinding modes, simple and convenient operation. Easy to learn and understand, parameters can be stored and not lost during power outages.
| Specification | Unit | 4080AHD | ||||
| Performance | Worktable Dimensions (L×W) | mm | 800*400 | |||
| Max Table Travel | Left and Right | mm | 900 | |||
| Front and Rear | mm | 450 | ||||
| Max Distance from Table to Spindle Center | mm | 600 | ||||
| Max Workpiece Weight (including Electromagnetic Chuck) | kg | 700 | ||||
| Worktable (Left/Right) | T-slot Dimensions (Number of T-slots) | mm×N | 14×3 | |||
| Work method | Hydraulic Automatic | |||||
| Left/Right Table Speed | m/min | 5-23 | ||||
| Sliding Saddle (Front/Back) | Front/Back Hand wheel Feeding | 1 division | mm | 0.02 | ||
| 1 revolution | mm | 5 | ||||
| Feed Amount | Feed Position | Both Ends or One Side | ||||
| Feed Amount | mm | 0.5—10 | ||||
| Grinding Head (Up/Down) Digital Display | Digital Display | mm | 0.001 | |||
| Rapid Lift Speed | mm/min | 150 | ||||
| Manual Feed Servo Motor | method | ×10 | ×1 | |||
| One Complete Rotation of the Hand wheel | mm | 0.1 | 0.01 | |||
| Minimum Feed Amount | mm | 0.01 | 0.001 | |||
| Automatic Feed rate | Total Feed | μm | ||||
| Fine Grinding Start Feed | μm | Set coarse, fine grinding; any number of passes and feed amounts | ||||
| Method | Infeed Grinding | Single-Side Feed or Both Ends Feed of the Worktable | ||||
| Longitudinal Grinding | Two-Stage Front and Back Feed | |||||
| Spark-Free Grinding Cycles | Reciprocating | Arbitrary Setting | ||||
| Fixed Cycle | Rapid Feed → Rough Grinding → Fine Grinding Return Rough → Fine → Return | |||||
| Wheel | Wheel Size | mm | Φ355*127*40 | |||
| Spindle Speed | r.p.m | 1450/1750 | ||||
| Lubrication | Full automatic lubrication (automatic oil level detection) | |||||
| Motor | Spindle Motor | kw | 5.5 | |||
| Vertical Drive Motor | W | AC Servo | ||||
| Hydraulic Motor | kw | 2.2 | ||||
| Dust Collection Motor | ||||||
| Water Pump Motor | w | 180 | ||||
| Front/Back Drive Motor | W | 80 | ||||
| Dimensions | Machine Height | Mm | 2000 | |||
| Machine Footprint | Mm | 3000*1600 | ||||
| Net Weight | Kg | 2800 | ||||
| Standard accessories | |
| ITEM | Quantity（set） |
| Flange | 1 |
| Wheel Balancing Stand | 1 |
| grinding wheel Dismounting Tool | 1 |
| Foot Pads and Screws | 1 |
| Magnetic Disk 400*800 | 1 |
| Toolbox and tools | 1 |
| work light | 1 |
| Grinding Wheel | 1 |
| Surface Grinding Wheel Dresser (with Diamond Dresser) | 1 |
Roundness: 0.002mm
Straightness: ≤0.003mm
Long-lasting
Durability
Japan's premier grinding machine manufacturer employs advanced technology suitable for machining medical guide wires, shafts, pins, rollers, sleeves, rings, slender shafts, thin-walled components, simple stepped shafts, and multi-stepped small shafts. Materials include ceramics, alloy steel, bearing steel, tool steel, mold steel, copper, aluminum, high-temperature alloys, and cemented carbide. Ideal for automotive parts, aerospace, and other industries.
Double V-shaped guide rails + dovetail groove structure, capable of ±5 degrees rotation with feed adjustment precision down to 0.001mm.
Hydraulic drive, continuously variable transmission, and smooth dressing significantly enhance straightness and surface roughness during grinding.
| Specifications | Unit | |
| Maximum Grinding Length | 450mm | |
| Maximum width of grinding | 150mm | |
| Distance from grinding wheel axis to workbench | 385mm | |
| Grinding wheel size (outside diameter * thickness * aperture) | 180*13*31.75mm | |
| Spindle speed (50Hz/60Hz) | 3000rpm/3600rpm | |
|
Every turn of the handwheel feeds Amount |
Table moves left and right | 100mm |
| Saddle fore-and-aft momentum | 5mm (0.02mm per scale) | |
| Up-and-down movement of grinding wheel | 1mm (0.005mm per scale) | |
| Grinding wheel motor (V3) | 1.1Kw1.5HP | |
| Vacuum motor | 0.4Kw | |
| Machine size (length * width * height) | 1400*920*1850mm | |
| Mechanical weight (approx.) | 750kg | |
| Specifications | Unit | |
| Maximum Grinding Length | 450mm | |
| Maximum width of grinding | 150mm | |
| Distance from grinding wheel axis to workbench | 385mm | |
| Grinding wheel size (outside diameter * thickness * aperture) | 180*13*31.75mm | |
| Spindle speed (50Hz/60Hz) | 3000rpm/3600rpm | |
|
Every turn of the handwheel feeds Amount |
Table moves left and right | 100mm |
| Saddle fore-and-aft momentum | 5mm (0.02mm per scale) | |
| Up-and-down movement of grinding wheel | 1mm (0.005mm per scale) | |
| Grinding wheel motor (V3) | 1.1Kw1.5HP | |
| Vacuum motor | 0.4Kw | |
| Machine size (length * width * height) | 1400*920*1850mm | |
| Quartz lamp | 1 lamp | |
