How Surface Grinders Achieve High Flatness and Parallelism

2026-01-30 01:37:09

Introduction

High flatness and parallelism are two of the most critical quality indicators in Precision Surface Grinding. They directly affect part assembly, functional accuracy, and long-term performance, especially in mold manufacturing, precision tooling, and high-end mechanical components.

Achieving micron-level flatness and parallelism is not the result of a single factor, but the combined outcome of machine structure, motion accuracy, grinding process control, and operator-independent repeatability.

The Role of a Rigid and Stable Machine Bed

The foundation of high flatness begins with machine rigidity. Any deformation or vibration during grinding will be transferred directly to the workpiece surface.

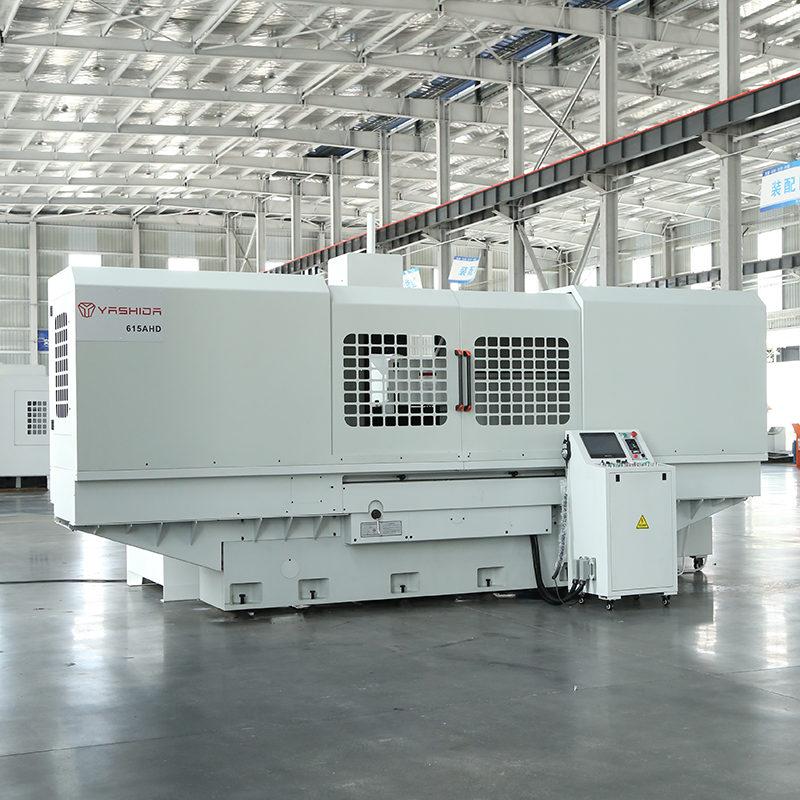

High-quality surface grinders use heavy-duty cast iron machine beds with excellent vibration damping characteristics. YASHIDA surface grinders are built with HT300 high-strength cast iron beds, providing superior rigidity and thermal stability. This solid foundation ensures that the grinding geometry remains stable even during long machining cycles.

Precision Guideways and Linear Motion Accuracy

Accurate linear motion is essential for achieving consistent flatness and parallelism across the entire grinding stroke.

YASHIDA surface grinders use high-precision guideway systems combined with manual hand scraping. The hand scraping process creates a dense oil-retaining surface that improves smooth motion and long-term accuracy, while also ensuring precise straightness and alignment between axes.

Spindle Quality and Grinding Wheel Stability

The spindle is the heart of a surface grinder. Any spindle runout, vibration, or thermal growth directly affects surface accuracy.

High-end surface grinders use precision-balanced spindles with controlled preload and excellent thermal management. YASHIDA surface grinders employ high-rigidity spindle assemblies designed for low vibration and stable rotation, enabling consistent surface finishes and precise material removal.

Accurate Workholding and Magnetic Chuck Performance

High flatness and parallelism cannot be achieved without stable and uniform workpiece clamping.

YASHIDA surface grinders are equipped with high-precision magnetic chucks that provide uniform magnetic force distribution. This ensures the workpiece remains flat and securely fixed during grinding, minimizing distortion and improving parallelism between surfaces.

Controlled Grinding Parameters and CNC Technology

Modern surface grinding relies heavily on precise control of grinding parameters such as feed rate, depth of cut, and spark-out time.

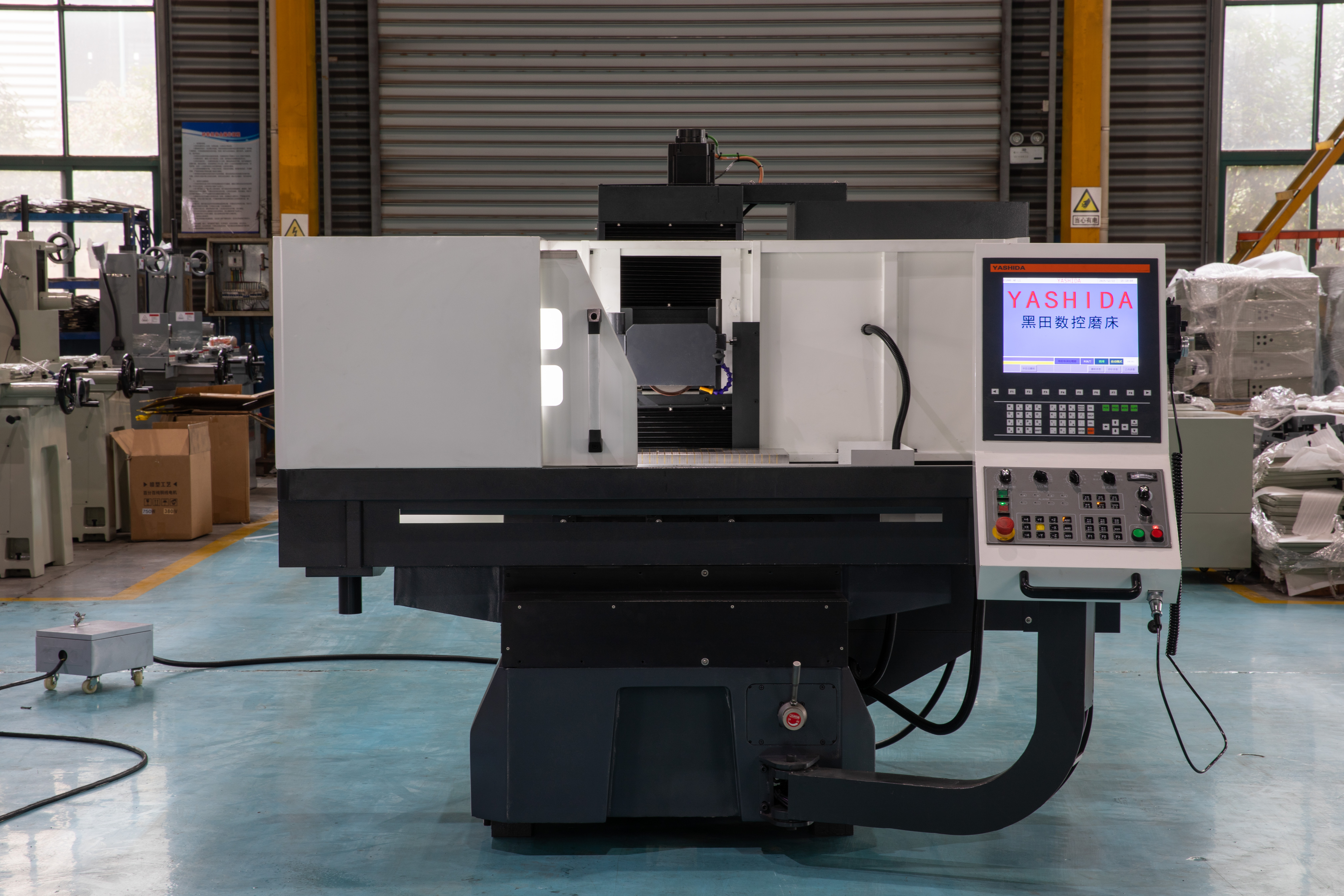

CNC-controlled surface grinders allow these parameters to be programmed and repeated accurately. YASHIDA CNC surface grinders use advanced control systems to maintain consistent grinding conditions, reducing operator dependency and ensuring repeatable flatness and parallelism across batches.

Thermal Control and Process Stability

Thermal effects are a major source of accuracy loss in surface grinding. Temperature fluctuations can cause machine expansion and workpiece deformation.

YASHIDA surface grinders are designed with thermal stability in mind, using optimized structural layouts and controlled lubrication systems to minimize heat accumulation. This helps maintain stable geometry throughout the grinding process.

Conclusion

High flatness and parallelism in surface grinding are achieved through a combination of rigid machine construction, precision guideways, stable spindle performance, accurate workholding, and controlled grinding processes.

By integrating HT300 cast iron beds, hand-scraped guideways, high-rigidity spindles, and advanced CNC control, YASHIDA surface grinders provide reliable solutions for manufacturers who demand micron-level accuracy and long-term stability.
