Introduction

In surface grinding, accuracy is not achieved by the spindle alone. The foundation of precision begins with the machine bed. Machine bed design directly influences rigidity, vibration resistance, thermal stability, and long-term accuracy retention. A well-engineered bed provides the structural integrity required for consistent flatness, parallelism, and surface finish.

Why the Machine Bed Matters in Surface Grinding

The machine bed acts as the backbone of a surface grinder. All critical components—guideways, table, column, and spindle—are mounted on it. Any deformation, vibration, or internal stress within the bed will be amplified during grinding, directly affecting machining accuracy.

A rigid and stable bed ensures that cutting forces are absorbed evenly, preventing micro-deflections that lead to waviness, chatter, or dimensional errors.

Material Selection: The Advantage of High-Strength Cast Iron

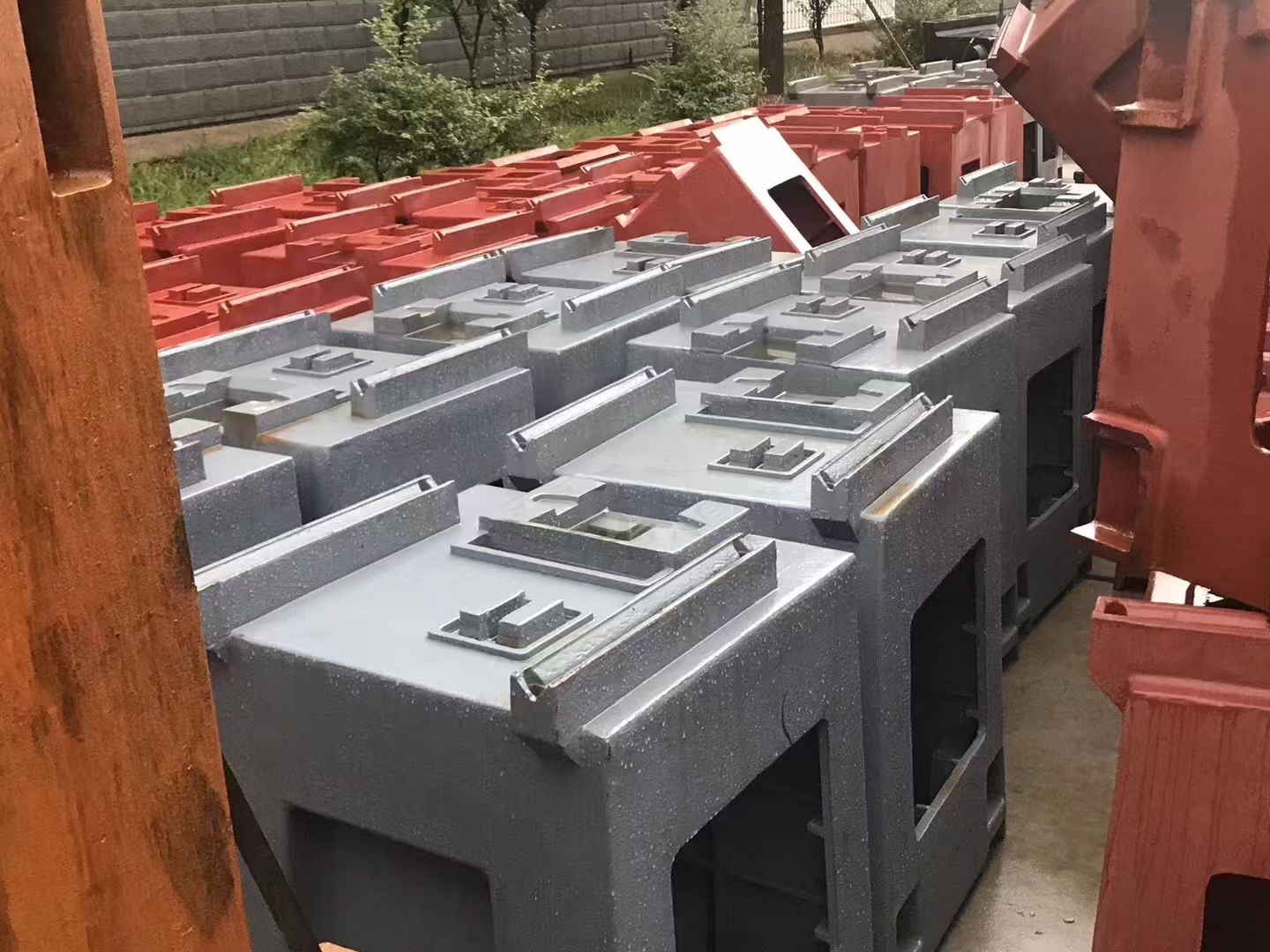

High-quality surface grinders typically use high-strength cast iron for their machine beds. Materials such as HT300 cast iron offer excellent rigidity, vibration damping, and wear resistance compared to standard castings.

YASHIDA surface grinders utilize HT300 high-strength cast iron beds, which provide superior structural stability. This material effectively absorbs grinding vibrations, ensuring smoother cutting action and more consistent accuracy, especially in high-precision applications.

The Role of Artificial Aging and Stress Relief

Even the best casting material can suffer from internal stress if not properly treated. Without adequate aging and stress-relief processes, the machine bed may gradually deform over time, leading to accuracy drift.

Advanced manufacturers incorporate controlled aging processes to stabilize the casting before machining. This step ensures long-term dimensional stability and reliable performance throughout the machine’s service life.

Hand Scraping: Precision Beyond Machining

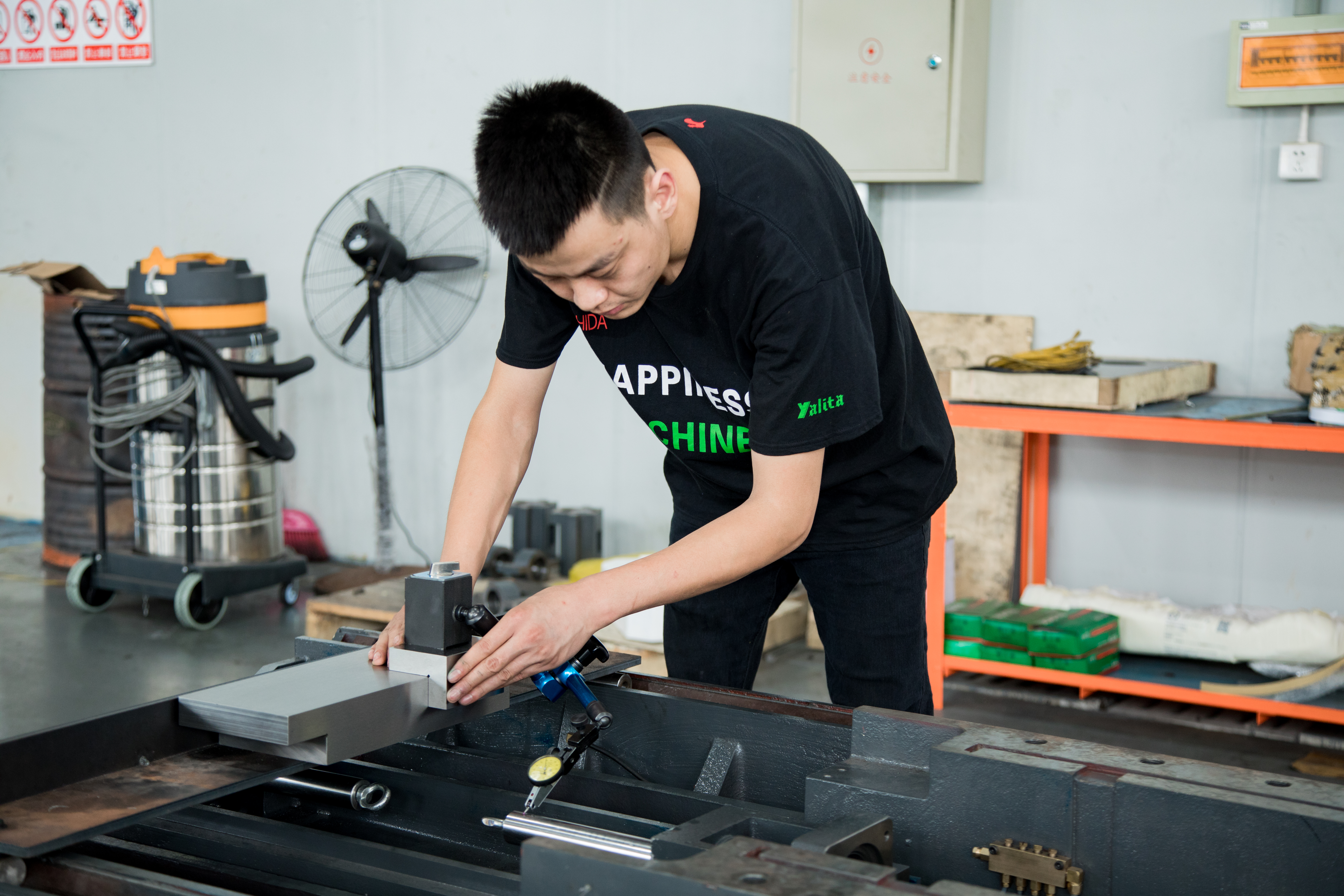

While modern CNC machining achieves high geometric accuracy, hand scraping remains essential for achieving true contact precision. Hand scraping refines the mating surfaces of guideways and beds, creating optimal contact patterns that distribute loads evenly.

YASHIDA surface grinders employ skilled hand scraping techniques on critical contact surfaces. This process improves motion smoothness, enhances load-bearing capacity, and significantly reduces long-term wear—allowing the machine to maintain accuracy for many years.

Thermal Stability and Accuracy Retention

During grinding, heat is generated by both the spindle and the grinding process. A well-designed machine bed helps dissipate heat evenly, minimizing thermal distortion.

The combination of HT300 cast iron and precision scraping gives YASHIDA surface grinders excellent thermal stability, ensuring that accuracy is preserved even during extended grinding cycles.

Long-Term Accuracy and Cost Efficiency

A high-quality machine bed is an investment in long-term performance. Machines with rigid, well-scraped beds require fewer recalibrations, experience less guideway wear, and maintain consistent accuracy over extended periods.

For manufacturers focused on precision, reliability, and lifecycle cost, bed design is one of the most critical factors when selecting a surface grinder.

Conclusion

Surface grinding accuracy depends heavily on machine bed design. From material selection to hand scraping craftsmanship, every detail contributes to rigidity, stability, and precision. By using HT300 high-strength cast iron and traditional hand scraping processes, YASHIDA surface grinders deliver long-lasting accuracy and dependable grinding performance for demanding applications.
