Understanding Flatness, Parallelism, and Surface Finish in Grinding

2026-01-21 02:39:45

Introduction

In precision grinding, quality is defined by more than dimensional accuracy alone. Flatness, parallelism, and surface finish are three critical indicators that determine whether a ground component meets functional and assembly requirements. Understanding how these parameters are achieved—and what affects them—is essential for manufacturers seeking consistent, high-quality grinding results.

What Is Flatness in Grinding?

Flatness refers to how closely a surface conforms to a perfectly flat plane. In surface grinding, flatness is influenced by machine rigidity, guideway accuracy, spindle stability, and thermal behavior during grinding.

Even minor vibrations or uneven table motion can lead to waviness or localized deviations. High-quality surface grinders use rigid machine beds, precision guideways, and stable spindles to minimize these errors and ensure uniform material removal across the entire workpiece.

Understanding Parallelism

Parallelism measures the degree to which two surfaces remain equidistant across their entire length. In grinding, parallelism is often required between the top and bottom faces of a component or between a machined surface and a reference datum.

Poor parallelism is usually caused by uneven clamping, guideway wear, or inconsistent feed motion. precision surface grinders with accurate vertical feed systems and stable table movement help maintain consistent material removal, ensuring parallel surfaces even in tight-tolerance applications.

What Is Surface Finish?

Surface finish describes the texture of a ground surface and is typically measured as surface roughness (Ra). It directly affects friction, wear, sealing performance, and appearance.

Surface finish depends on multiple factors, including grinding wheel selection, wheel dressing quality, spindle balance, feed rate, and machine vibration. A stable grinding system allows the wheel to cut smoothly rather than rub or chatter, resulting in a finer, more consistent finish.

How These Three Factors Are Connected

Flatness, parallelism, and surface finish are closely related. Poor flatness often leads to inconsistent surface finish, while unstable parallelism can cause uneven loading on the grinding wheel, accelerating wear and degrading finish quality.

Achieving all three simultaneously requires a balanced grinding system—one that combines mechanical rigidity, precise motion control, and proper process parameters.

Machine Design Matters

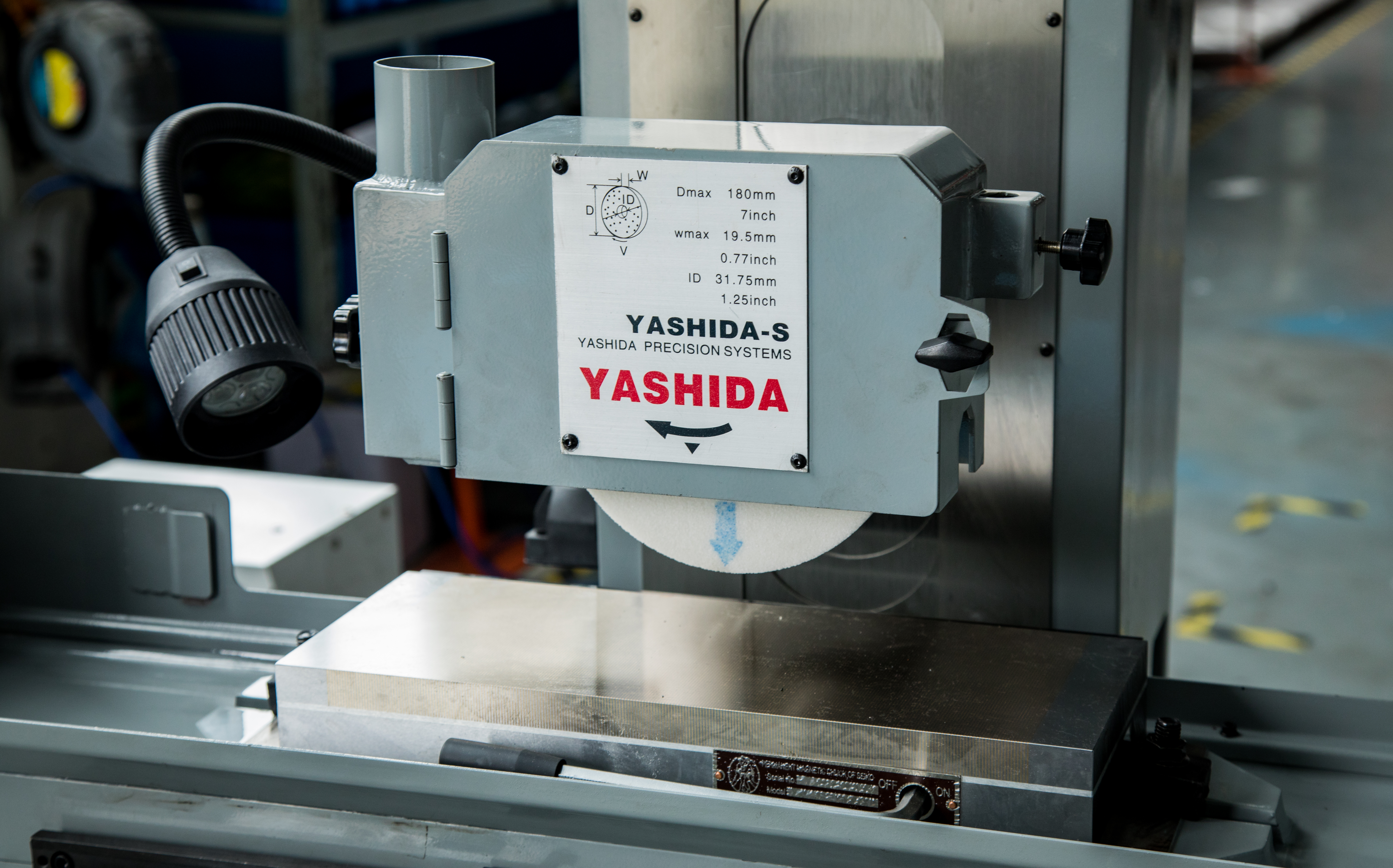

The design quality of a surface grinder plays a decisive role in achieving high flatness, parallelism, and surface finish. Features such as hand-scraped guideways, vibration-damping cast iron structures, and high-quality spindle components contribute directly to grinding performance.

Machines designed with long-term accuracy in mind are better suited for applications where micron-level tolerances and consistent surface quality are required.

Conclusion

Flatness, parallelism, and surface finish are the foundation of precision grinding quality. Understanding how these parameters interact—and how machine design and process control influence them—enables manufacturers to achieve reliable, repeatable results. By investing in well-engineered surface grinding equipment and maintaining proper grinding practices, high precision and surface quality can be sustained over time.
