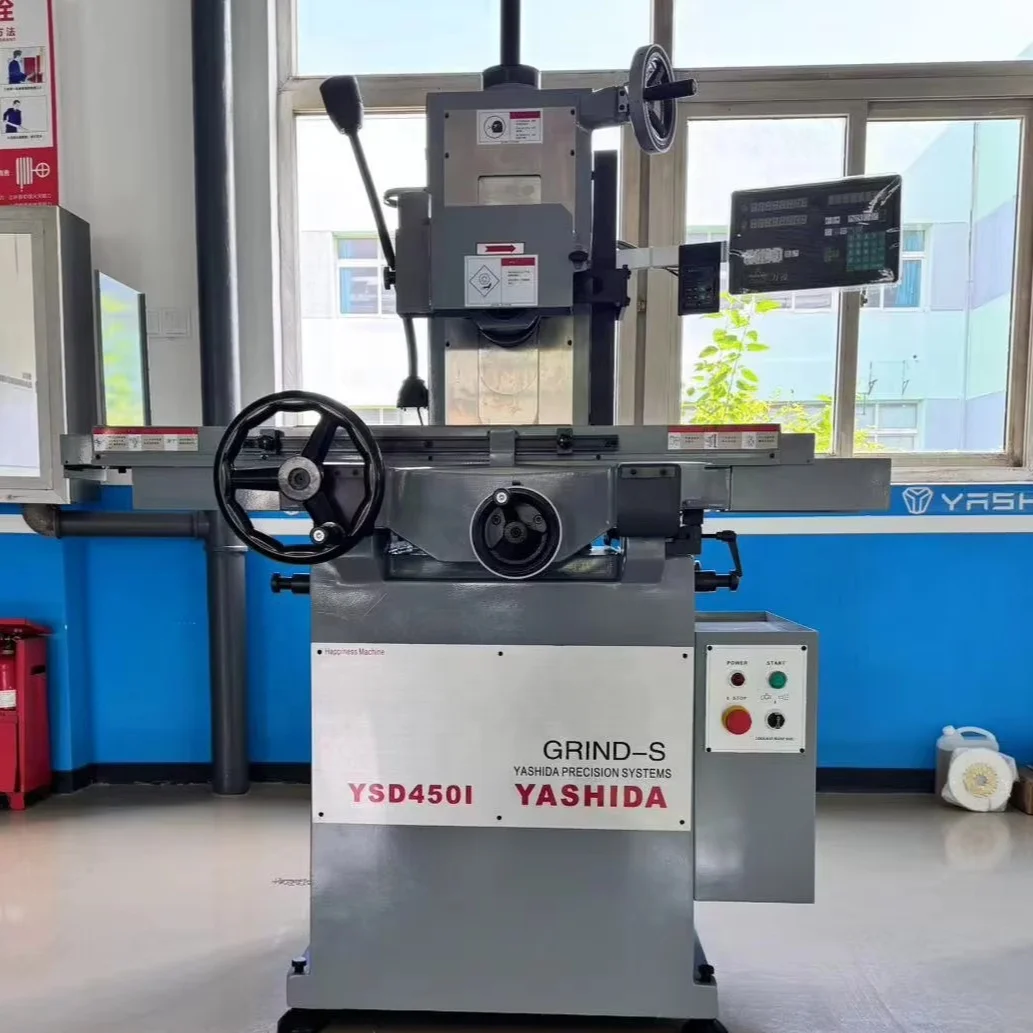

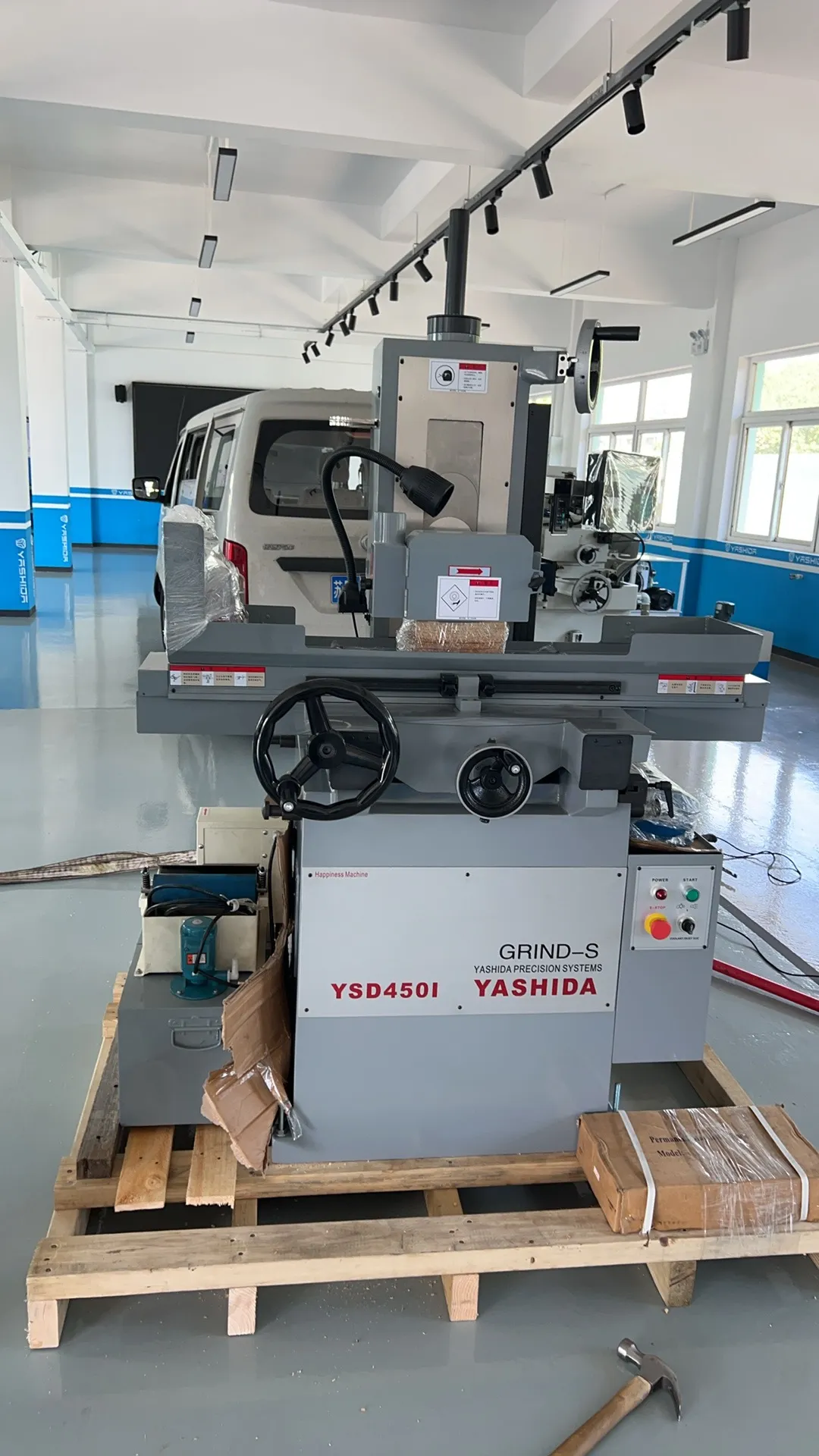

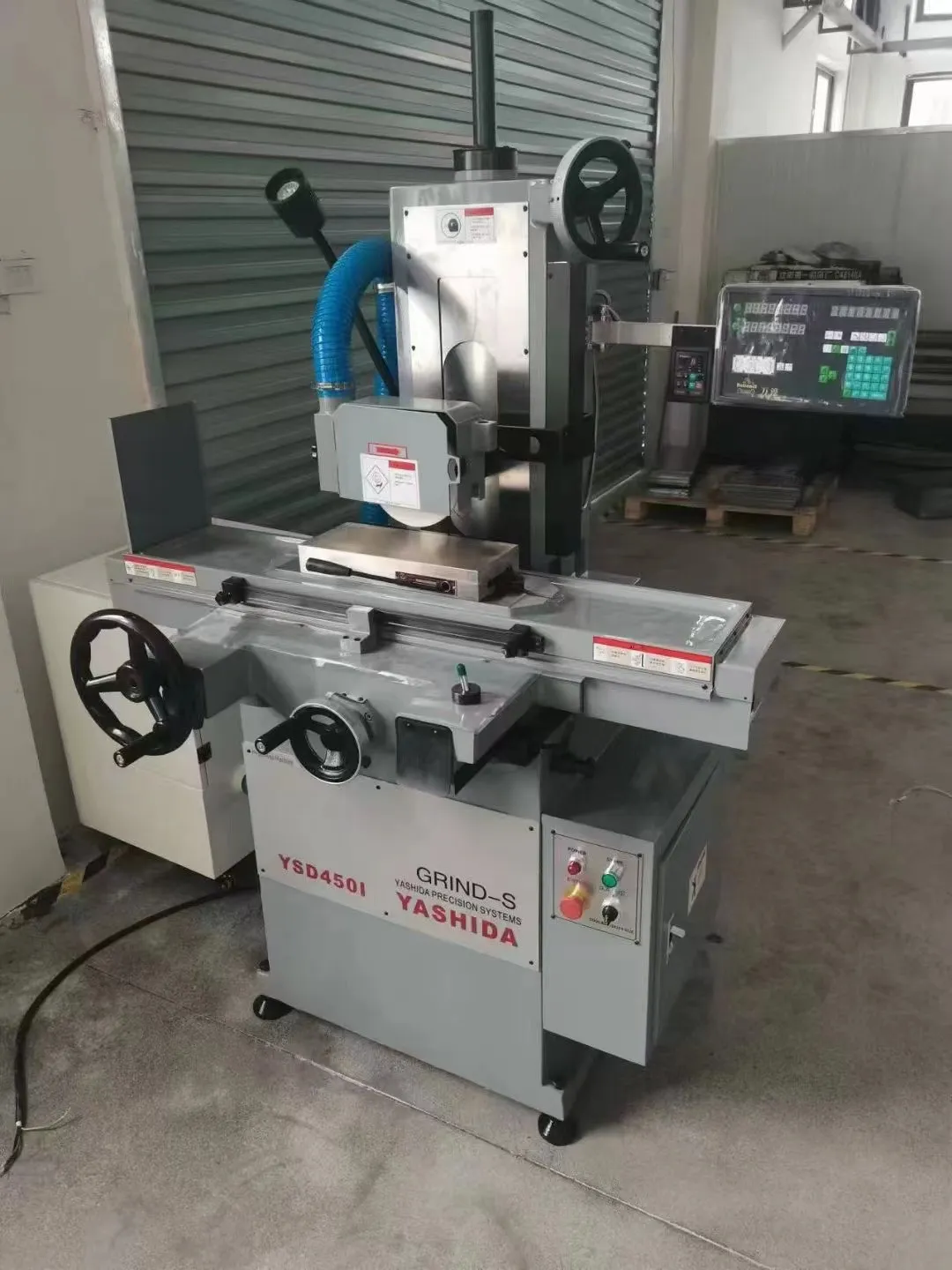

YASHIDA 450I Surface Grinding Machine

    YASHIDA 450I Surface Grinding Machine

  • Category：
    Manual Surface Grinding Machine
  • Browse number：
    3447
  • Release time：
    2025-01-16 14:07:42
  • Share：
    • INQUIRY

Products Description

Machine Features:

★High Precision，The Best Model For Small Parts ，Accuracy Within 0.002mm,Micro Feed 0.001mm
★Long Life，Easy To Operate，Using Top Castings
★Patented Belt Drive ，Easy to use and durable
★Suitable for processing precision small parts, mold inserts, punches, guide posts
★With magnetic disk adsorption or special fixtures, it can grind and process flat surfaces, cylindrical surfaces, angles, grooves,and other various part shapes and profiles.

Product Paramenters

ItemYashida 450I
Maximum grinding length460Mm
Maximum grinding width160Mm
Maximum grinding width distance from the spindle to workbench380-400Mm
Standard disk size standard disk size150*400Mm
Table size150*450Mm
Maximum left and right stroke485Mm
Maximum front and rear stroke180Mm
T-groove Table T-slot of workbench17*1Mm*m
Front and Rear Handwheel Feeding one scale0.02mm
one turn5mm
Up and Down Handwheel Feeding one scale0.005mm
one turn1mmm
Spindle speed of spindle2850/3600Rpm
Spindle motor1.5Hp
grinding wheel size (diameter * width * aperture) 180*13*31.75Mm（7*2/3*1-1/4）
Flushing motor0.4kw
Vacuum motor0.37kw
Machine dimensions (length * width * height) Machine dimensions (L * W * H)1300*1100*1900Mm
Mechanical weight mechanical weight880kg

Detailed Photos

  High precision machine

-Processing plane accuracy: within 300mm/0.002mm, smoothness ≤ Ra0.18 (45 # steel).

-The upper and lower columns, worktable, and saddle of this machine have been professionally calibrated and precision shoveled,ground, and grooved with an accuracy of ≤ 2 μ m

Machine tool material
-The main castings of this machine are made of high-grade cast iron and are annealed to eliminate internal stress, ensuring high precision, high rigidity and extending the service life of the machine.

Spindle design
-The main spindle of this machine adopts P4 grade ultra-precision bevel roller bearing, which has low noise, no vibration, high torque under high-speed rotation, and is suitable for precision grinding, heavy cutting and forming grinding.

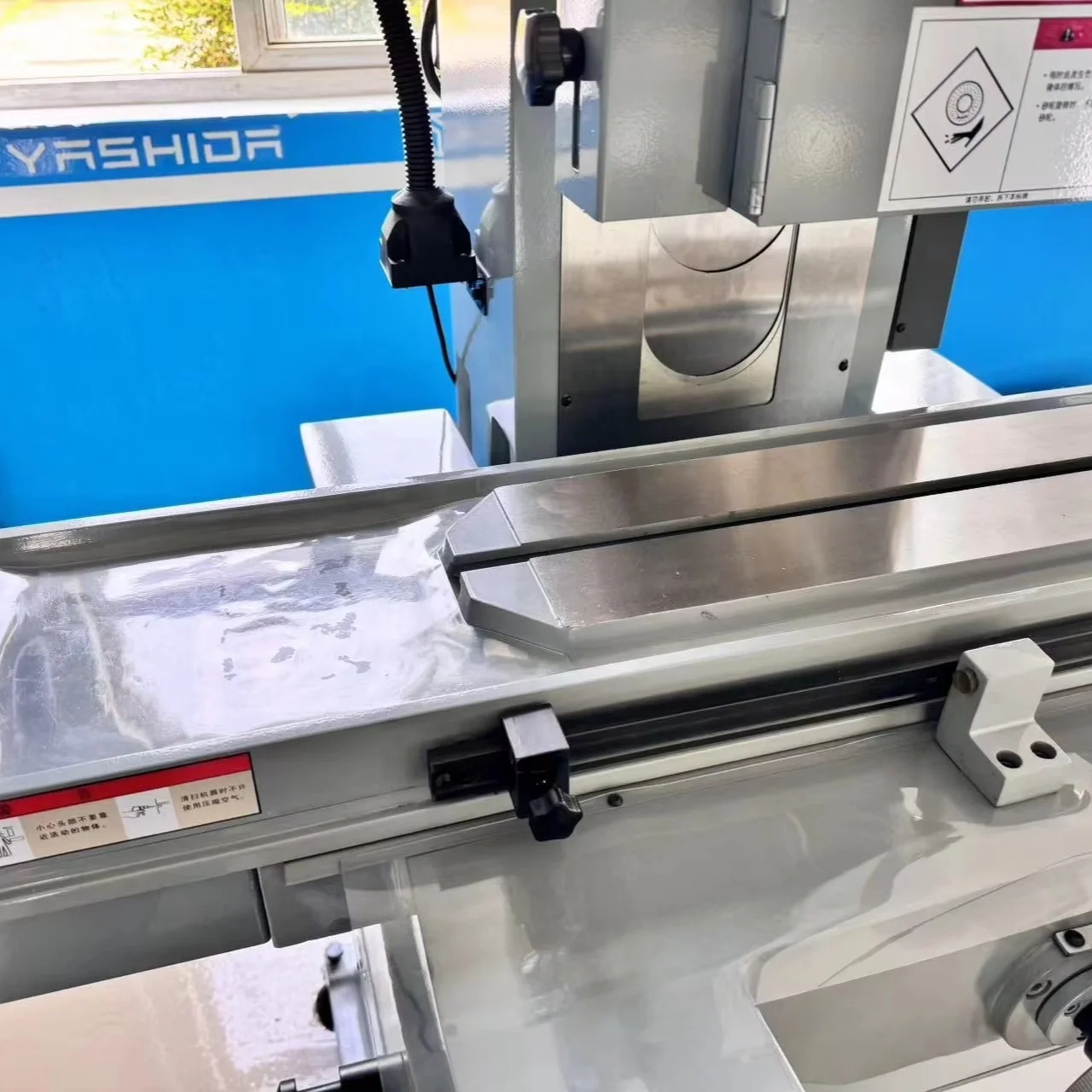

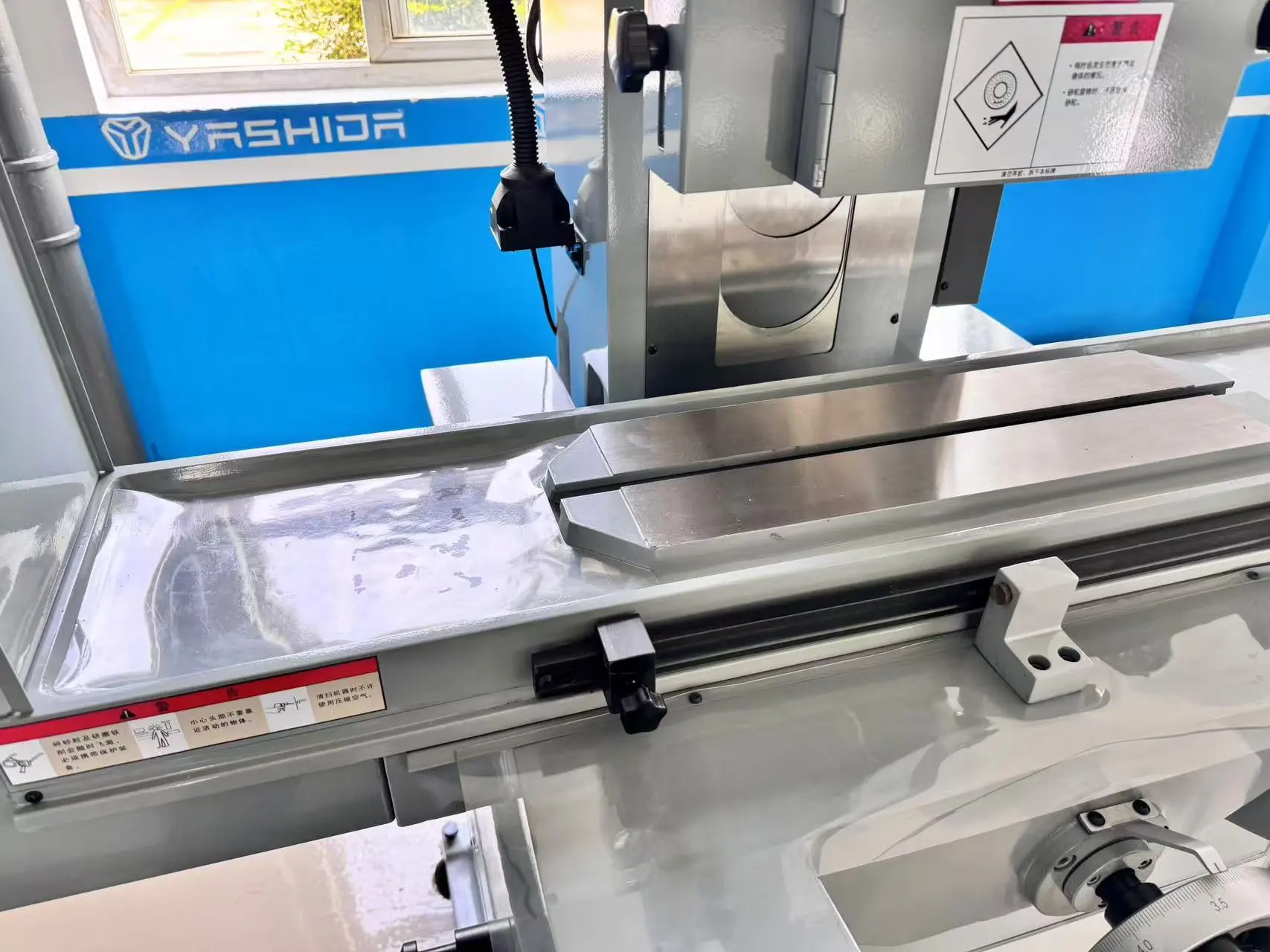

Guide rail sliding surface
-The left and right and front and rear double V slideways of this machine are made of Italian TURCITE wear-resistant resin and are precision scraped, which not only makes the slideway smooth and wear-resistant, but also is most suitable for molding and grinding.

Automatic Lubrication System
-The circulating automatic soft-slip system is adopted. When the spindle is started, the lubricating oil will automatically circulate to provide lubrication for each screw and slideway, which can greatly reduce the wear of the slideway. - An oil mirror is installed on one side of the machine column to monitor the lubrication status.
