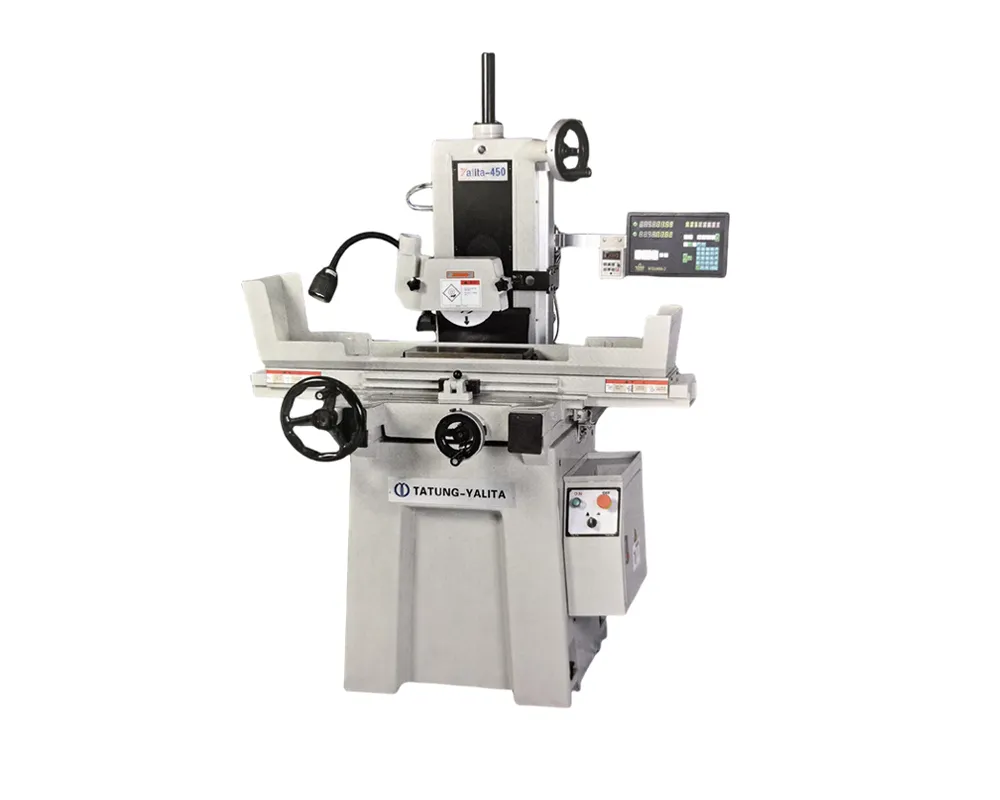

Mechanical Characteristics
Suitable for processing precision small parts, mold inserts, punches, guide posts;
With magnetic disk adsorption or special fixtures, it can grind and process flat surfaces, cylindrical surfaces, angles, grooves, and other various part shapes and profiles.
Flatness Precision: Within 300/0.002mm, Surface Finish: ≤Ra0.18 (45# Steel).
| Specifications | Unit | |
| Maximum Grinding Length | 450mm | |
| Maximum width of grinding | 150mm | |
| Distance from grinding wheel axis to workbench | 385mm | |
| Grinding wheel size (outside diameter * thickness * aperture) | 180*13*31.75mm | |
| Spindle speed (50Hz/60Hz) | 3000rpm/3600rpm | |
| Every turn of the handwheel feeds Amount | Table moves left and right | 100mm |
| Saddle fore-and-aft momentum | 5mm (0.02mm per scale) | |
| Up-and-down movement of grinding wheel | 1mm (0.005mm per scale) | |
| Grinding wheel motor (V3) | 1.1Kw1.5HP | |
| Vacuum motor | 0.4Kw | |
| Machine size (length * width * height) | 1400*920*1850mm | |
| Mechanical weight (approx.) | 750kg | |
| Standard Attachment | ||
| Project | Specifications | Quantity |
| Grinding wheel | 180*13*31.75mm | 1 tablet |
| Grinding wheel flange and pulling nut | 1 group | |
| Diamond trimming and diamond pen | 1 each. | |
| Horizontal adjustment screw and Foundation Block | 4 group | |
| Toolbox and necessary tools | 1 group | |
| Hanger | 4 branches | |
| Lube oil | 2.5 liters | |
| Quartz lamp | 1 lamp | |
