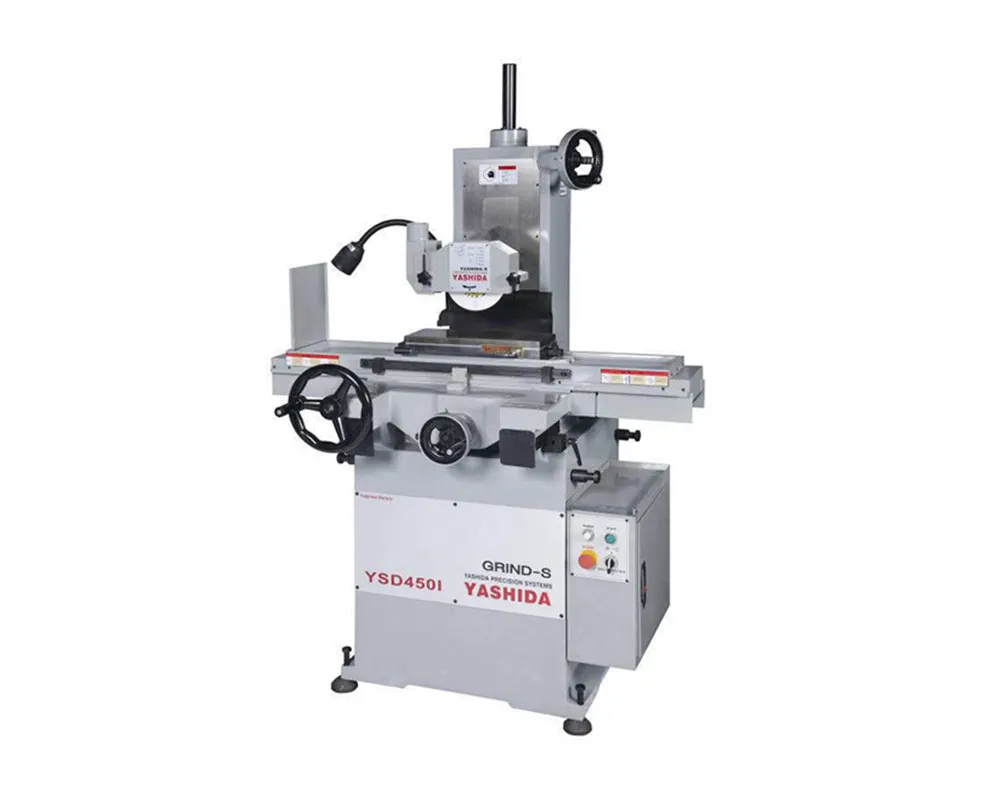

YASHIDA 450I

Machine Characteristics

High Precision，The Best Model For Small Parts ，Accuracy Within 0.002mm

Micro Feed 0.001mm

Long Life，Easy To Operate，Using Top Castings

Patented Belt Drive ，Guaranteed For 6 years

Item		YASHIDA 450I
Maximum grinding length		460Mm
Maximum grinding width		160Mm
Maximum grinding width distance from the spindle to workbench		380-400Mm
Standard disk size standard disk size		150*400Mm
Table size		150*450Mm
Maximum left and right stroke		485Mm
Maximum front and rear stroke		180Mm
T-groove Table T-slot of workbench		171Mmm
Front and Rear Handwheel Feeding	one scale	0.02mm
	one turn	5mm
Up and Down Handwheel Feeding	one scale	0.005mm
	one turn	1mmm
Spindle speed of spindle		2850/3600Rpm
Spindle motor		1.5Hp
Grinding wheel size (diameter * width * aperture)		1801331.75Mm（72/31-1/4）
Flushing motor		0.4kw
Vacuum motor		0.37kw
Machine dimensions (length * width * height) Machine dimensions (L * W * H)		130011001900Mm
Mechanical weight mechanical weight		880kg
