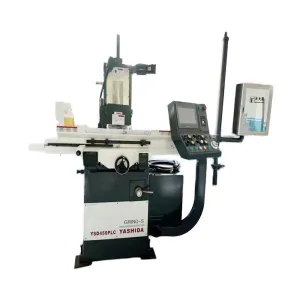

| Specification/model | Unit | YASHIDA450PLC |
| Processing range | ||
| X-axis travel (left and right effective travel) | Mm | 475（400） |
| Y-axis travel (effective travel before and after) | Mm | 160（150） |
| Z-axis travel (up and down) | Mm | 350 |
| Distance from spindle nose to workbench | Mm | 350 |
| Table specification | ||
| T-groove of workbench (width * number of grooves * length) | Mm | 17*1*500 |
| Table size (X-axis direction) | Mm | 450 |
| Table size (Y-axis direction) | Mm | 150 |
| Maximum load of workbench | Kg | 50 |
| Spindle specification | ||
| Speed of main shaft | Rpm | 50/60HZ 2850/3360 (integrated) |
| Spindle horsepower | Kw | 1.1kw/1.5HP |
| Taper of spindle nose and spindle outer diameter | 1：5、Ф76 | |
| Feed system | ||
| X-axis oil pressure feed electronic contactless commutation | M/min | 5-25 |
| Y-axis forward and backward stepping motor feed | Mm/min | 790/950 （50/60HZ） |
| Manual feed of Z axis (upper and lower handwheels) | Mm | A grid of 0.001 and a turn of 1 |
| Up-down grinding feed | Mm/min | 0.001-0.03 |
| Motor and power requirements | ||
| Flushing motor | HP | 1/8 |
| Vacuum motor | HP | 3/4 |
| Hydraulic motor | HP | 2 |
| Spindle motor | HP | 1.5 |
| Maximum power demand | 5KVA | |
| Machine size | ||
| Machine length | Mm | 1400 |
| Machine width | Mm | 1350 |
| Length, width and height of machine | Mm | 1400*1400*1810 |
| Machine weight | Kg | About 950KG |
