> 3060APS High-precision CNC Surface Grinding Machine
Automation: Three axis automatic, using system control to meet the automatic sanding and correction of flat and groove surfaces .
High precision: feed rate up and down 0.001mm, accuracy within 0.003mm.
High smoothness: 0.03ra surface roughness.
High rigidity: German craftsmanship design, increased rigidity by 40%, and excellent efficiency.
Environmental Protection: Unique fully enclosed design, effectively protecting the physical and mental health of employees.

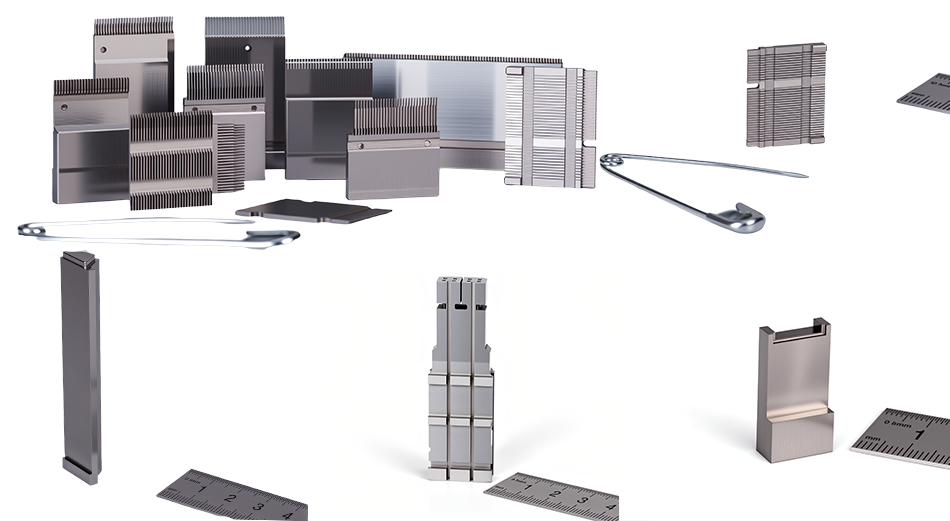

The core technology originates from a top Japanese grinding machine manufacturer. Suitable for industries such as aerospace, high-end chips, medical devices, and new energy vehicles, it is ideal for processing precision small parts, mold inserts, punches, guide pillars, and various special materials such as ceramics, silicon carbide, glass, alumina, and tantalum.

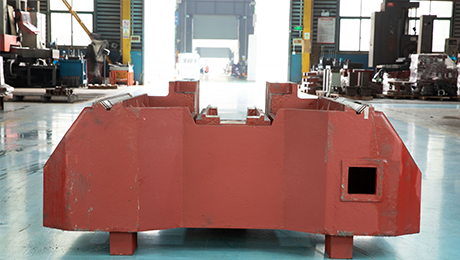

Utilizing imported core components and HT300 high-grade cast iron castings, naturally tempered to ensure stability and durability. Precision remains consistently high.
Adopting imported dual servo motors from Taiwan, it provides excellent low-speed stability and extremely fast response speed, ensuring high-precision grinding.
| Specifications | unit | 3060APS |
| Range of work | ||
| X-axis stroke (left and right) | mm | 600 |
| Y-axis stroke (front and rear) | mm | 300 |
| Z-axis stroke (up and down) | mm | 650 |
| The Distance from The Main Shaft Nose To The Work Table | mm | 150-550 |
| Workbench specifications | ||
| Workbench T-groove (width * number of grooves * spacing) | mm | 18*3*80 |
| Workbench size (X-axis direction) | mm | 660 |
| Workbench size (Y-axis direction) | mm | 320 |
| Maximum payload of the work table | kg | 300 |
| Spindle specification | ||
| main shaft speed | rpm | 1450 (split-type) |
| Spindle horsepower | kW | 5.5kw/7.5HP |
| Taper of spindle nose and outer diameter of spindle | 1：5, Ф110 | |
| feed system | ||
| Fast feed (X / Y / Z axis) | m/min | 25/12/12 |
| Grinding into give | mm/min | 0.001-0.05 |
| Machine size | ||
| machine length | mm | 2200 |
| machine width | mm | 2800 |
| The Machine Long, Wide and High | mm | 2000*2400*2100 |
| Machine Weight | kg | About 3000KG |
| Standard accessories | |
| ITEM | Quantity |
| Flange | 1 |
| Wheel Balancing Stand | 1 |
| grinding wheel Balancing Arbor | 1 |
| Grinding Wheel Dismounting Tool | 1 |
| Machine Leveling Pad | 1 |
| Magnetic Disk 300*600 | 1 |
| Toolbox and tools | 1 |
| work light | 1 |
| Grinding Wheel | 1 |
| flushing system | 1 |
| Surface Grinding Wheel Dresser (with Diamond Dresser) | 1 |
Roundness: 0.002mm
Straightness: ≤0.003mm
Long-lasting
Durability
Japan's premier grinding machine manufacturer employs advanced technology suitable for machining medical guide wires, shafts, pins, rollers, sleeves, rings, slender shafts, thin-walled components, simple stepped shafts, and multi-stepped small shafts. Materials include ceramics, alloy steel, bearing steel, tool steel, mold steel, copper, aluminum, high-temperature alloys, and cemented carbide. Ideal for automotive parts, aerospace, and other industries.
Double V-shaped guide rails + dovetail groove structure, capable of ±5 degrees rotation with feed adjustment precision down to 0.001mm.
Hydraulic drive, continuously variable transmission, and smooth dressing significantly enhance straightness and surface roughness during grinding.
| Specifications | Unit | |
| Maximum Grinding Length | 450mm | |
| Maximum width of grinding | 150mm | |
| Distance from grinding wheel axis to workbench | 385mm | |
| Grinding wheel size (outside diameter * thickness * aperture) | 180*13*31.75mm | |
| Spindle speed (50Hz/60Hz) | 3000rpm/3600rpm | |
|
Every turn of the handwheel feeds Amount |
Table moves left and right | 100mm |
| Saddle fore-and-aft momentum | 5mm (0.02mm per scale) | |
| Up-and-down movement of grinding wheel | 1mm (0.005mm per scale) | |
| Grinding wheel motor (V3) | 1.1Kw1.5HP | |
| Vacuum motor | 0.4Kw | |
| Machine size (length * width * height) | 1400*920*1850mm | |
| Mechanical weight (approx.) | 750kg | |
| Specifications | Unit | |
| Maximum Grinding Length | 450mm | |
| Maximum width of grinding | 150mm | |
| Distance from grinding wheel axis to workbench | 385mm | |
| Grinding wheel size (outside diameter * thickness * aperture) | 180*13*31.75mm | |
| Spindle speed (50Hz/60Hz) | 3000rpm/3600rpm | |
|
Every turn of the handwheel feeds Amount |
Table moves left and right | 100mm |
| Saddle fore-and-aft momentum | 5mm (0.02mm per scale) | |
| Up-and-down movement of grinding wheel | 1mm (0.005mm per scale) | |
| Grinding wheel motor (V3) | 1.1Kw1.5HP | |
| Vacuum motor | 0.4Kw | |
| Machine size (length * width * height) | 1400*920*1850mm | |
| Quartz lamp | 1 lamp | |
