Common Faults and Quick Repair Guide for CNC Surface Grinding Machines

2026-03-30 13:21:32

Introduction

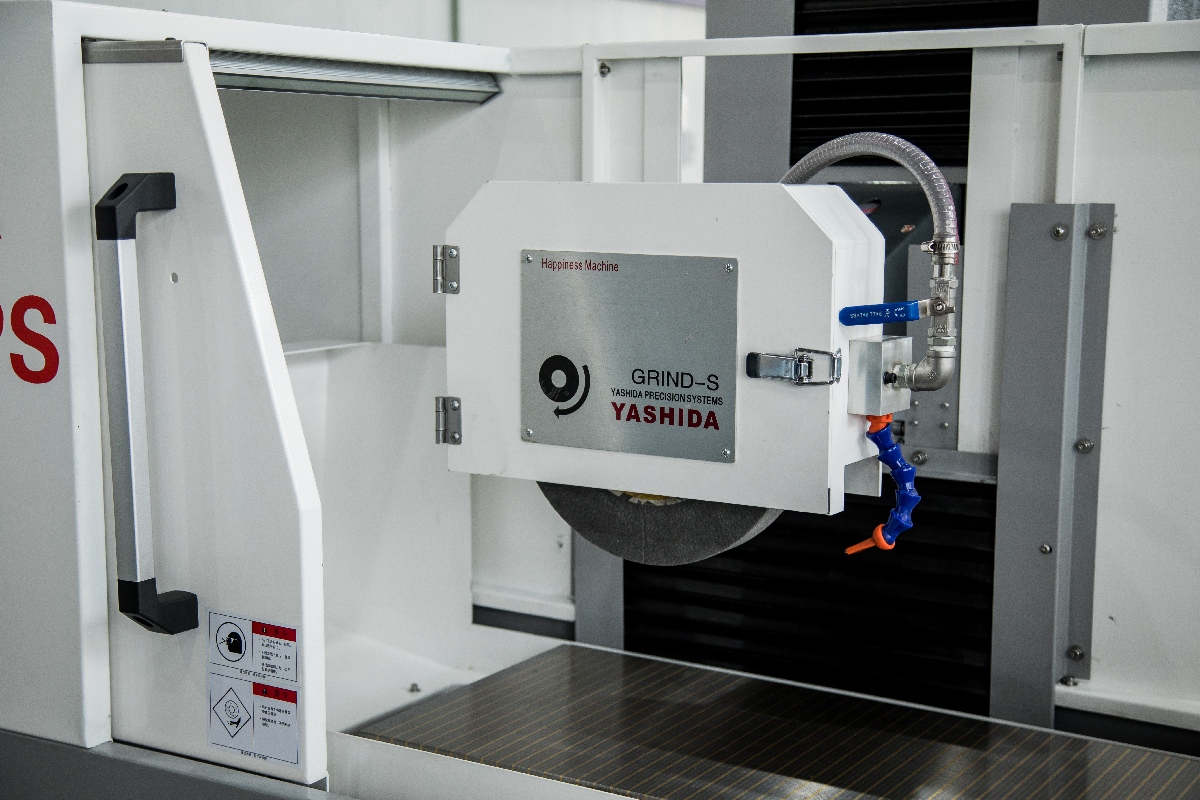

CNC surface grinders are widely used in precision manufacturing due to their high precision and automation advantages.

However, various malfunctions are inevitable during long-term use. Mastering common problems and quick troubleshooting methods can help reduce downtime and improve production efficiency.

Common Fault Types

1. Spindle Operation Abnormalities: Common problems include loud noise and severe vibration.

Possible causes of failure to start: worn bearings or insufficient lubrication.

Quick repair methods for motor or circuit faults: replace bearings or motor, clean the lubrication system, add lubricating oil, and check circuit connections.

2. CNC System Faults: Common problems include abnormal display and control failure.

Possible causes of program errors: software failure or hardware damage.

Quick repair methods for improper operation: check cables and power connections, reload the program or restore factory settings, and replace the CNC module, power board, and display screen if necessary.

3. Hydraulic System Faults: Common problems include insufficient pressure and sluggish movement.

Possible causes of oil leakage: damaged oil pump or ruptured oil pipe.

Quick repair methods for hydraulic oil contamination: replace the oil pump and damaged oil pipe, add hydraulic oil, clean contaminated areas, and regularly clean the filter to prevent clogging.

4. When the following phenomena occur in the transmission system

pay attention: unstable feed, inaccurate positioning, and movement jamming.

Possible causes: component wear, poor lubrication.

Quick repair methods for motor failure: replace worn lead screws, guide rails, and couplings; ensure good lubrication of all parts; inspect and repair the servo motor.

5. Common manifestations of cooling system failure: insufficient coolant, blocked pipes.

Consequences of coolant pump failure: workpiece burning, decreased surface quality.

Quick repair methods for accelerated grinding wheel wear: clean the coolant filter and pipes, replace the faulty pump or blocked components, check if the coolant has deteriorated, and replace it regularly.

Preventive Measures: Prevention is Better Than Cure

To ensure the long-term efficient operation of the grinding machine, the following points should be observed:

* Regularly maintain the equipment, focusing on checking the spindle, hydraulic, and electrical systems.

* Replace lubricating oil and hydraulic oil on time to ensure system stability.

* Clean the filters and cooling system to prevent impurity accumulation.

* Train operators to improve their correct usage and emergency handling capabilities.

Conclusion

Timely detection and resolution of common faults in CNC surface grinders are crucial for ensuring stable equipment operation. Through scientific diagnosis, timely repair, and daily prevention, production efficiency can be effectively improved and equipment lifespan extended, ensuring stable operation and consistent accuracy.
