Why Hand-Scraped Guideways Still Matter in Precision Surface Grinders

2026-02-12 01:45:32

Introduction: The Hidden Foundation of Precision

In Precision Surface Grinding, machine rigidity and motion stability determine the final machining accuracy. While spindle technology and CNC systems often receive the most attention, the guideway structure plays an equally critical role.

Among various guideway finishing methods, hand-scraped guideways remain a hallmark of high-end surface grinders. Despite advances in automated machining, manual scraping continues to be valued for its unmatched contact accuracy and long-term stability.

What Is Hand Scraping?

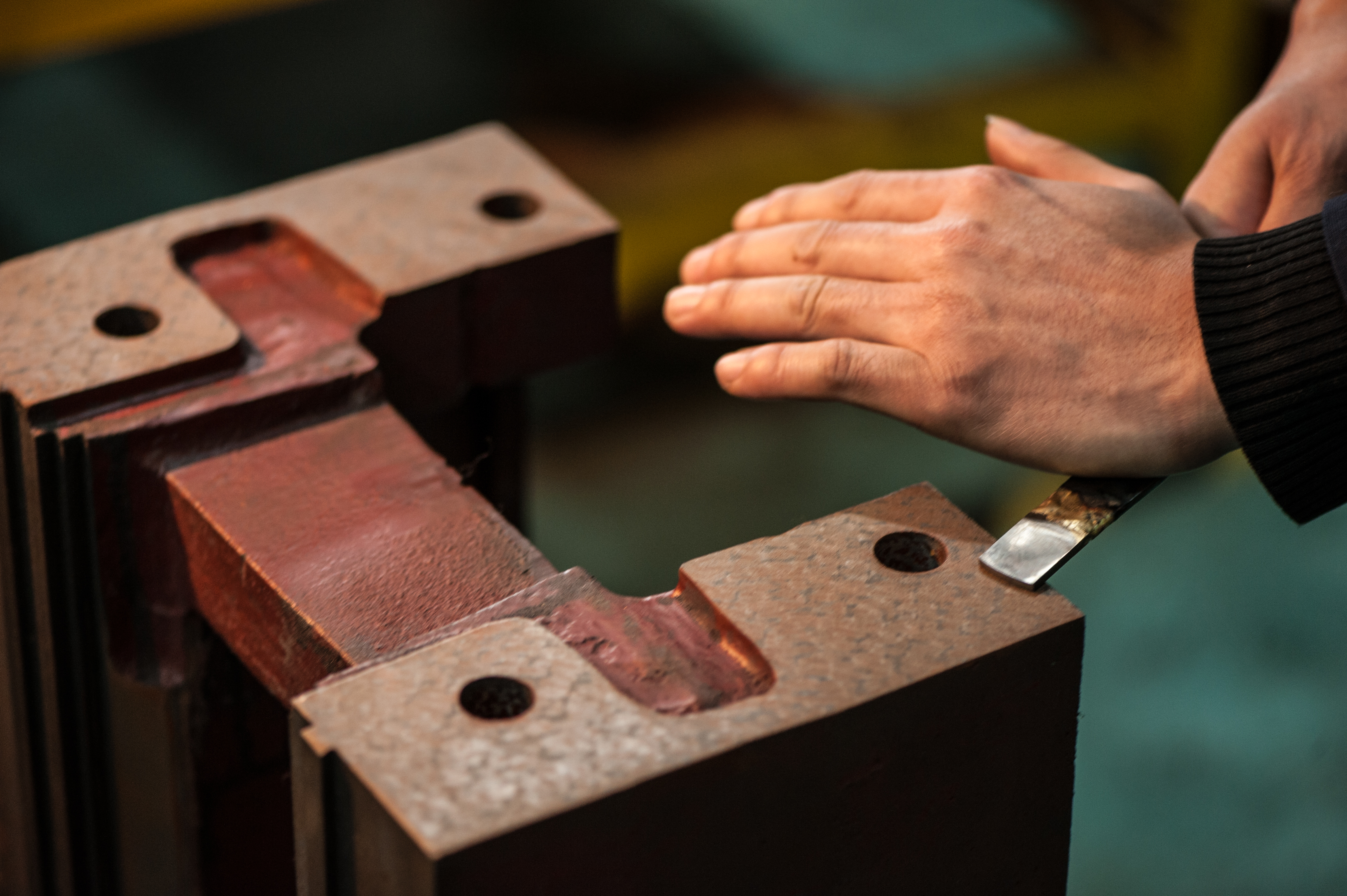

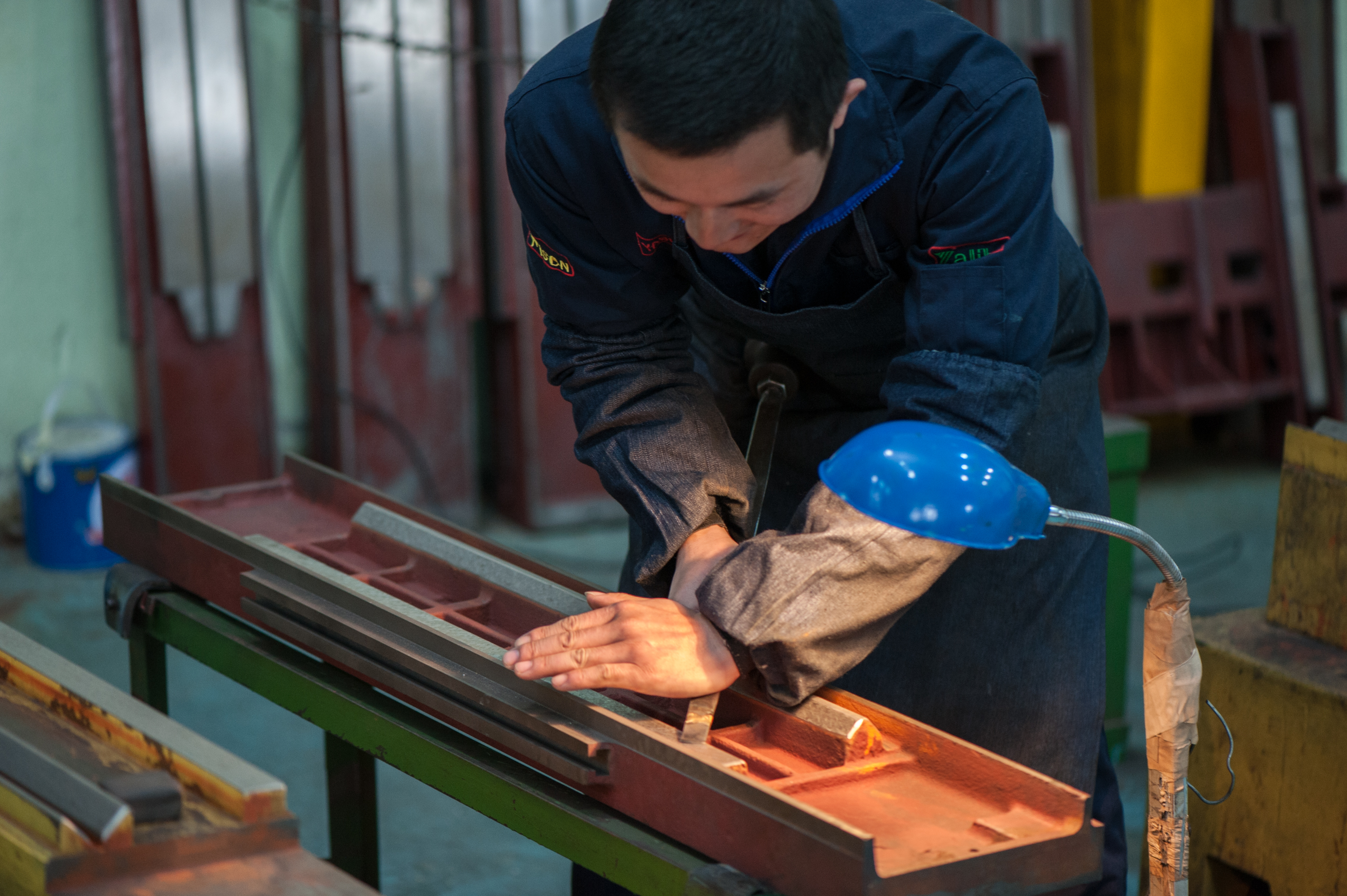

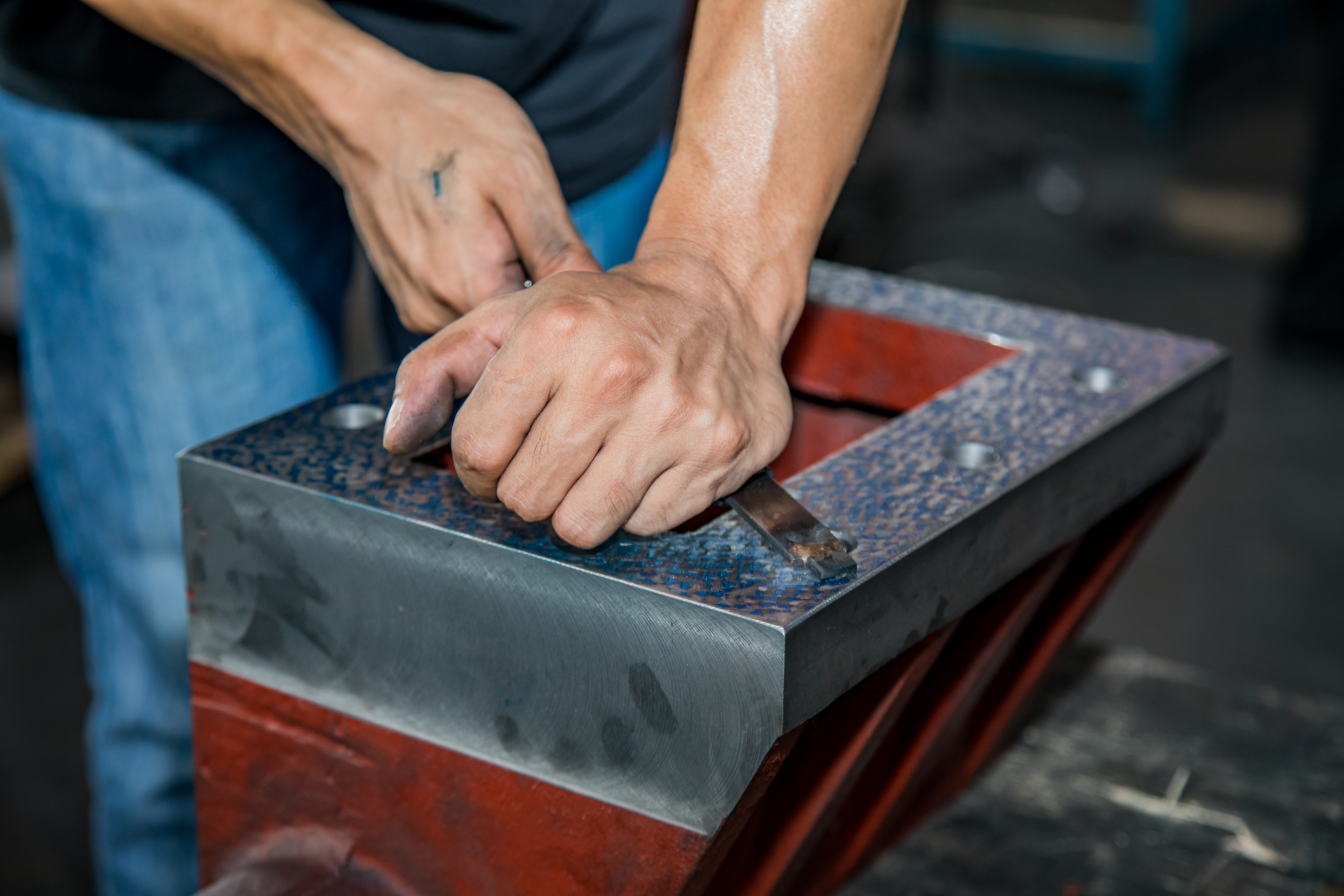

Hand scraping is a traditional precision finishing process where skilled technicians manually remove microscopic high spots on mating surfaces using specialized tools. The process creates uniform contact points between sliding surfaces.

Unlike simple grinding or milling, hand scraping ensures:

• Controlled bearing contact ratio

• Optimized oil retention pockets

• Even load distribution

• Reduced micro-vibration during movement

This level of refinement cannot be fully replicated by automated machining alone.

Why Scraped Guideways Improve Grinding Accuracy

1. Superior Contact Geometry

Hand scraping ensures precise surface-to-surface contact between the table and guideway. Proper contact geometry reduces localized stress and deformation, directly improving flatness and parallelism during grinding.

2. Enhanced Damping Characteristics

The micro-texture created during scraping improves oil film retention and vibration absorption. In surface grinding—where micron-level precision matters—this damping effect significantly stabilizes table movement.

3. Long-Term Accuracy Retention

Machines with properly scraped guideways tend to maintain accuracy over extended service periods. The even load distribution reduces uneven wear, which is crucial for precision grinding applications.

Scraped Guideways vs. Linear Guideways

While linear guideways offer high speed and convenience, scraped V-flat or box guideways provide:

• Higher structural rigidity

• Better vibration absorption

• More stable heavy-duty grinding performance

For precision mold components, semiconductor parts, and high-flatness requirements, scraped guideways often deliver superior surface finish consistency.

The Role of Craftsmanship in Modern Manufacturing

In today’s era of smart manufacturing, manual processes may seem outdated. However, hand scraping is not a limitation—it is a refinement process that enhances machine foundation quality.

High-end surface grinders combine modern CNC control with traditional craftsmanship, ensuring both precision and durability.

YASHIDA Surface Grinders: Combining Structure and Craft

YASHIDA precision surface grinders incorporate carefully finished guideway structures to ensure stable motion and long-term accuracy. By integrating rigid machine beds with precision hand-finished sliding surfaces, YASHIDA machines maintain consistent flatness and repeatability even in demanding grinding environments.

This balance of structural strength and craftsmanship supports stable grinding performance across various industrial applications.

Conclusion: Precision Begins at the Base

The quality of a surface grinder is determined not only by its spindle or control system, but by its foundation. Hand-scraped guideways remain essential in high-precision surface grinding because they enhance stability, durability, and long-term accuracy.

In precision manufacturing, craftsmanship still matters.
