V-Flat Guideway Design: Why It’s Still Widely Used in Precision Surface Grinders

2026-02-05 07:08:29

Introduction: A Classic Design That Refuses to Fade

In the era of CNC, linear motors, and advanced guideway technologies, it is easy to assume that traditional mechanical designs have become obsolete. However, in Precision Surface Grinding, the V-flat guideway design remains widely used—and for good reason. This classic configuration continues to deliver exceptional stability, accuracy, and long-term reliability in demanding grinding applications.

What Is a V-Flat Guideway Design？

A V-flat guideway consists of two different guide surfaces working together: one V-shaped guideway that precisely locates the table laterally, and one flat guideway that supports vertical loads. This combination fully constrains motion in all necessary directions while avoiding over-constraint, allowing smooth and predictable linear movement.

Natural Alignment and Self-Centering Stability

One of the biggest advantages of a V-flat guideway is its natural self-centering capability. The V-shaped surface automatically guides the moving component back to its correct position, even under fluctuating loads. This characteristic is particularly valuable in surface grinding, where stable table motion directly affects flatness and surface finish.

Superior Damping for Grinding Stability

Unlike rolling guideways, which rely on point or line contact, V-flat guideways use large-area sliding contact. This structure provides excellent vibration damping, absorbing micro-vibrations generated during grinding. Reduced vibration leads to better surface finish and more consistent machining results.

Long-Term Accuracy Retention

precision surface grinders are often expected to maintain accuracy over many years of operation. V-flat guideways, especially when combined with wear-resistant liners and hand scraping, distribute wear evenly and gradually. This slow, predictable wear pattern helps preserve geometric accuracy over the machine’s lifetime.

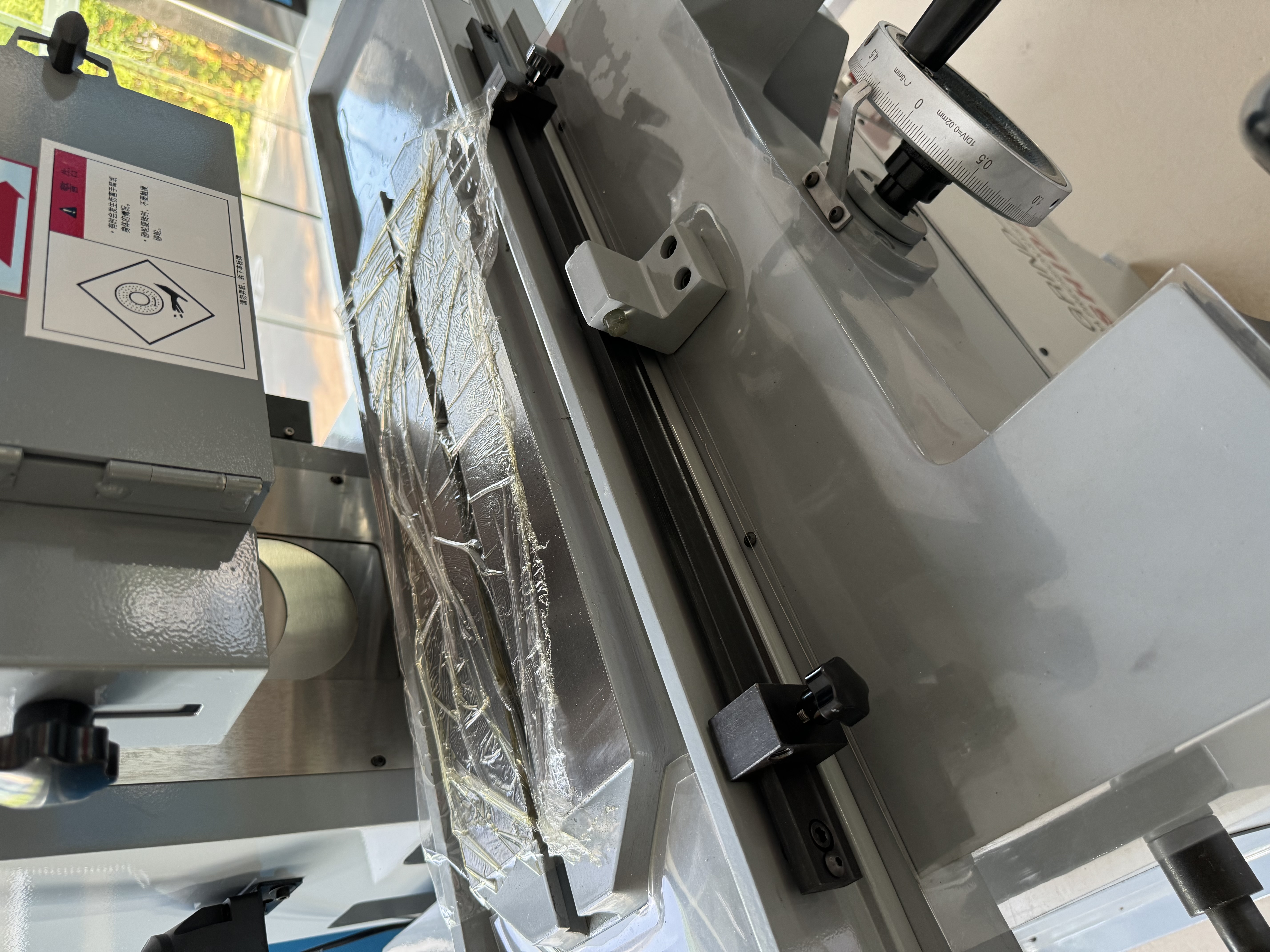

Why V-Flat Guideways Excel in Precision Surface Grinding

Surface grinding is not only about positioning accuracy but also about motion smoothness under load. The V-flat guideway design balances rigidity and flexibility, ensuring stable table travel even when handling heavy magnetic chucks or large workpieces. This balance is difficult to achieve with purely rolling systems.

Traditional Design, Modern Manufacturing

While modern CNC control and servo drives enhance automation and efficiency, they still rely on a mechanically sound foundation. V-flat guideways provide that foundation. When properly manufactured and assembled, they complement advanced control systems rather than limit them.

Conclusion: Proven Design for Precision and Reliability
