The Relationship Between Guideway Design and Surface Finish

2026-01-16 03:43:23

Introduction

In surface grinding, achieving a high-quality surface finish is not determined by the grinding wheel alone. The design and quality of the machine guideways play a critical role in controlling motion stability, vibration, and long-term accuracy. A well-engineered guideway system ensures smooth table movement, consistent feed rates, and reliable surface finishes—especially in high-precision applications.

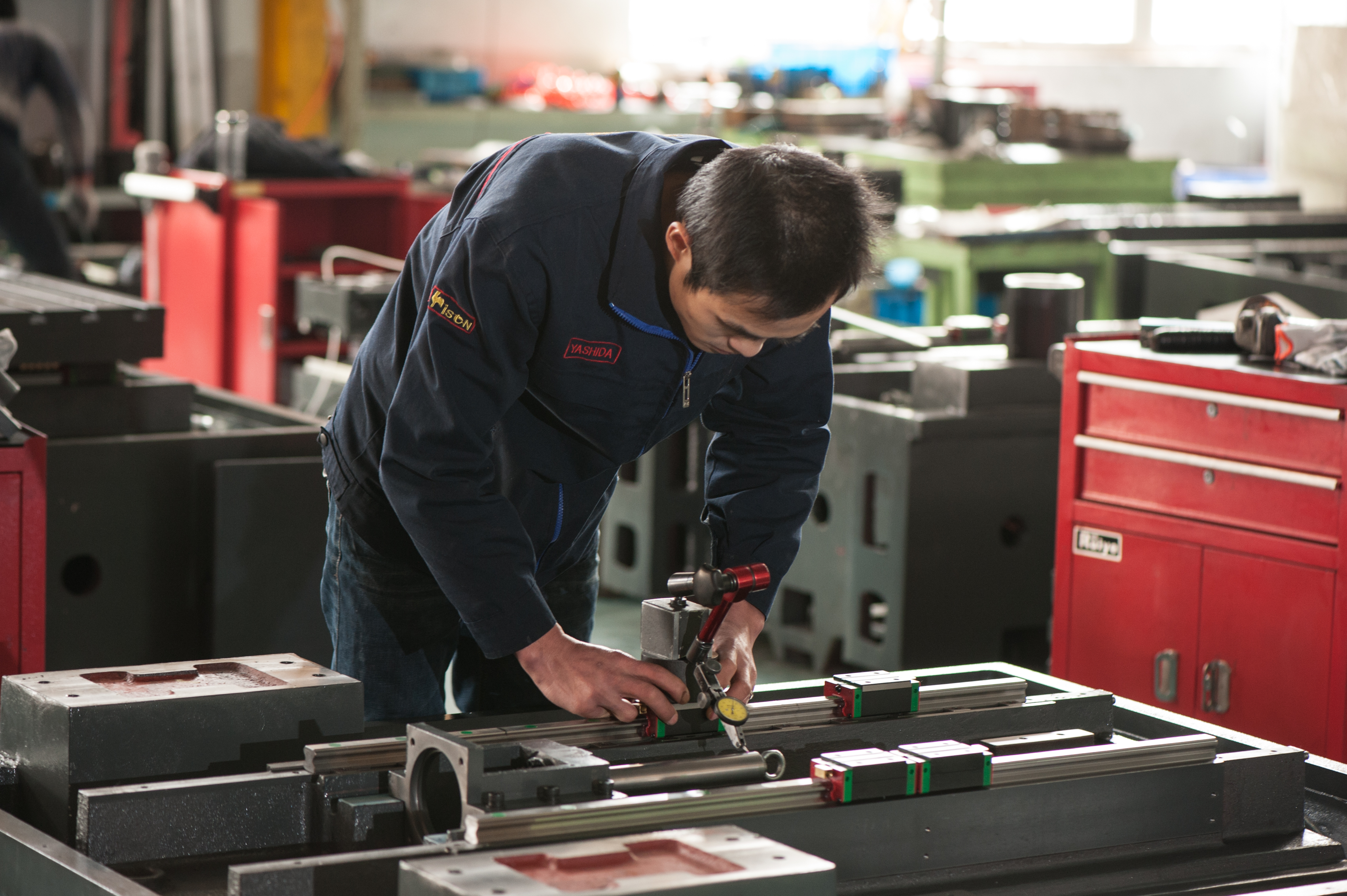

Why Guideway Design Matters in Surface Grinding

Guideways are responsible for guiding the table and saddle movements during the grinding process. Any irregular motion, stick-slip effect, or vibration directly translates into surface waviness, chatter marks, or inconsistent roughness on the workpiece.

A stable guideway design minimizes friction variation and distributes load evenly, allowing the grinding wheel to interact with the workpiece in a controlled and predictable manner. This is essential for achieving fine surface finishes and maintaining flatness over long production cycles.

V-Flat Guideway Structure: Stability and Accuracy

One of the most proven guideway configurations in precision machine tools is the V-flat (V & flat) guideway design. This structure provides accurate positioning in both horizontal and vertical directions while maintaining excellent load-bearing capability.

YASHIDA surface grinders adopt a “one V and one flat” guideway configuration on the worktable. This design ensures precise alignment, strong rigidity, and smooth motion even under heavy grinding loads, contributing directly to improved surface finish quality.

Wear-Resistant Coating and Reduced Guideway Wear

Friction and wear are inevitable challenges in sliding guideways. To address this, YASHIDA applies a wear-resistant coating to the guideway surfaces. This layer reduces metal-to-metal contact, lowers friction coefficients, and significantly slows down guideway wear.

By minimizing wear, the machine maintains consistent motion accuracy over time, ensuring that surface finish quality does not degrade after years of operation. This is especially important for manufacturers who rely on long-term dimensional stability.

Hand Scraping: Precision That Machines Alone Cannot Achieve

While modern machining methods offer high accuracy, hand scraping remains unmatched in achieving optimal contact patterns and oil retention on guideway surfaces. YASHIDA surface grinders undergo manual precision scraping by experienced technicians to ensure uniform contact and smooth movement.

This process enhances motion stability, improves damping characteristics, and reduces micro-vibrations during grinding. As a result, the worktable moves smoothly and reliably, allowing the grinder to produce superior surface finishes with reduced risk of chatter.

Long-Term Surface Finish Consistency

Surface finish quality is not only about achieving good results today—it is about maintaining that quality for years. The combination of V-flat guideway geometry, wear-resistant layers, and hand scraping enables YASHIDA surface grinders to retain their accuracy and smoothness over extended service life.

This engineering approach ensures that users experience stable performance, reduced maintenance requirements, and consistently high-quality surface finishes throughout the machine’s lifecycle.

Conclusion

The relationship between guideway design and surface finish is direct and undeniable. Precision guideways provide the foundation for smooth motion, vibration control, and long-term accuracy. By integrating V-flat guideway structures, wear-resistant coatings, and manual precision scraping, YASHIDA surface grinders deliver stable, reliable, and durable surface grinding performance—making them a dependable choice for high-precision manufacturing.
