The Role of Hand Scraping in High-Precision Surface Grinders

2025-11-28 03:20:14

Hand scraping is one of the oldest yet most dependable techniques in the machine tool industry. Despite the rise of CNC machining, laser measurement, and automated production, hand scraping continues to play an irreplaceable role in high-precision surface grinders. It is still the “secret weapon” behind ultra-stable accuracy, smooth motion, and long machine lifespan.

This article explains why hand scraping matters, how it improves grinding accuracy, and why premium manufacturers like YASHIDA continue to use this technique today.

1. What Is Hand Scraping?

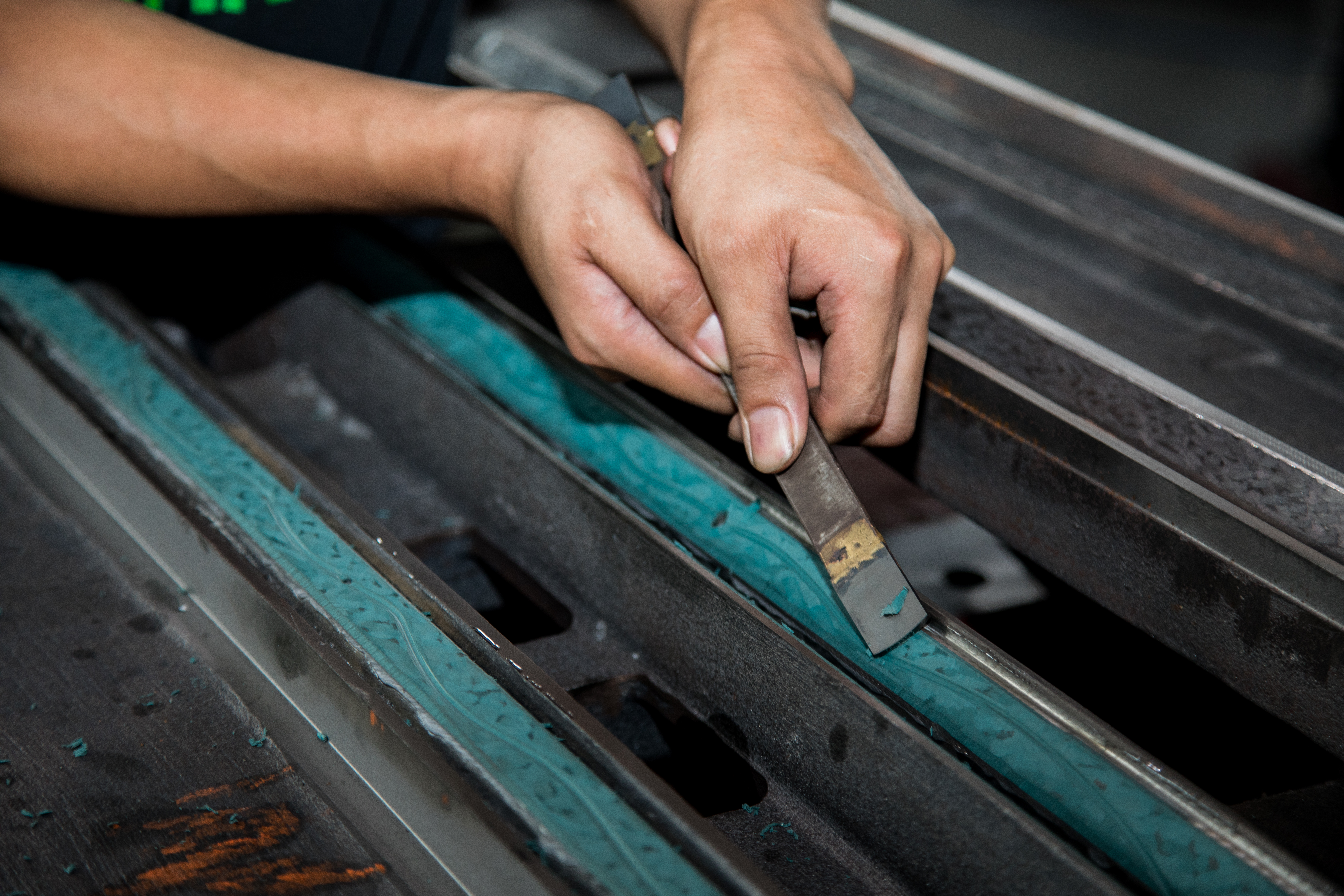

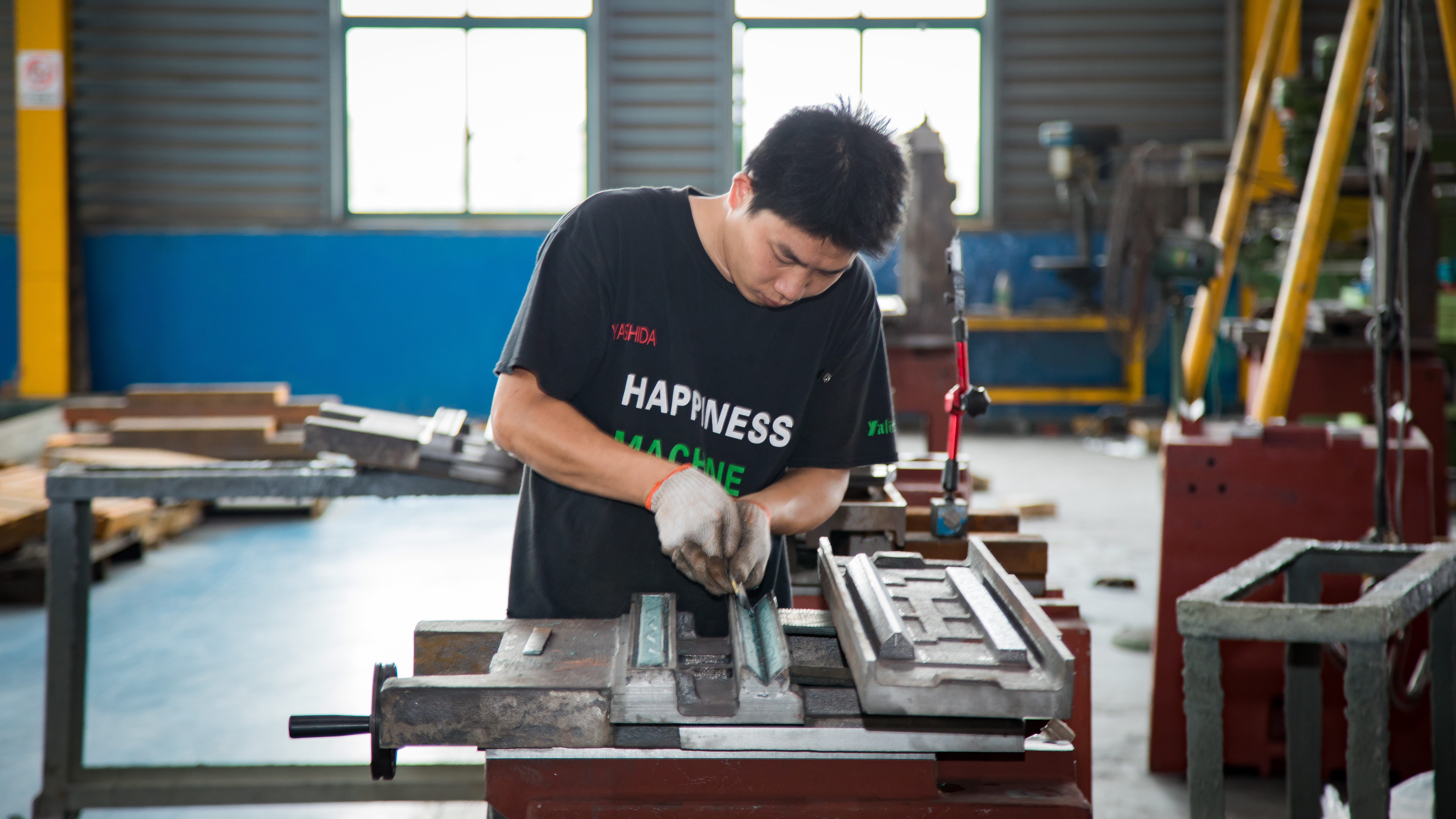

Hand scraping is a manual process where a skilled technician uses a scraper tool to remove microns of material from machine contact surfaces. Unlike machining, scraping is done with human insight, allowing adjustments based on feel, sound, and visual contact patterns.

Scraping is performed to:

• Correct flatness and straightness

• Improve contact ratio between surfaces

• Create small oil pockets for lubrication

• Reduce stick-slip and ensure smooth motion

• Increase long-term precision stability

This technique is applied to guideways, saddle surfaces, machine bases, and other critical areas.

2. Why High-Precision surface grinders Need Scraped Components

Surface grinding demands extremely tight tolerances. Even minor surface irregularities can cause vibration marks, poor finishes, or inconsistent accuracy.

Hand scraping enhances grinder performance in several ways:

Higher Geometric Accuracy

Scraping can achieve micro-level flatness and straightness beyond what CNC machining alone can deliver.

Better Rigidity and Vibration Control

Scraped surfaces create stable, uniform contact.
This improves structural damping, resulting in:

• Smoother grinding performance

• Reduced chatter or vibration marks

• Improved mirror-finish capability

Superior Lubrication Performance

Scraping naturally forms small, intentional oil pockets.
These micro-reservoirs ensure:

• Continuous lubrication

• Lower friction

• Less wear on moving parts

 Long-Term Precision Retention

Scraped guideways distribute load evenly, significantly extending machine lifespan while reducing accuracy degradation.

3. Hand Scraping in Modern Machine Construction

Even today, the most respected machine tool builders use hand scraping on:

• Machine base and column interfaces

• Table sliding surfaces

• Spindle mounting surfaces

• Linear guide and dovetail ways

These areas must align precisely to ensure grinding accuracy and long-term performance. No automated process can fully replace human adjustment in these critical zones.

4. Why Premium Manufacturers Still Use Hand Scraping

Although hand scraping is time-consuming and labor-intensive, high-end grinder manufacturers continue relying on it because:

• CNC machining alone cannot achieve ultra-high flatness

• Scraping dramatically improves motion smoothness

• It enhances structural stability and eliminates stick-slip

• Customers demand consistent high accuracy and surface finish quality

Scraping is one of the main reasons why premium surface grinders outperform low-cost alternatives over the long term.

5. YASHIDA’s Advantage: Hand-Scraped Precision

YASHIDA maintains strict standards in machine tool manufacturing, with every surface grinder and centerless grinder featuring fully hand-scraped mating surfaces.

In addition, YASHIDA machines use premium imported components from Japan and Taiwan, including:

• High-precision bearings

• Quality servo motors

• FC30 cast iron machine bases

• Precision-grade spindle and feed assemblies

While this increases manufacturing cost, it provides significant long-term benefits:

• Noticeably stronger rigidity

• Smoother machine movement

• Longer service life

• Superior accuracy retention

• Lower maintenance costs

This is why YASHIDA grinders consistently perform better and last longer than ordinary machines built without scraped components.

Conclusion

Hand scraping remains one of the most important techniques in creating high-precision surface grinders. It ensures:

• Higher grinding accuracy

• Smoother motion

• Better vibration control

• Longer lifespan

• Improved surface finish quality

For manufacturers aiming for stable, ultra-precise grinding results, hand-scraped guideways continue to be the gold standard.
