How Machine Casting Quality Affects Grinding Accuracy

2025-11-24 06:06:05

In precision grinding—whether using a surface grinder or a Centerless Grinding Machine—many people focus on the spindle, servo motors, control systems, and guideways. However, one of the most crucial but often overlooked factors is the quality of the machine casting (machine base). The casting is the foundational structure of the grinder, and its rigidity, stability, and vibration-absorbing capability have a direct impact on the grinding accuracy.

A high-quality grinder begins with a high-quality casting.

1. Why Machine Casting Matters in Grinding

A machine casting is more than just a frame; it determines the long-term durability and accuracy of the machine.

High-precision grinding requires:

• Stable geometry

• Minimal thermal deformation

• Strong vibration damping

• High rigidity to resist cutting forces

If the casting is poor, even the best CNC system, spindle, and servo motors cannot maintain micron-level accuracy.

2. Effects of Poor Casting Quality

Low-quality castings often lead to:

• Deformation and Loss of Accuracy

Internal stress inside inferior cast iron causes deformation over time, reducing flatness, straightness, and repeatability.

• Poor Vibration Absorption

Vibration transfers directly to the workpiece, leading to:

• Burn marks

• Chatter patterns

• Poor surface finish

• Reduced Mechanical Rigidity

This results in unstable grinding performance and inconsistent dimensions.

• Faster Wear of Guideways and Spindle

The machine wears unevenly due to shifting casting geometry.

3. How High-Quality Castings Improve Grinding Accuracy

High-quality castings use premium materials such as FC30 or Meehanite cast iron, properly aged and stress-relieved. This provides:

• High Rigidity

Maintains structural stability during heavy grinding.

• Excellent Vibration Damping

Ensures smoother grinding and better surface finish.

• Long-Term Dimensional Stability

Prevents accuracy drift even after years of use.

• Enhanced Precision Output

A stable frame enables the spindle, guideways, and CNC controls to perform at optimal levels.

4. YASHIDA’s Advantage: Premium Casting for High Accuracy

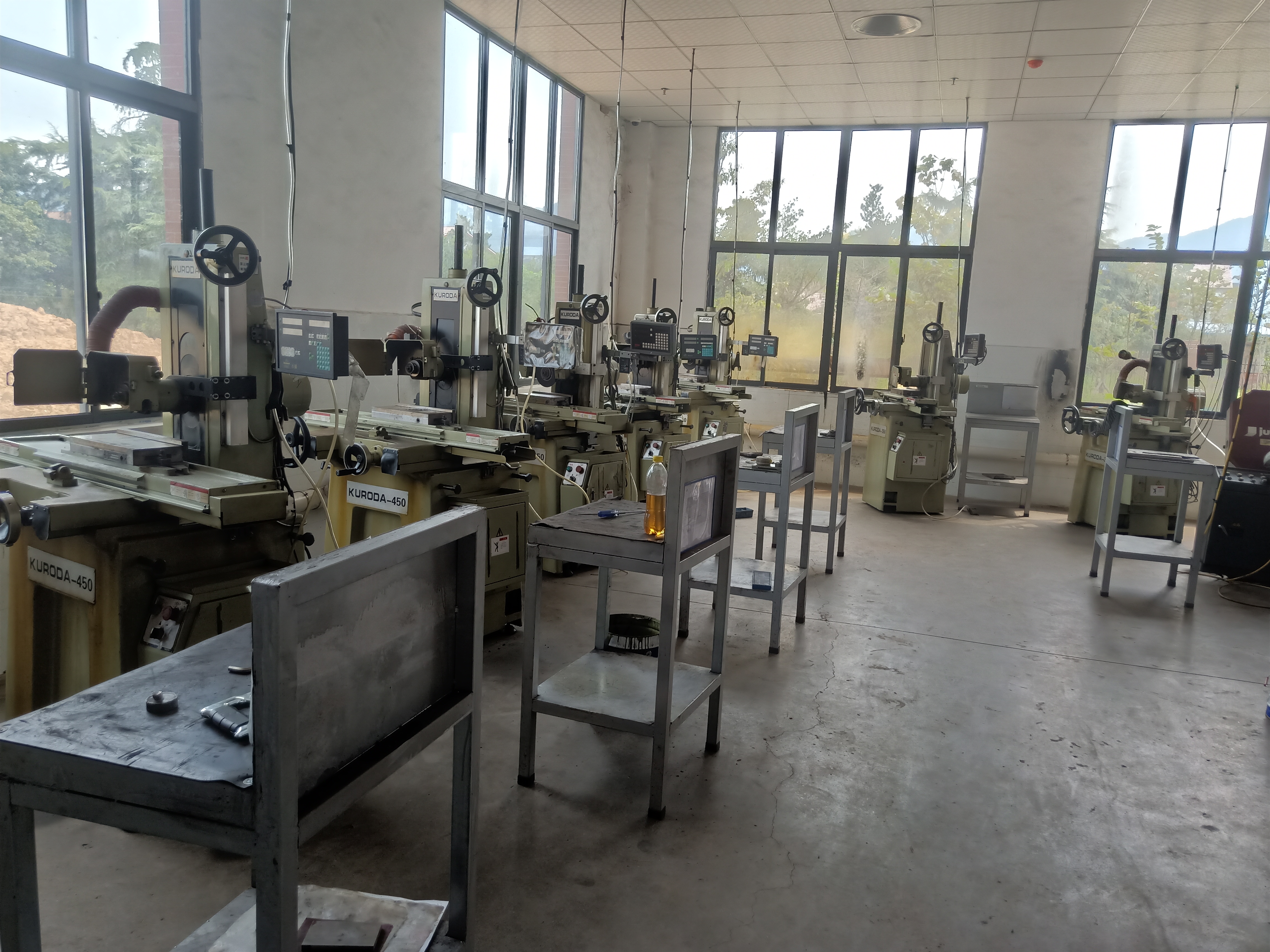

YASHIDA grinding machines—both surface grinders and CNC centerless grinders—are known for exceptional long-term accuracy because of rigorous casting quality control.

Key advantages include:

• FC30 high-rigidity cast iron base

• Full aging and stress-relief treatment

• Hand scraping by Japanese-trained technicians

• Superior vibration damping for mirror-finish grinding

• Micron-level accuracy maintained long-term

YASHIDA does not pursue mass production but focuses on craftsmanship and quality. Each machine base is carefully inspected, hand-finished, and built for decades of stable accuracy.

5. Conclusion

A grinding machine is only as accurate as its casting.
If the base is unstable, precision will always drift—no matter how advanced the CNC system is.

Investing in a grinder with high-quality castings ensures:

• Long-term stability

• Better surface finish

• Higher production consistency

• Lower maintenance cost

For manufacturers seeking reliable precision, choosing a grinder with premium castings—like those from YASHIDA—provides the strongest foundation for long-term success.
