How to Achieve a Mirror Finish with a Surface Grinder

2025-11-18 03:06:09

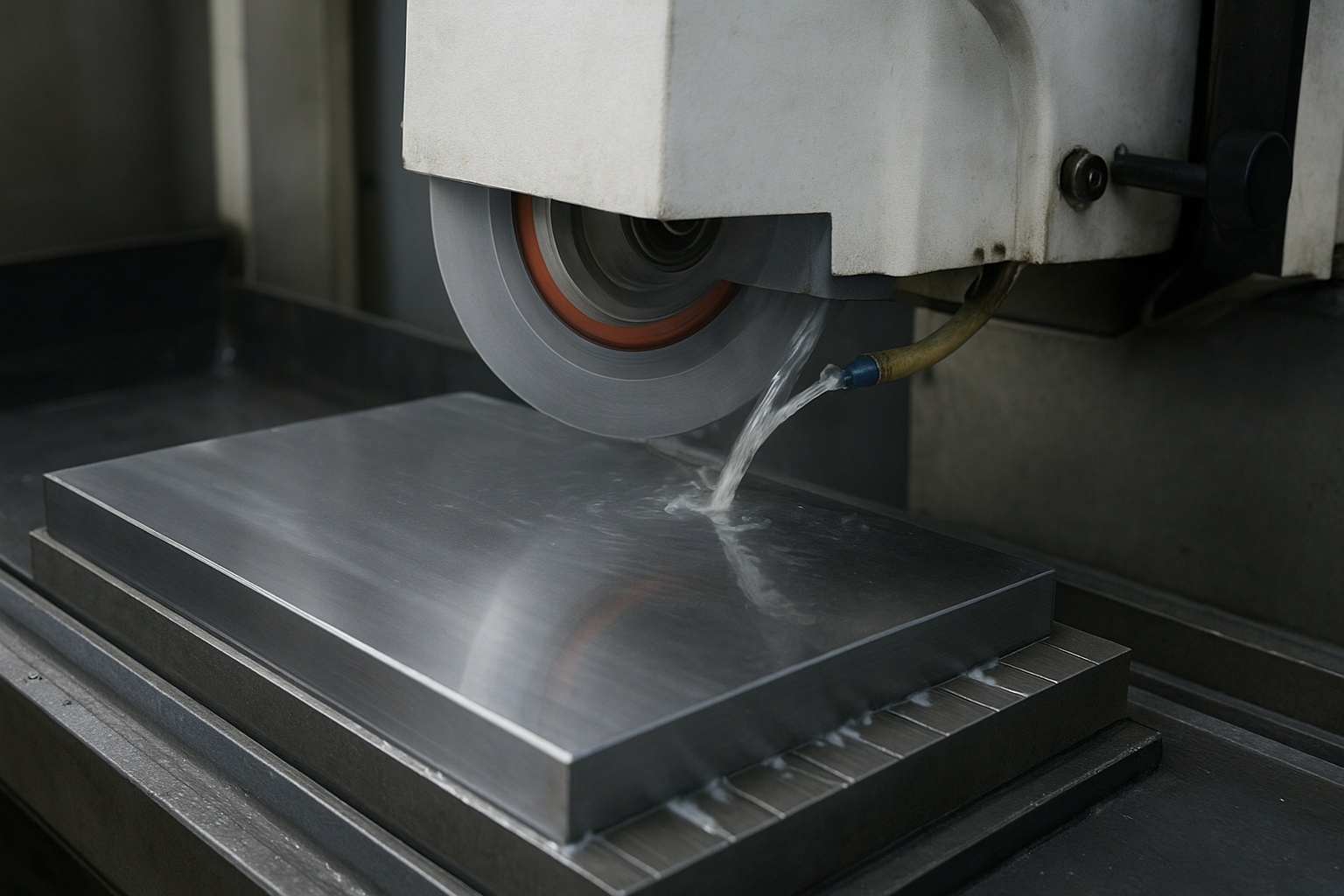

Achieving a mirror finish with a surface grinder is considered one of the highest-level skills in precision machining. A true mirror surface has almost no visible machining marks, offers extremely low surface roughness (often Ra 0.05–0.2 μm), and reflects light like a polished piece of glass. Such finishes are required in industries like mold manufacturing, semiconductor processing, medical device components, aerospace tooling, and precision die sets.

In this article, we explain the techniques, machine requirements, and operational tips to achieve a true mirror finish using a Surface Grinding Machine.

What is a Mirror Finish in Grinding?

A mirror finish is an ultra-smooth surface created by extremely fine grinding and polishing, where:

• Surface roughness is less than Ra 0.2 μm

• Tool marks are invisible to the naked eye

• The surface clearly reflects surrounding objects

This finish is not just aesthetic—it's essential for parts requiring tight sealing, minimal friction, or high mold release quality.

Machine Requirements for Mirror Finishing

To produce a mirror finish reliably, your surface grinding machine must offer:

✔ High Rigidity and Precision

The machine base must resist thermal distortion and vibration. A high-quality cast iron structure (like FC30) is ideal.

✔ High-Precision Spindle

A hydrodynamic or hybrid spindle provides low friction and stable rotation at high accuracy.

✔ Minimal Backlash

Ball screws and servo motors allow precise micron-level motion, especially for CNC grinders.

✔ Stable Damping and Geometry

Machines using hand scraping technology offer superior damping and long-lasting accuracy.

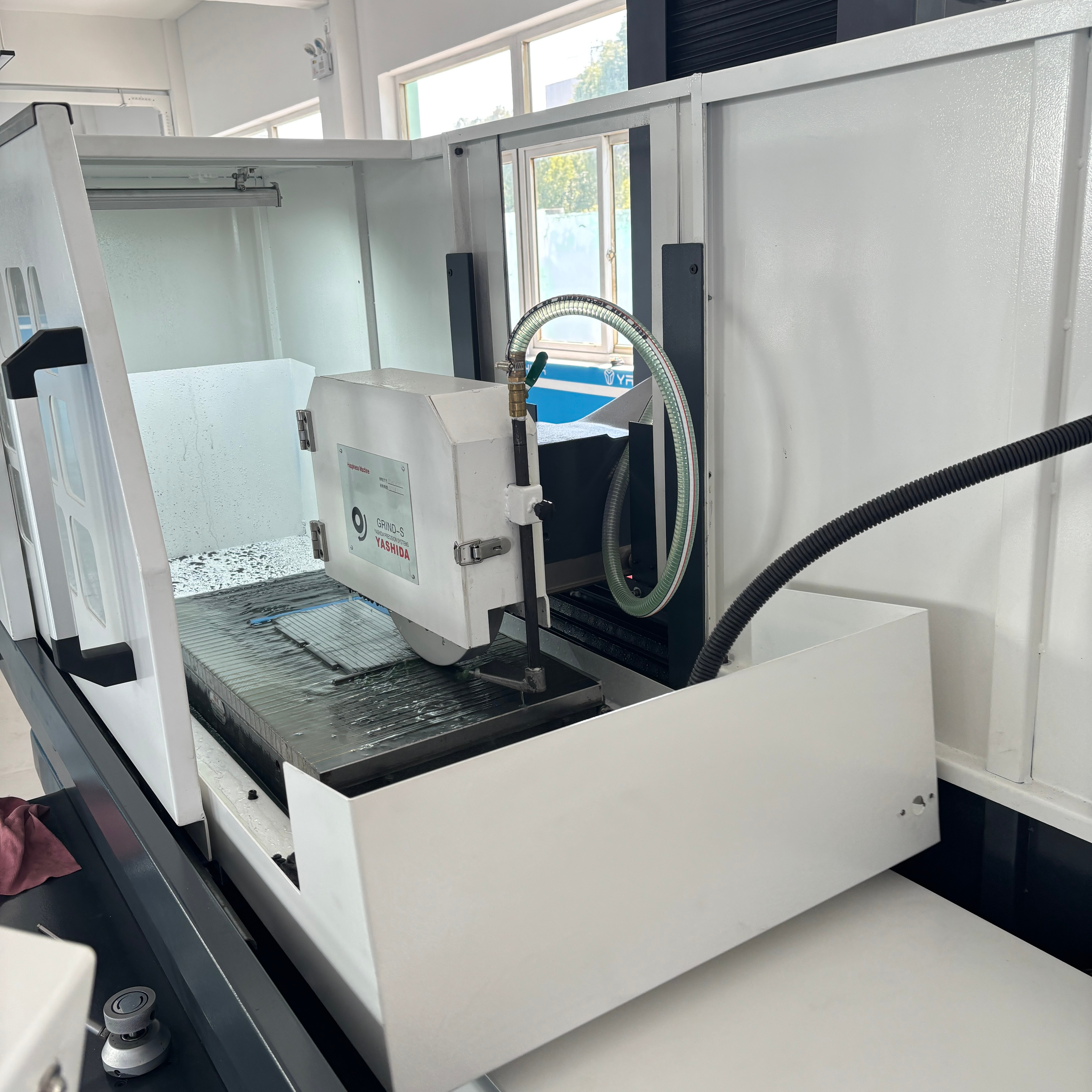

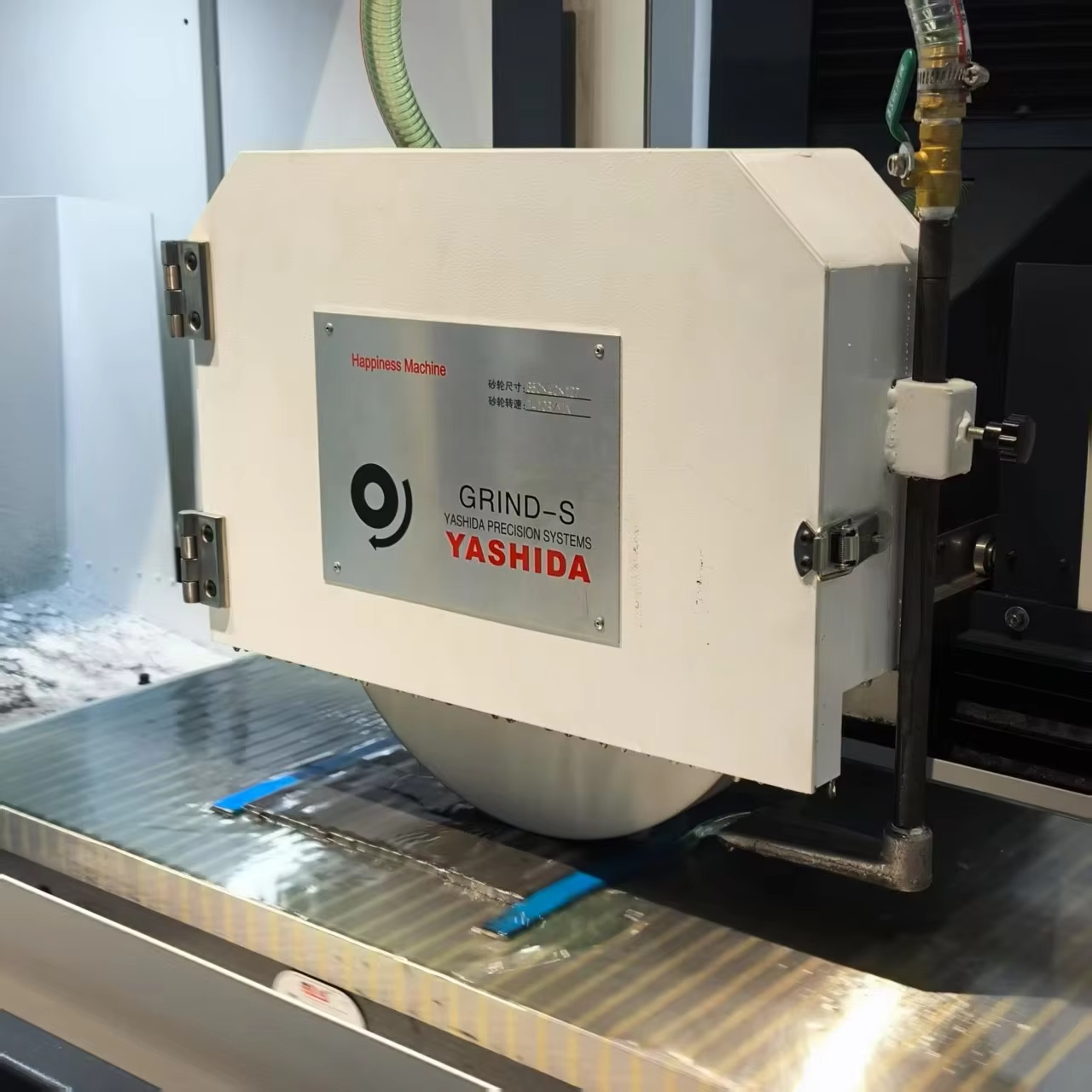

YASHIDA surface grinders use Japanese hand scraping to achieve up to 2μm manual and 3μm CNC precision, making them suitable for mirror-finish applications.

Essential Tools and Abrasives

To achieve mirror finish grinding, the following are recommended:

Step-by-Step Guide to Achieving Mirror Finish

1. Machine Preparation

• Check spindle bearings and lubrication

• Ensure table and magnetic chuck are clean

• Verify wheel balance and dressing

• Warm up machine before finishing

2. Precision Wheel Dressing

Use a diamond dresser or rotary dresser for:

• Sharper cutting edges

• Improved surface contact

• Reduced wheel wear marks

3. Ultra-Fine Grinding Parameters

Typical finishing parameters:

• Feed: 0.005–0.02 mm per pass

• Downfeed: 0.001–0.003 mm

• Speed: Moderate to high spindle RPM

• Coolant: Clean, filtered, high flow rate

4. Coolant & Temperature Control

Mirror finishing requires:

• Stable coolant temperature

• Minimal heat input

• Clean filtration (paper or magnetic separator)

5. Final Polishing (Optional)

If required, use diamond paste or lapping film to remove micro scratches.

Common Errors to Avoid

❌ Grinding too aggressively
❌ Using a dull or improperly dressed wheel
❌ Grinding with vibration or heat buildup
❌ Poor coolant condition
❌ Using a grinder with low accuracy or worn components

Why Choose YASHIDA for Mirror Finish Grinding

YASHIDA grinding machines excel in ultra-precision finishing because:

• Manual grinding accuracy up to 2 microns

• CNC accuracy within 3 microns

• Japanese hand scraping technology for stability & damping

• Imported spindle, bearings, and servo motors

• Optional automation and digital grinding control

High precision doesn’t require a high price. YASHIDA costs only 1/3 the price of Japanese brands with similar configurations.

Conclusion

Achieving a mirror finish is a combination of:
✔ A highly accurate, rigid surface grinder
✔ Proper wheel selection and dressing
✔ Correct grinding parameters
✔ Skilled operation and cooling management

With the right machinery—especially a high-precision grinder like YASHIDA—mirror surface grinding becomes repeatable, efficient, and cost-effective for modern manufacturing industries.
