In modern precision manufacturing, every second and every micron matters. The Surface Grinding Machine plays a critical role in achieving smooth, flat, and accurate surfaces. Yet, one often overlooked component that greatly impacts grinding efficiency is the magnetic chuck.
A magnetic chuck is a workholding device used on surface grinders to securely hold ferromagnetic workpieces during the grinding process. By providing a stable and vibration-free platform, it significantly improves grinding accuracy, reduces setup time, and increases overall productivity.
In this article, we’ll explore how magnetic chucks enhance the performance of a surface grinder and why investing in a high-quality magnetic chuck—such as those used in YASHIDA Surface Grinders—can make a major difference in machining results.

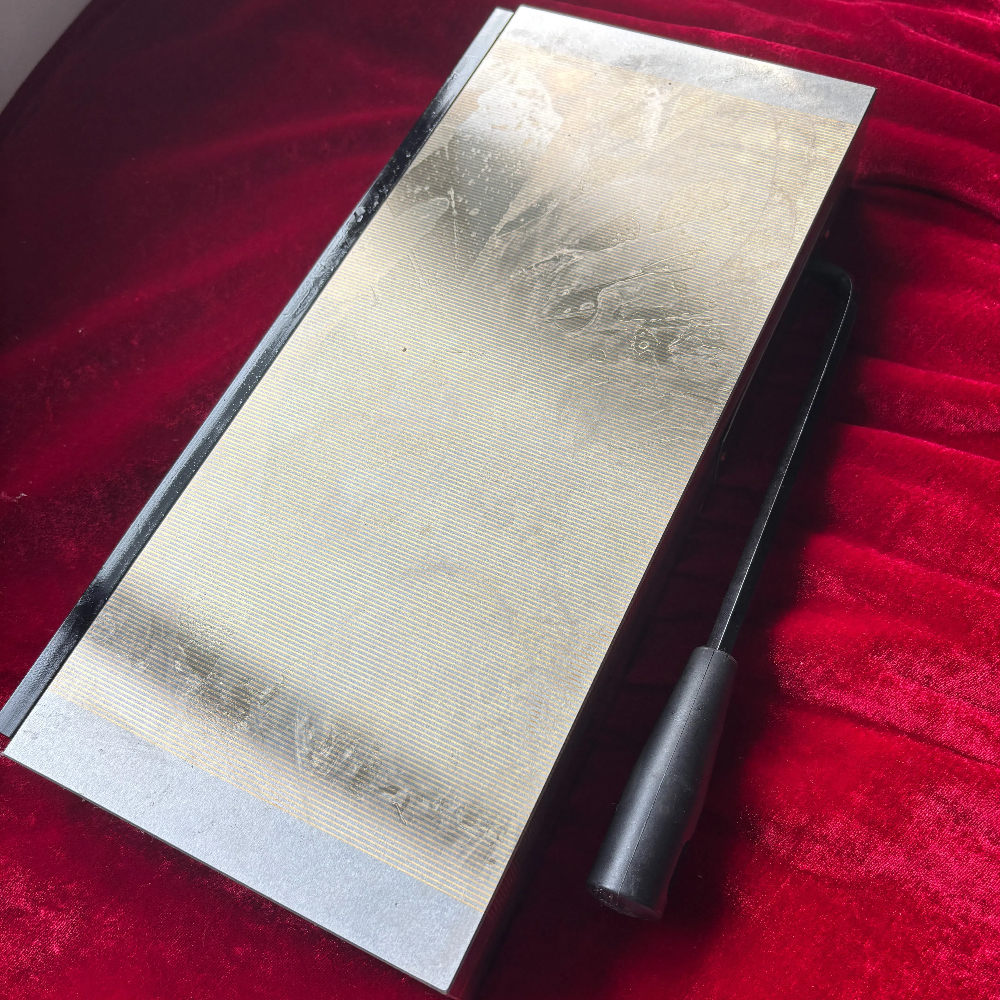

A magnetic chuck is a specialized workholding device that uses a magnetic field to hold metallic workpieces firmly against the grinder’s table. Unlike traditional mechanical clamps or vises, it allows full surface access for grinding operations without deformation or movement.
Magnetic chucks come in several types, including permanent magnetic chucks, electromagnetic chucks, and electro-permanent magnetic chucks, each offering specific benefits depending on the application and workpiece type.
Traditional mechanical clamping methods require multiple adjustments and fixtures for each workpiece.
In contrast, a magnetic chuck allows the operator to simply place the workpiece on the surface and activate the magnet. This can reduce setup time by up to 50–70%, especially in high-volume production environments.
For manufacturers using CNC surface grinders, this time savings directly translates to higher output and reduced downtime.
During surface grinding, even the smallest vibration or movement can cause surface irregularities. A magnetic chuck ensures the workpiece remains perfectly flat and stable throughout the operation.
This results in:
Improved surface finish quality
Higher dimensional accuracy
Reduced rework or scrap rate
High-precision brands like YASHIDA utilize finely scraped bases and balanced magnetic fields to ensure stable holding power without distorting the workpiece—crucial for applications in mold, tooling, and precision component manufacturing.
Magnetic chucks eliminate the need for manual clamping, reducing the risk of accidents or finger injuries. Operators can quickly position workpieces and focus on fine-tuning grinding parameters instead of dealing with mechanical fixtures.
This not only boosts safety but also improves operator efficiency, particularly in precision surface grinder operations requiring frequent part changes.
Because the magnetic chuck holds the workpiece from below, the grinding wheel has unobstructed access to the entire top surface.
This ensures uniform grinding, even on thin or delicate components that would otherwise deform under clamping pressure.
For industries like semiconductor, mold, and precision tooling, where surface flatness and consistency are paramount, magnetic chucks are essential tools for achieving the desired finish.
When selecting a magnetic chuck, it’s important to consider factors such as:
Holding power: Must match the material and thickness of the workpiece.
Size compatibility: Should fit the grinding table and allow full magnetic coverage.
Heat resistance: Important for long grinding cycles.
Surface flatness: A precision-ground chuck top ensures even holding force.
YASHIDA, a trusted grinding machine manufacturer, equips its CNC surface grinding machines with high-quality magnetic chucks that provide uniform magnetic force distribution and exceptional holding stability. These chucks are designed for minimal thermal deformation and optimal magnetic performance even in long production runs.
To keep your magnetic chuck performing at peak efficiency:
Regularly clean the surface to prevent dust and coolant buildup.
Demagnetize the chuck before maintenance or storage.
Inspect for scratches or wear marks that could affect holding power.
Use anti-rust oil to protect the chuck surface from corrosion.
Proper care ensures consistent holding performance and prolongs the life of both the chuck and your surface grinding machine.
A magnetic chuck is far more than just an accessory—it’s a key factor in achieving efficiency, precision, and safety in surface grinding. By minimizing setup time, improving stability, and ensuring uniform finishing, magnetic chucks elevate the performance of any surface grinder.

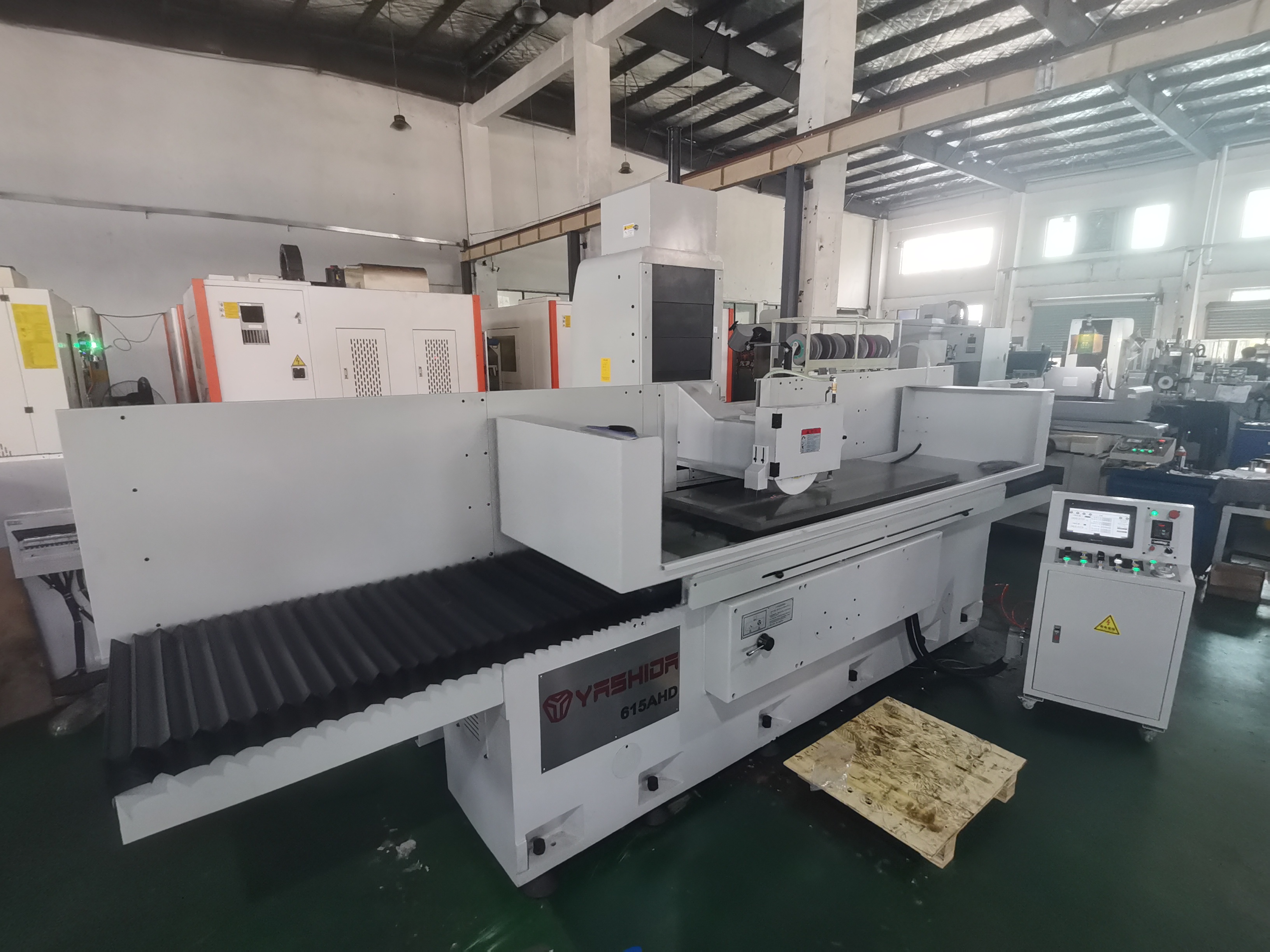

YASHIDA Surface Grinders, equipped with precision magnetic chucks and Japanese hand-scraped foundations, deliver superior flatness and accuracy that meet the demands of advanced manufacturing industries.
If you’re looking for a surface grinding machine for sale that offers unbeatable performance and value, explore YASHIDA’s CNC and Manual surface grinders today.
Get the precision, stability, and quality you deserve—at a Surface Grinding Machine Price that makes sense for your business.
