How to Detect and Correct Grinding Accuracy Deviation

2025-10-29 08:25:27

1. What Is Grinding Accuracy Deviation?

Grinding accuracy deviation refers to the difference between the actual machined result and the desired dimensional or surface accuracy.
These deviations can occur due to multiple factors, including:

• Machine wear or vibration

• Improper dressing of the grinding wheel

• Thermal deformation

• Incorrect workpiece clamping

• Insufficient lubrication or contamination

Even a deviation of 2–3 microns can affect the performance of high-precision components such as bearings, molds, and hydraulic parts.

2. How to Detect Grinding Accuracy Deviation

Regular inspection and measurement are the first steps in maintaining high precision.
Here are several effective detection methods:

① Dimensional Measurement

Use micrometers, dial gauges, or coordinate measuring machines (CMMs) to check the dimensions of finished parts. Any deviation from design tolerance may indicate a problem with machine accuracy.

② Surface Flatness and Roughness Test

Use surface roughness testers and optical flatness instruments to evaluate the surface quality. A sudden increase in roughness often points to a dull or unbalanced grinding wheel.

③ Runout and Parallelism Test

Use a dial indicator to check table parallelism and spindle runout. A reading beyond 0.002 mm suggests that re-adjustment or maintenance is needed.

④ Temperature and Vibration Monitoring

Install temperature sensors and vibration analyzers on critical components of the CNC surface grinder. Continuous data monitoring helps detect early-stage deviations caused by thermal expansion or mechanical imbalance.

3. Common Causes of Grinding Accuracy Problems

(1) Machine Geometry Deformation

Over time, the table guideways and spindle bearing seats may wear, leading to uneven movement or tilt.

YASHIDA surface grinding machines use hand-scraped guideways — a traditional Japanese process that ensures long-term mechanical accuracy and smooth movement.

(2) Grinding Wheel Issues

An unbalanced or poorly dressed wheel can introduce vibration and affect the surface finish.
Solution: Perform wheel balancing and regular dressing using a diamond dresser.

(3) Thermal Deformation

Continuous operation generates heat, causing spindle expansion and table deformation.
Solution: Maintain a constant coolant temperature and use proper lubrication systems.

(4) Improper Setup or Clamping

Incorrectly clamped workpieces or uneven magnetic chuck holding can lead to taper or unevenness.
Solution: Re-level the workpiece and ensure uniform magnetic force distribution.

4. How to Correct Grinding Accuracy Deviation

① Machine Re-Calibration

Perform geometric accuracy calibration periodically — check table straightness, parallelism, and spindle perpendicularity.
High-end manufacturers like YASHIDA offer professional alignment and calibration services for their Surface Grinding Machines.

② Hand Scraping and Adjustment

If guideways are worn, skilled technicians can restore precision by manual scraping, a traditional technique that improves contact accuracy and oil retention.
This is one of the secrets behind YASHIDA’s long-lasting grinding accuracy.

③ Maintain Clean Lubrication

Contaminated oil or coolant can cause uneven lubrication and vibration. Replace lubricants regularly and keep filters clean.

④ Replace Worn Components

Inspect and replace spindle bearings, ball screws, or hydraulic seals if necessary to maintain performance.

5. Preventive Maintenance Tips

To avoid recurring deviations, follow these maintenance principles:

• Perform daily inspection before operation (check oil level, temperature, vibration).

• Clean the magnetic chuck and grinding wheel area after each use.

• Schedule monthly precision checks using dial gauges and test blocks.

• Keep a maintenance log for long-term accuracy tracking.

A properly maintained surface grinding machine can maintain ±2μm precision for years, minimizing production losses and ensuring consistent part quality.

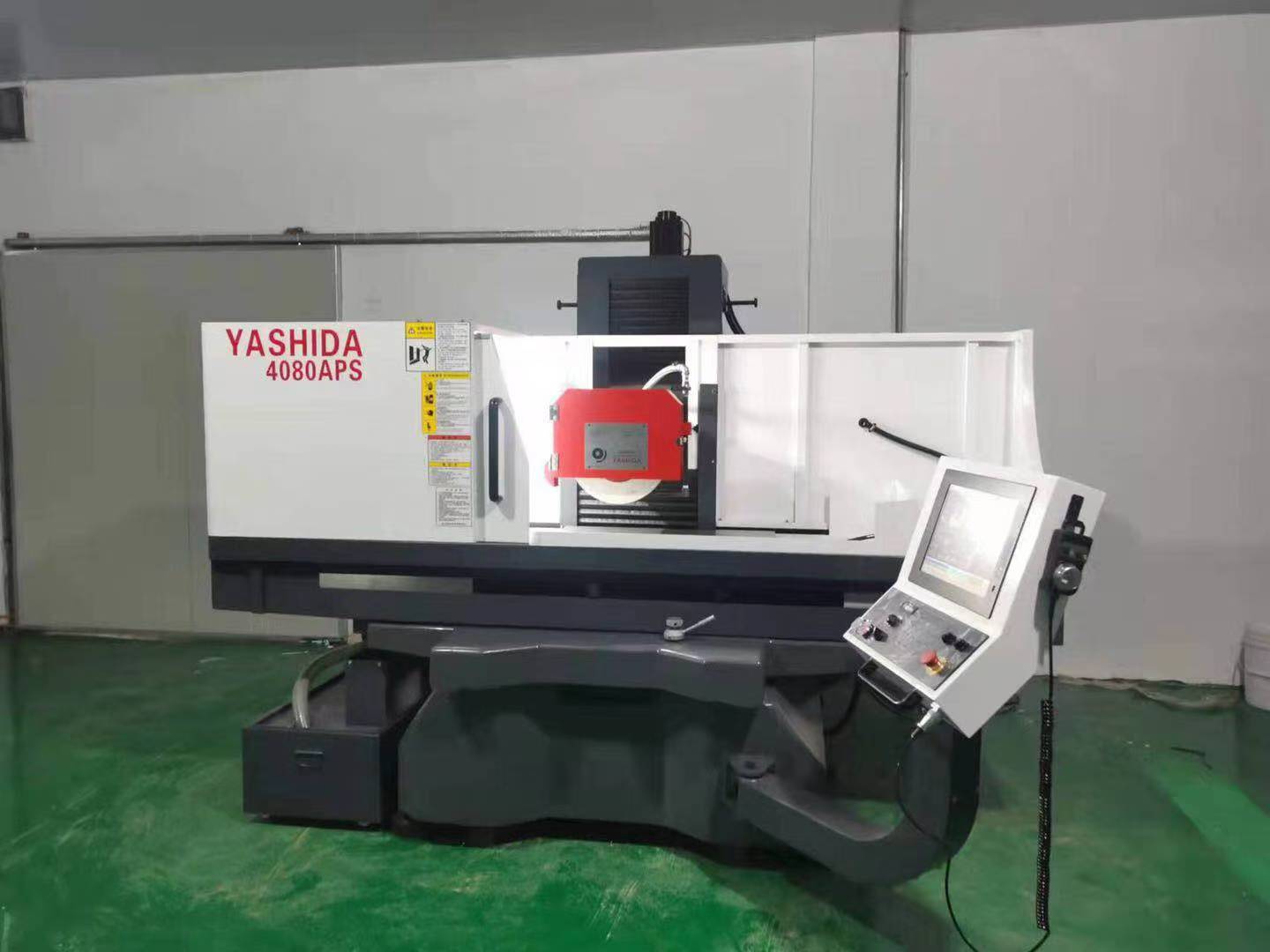

6. Why YASHIDA surface grinders Maintain Superior Accuracy

YASHIDA’s machines are engineered for precision and stability.
Key advantages include:

• Hand-scraped guideways for ultra-smooth movement and minimal wear.

• Servo motor drive system for higher positional accuracy than stepper motors.

• Imported Japanese and Taiwanese components for long-term reliability.

• Competitive surface grinding machine price without compromising quality.

YASHIDA grinders are widely used in mold manufacturing, automotive parts, new energy battery equipment, and precision components industries.

Conclusion

Maintaining grinding accuracy is not just about high-end equipment — it’s about proper inspection, adjustment, and care.
By learning how to detect and correct grinding accuracy deviation, manufacturers can ensure long-term precision and performance from their machines.

If you are looking for a surface grinding machine for sale, or want to upgrade to a CNC surface grinder with long-term accuracy stability, contact YASHIDA — your trusted grinding machine manufacturer for precision and reliability.
