What Is a Centerless Grinder and How Does It Work?

2025-10-22 05:34:59

In modern precision machining, the  has become an indispensable tool for achieving high-efficiency and high-accuracy production.
Unlike traditional cylindrical grinders,  do not require the workpiece to be clamped or held between centers. Instead, the workpiece is supported between two rotating wheels — a grinding wheel and a regulating wheel — and a work rest blade.

This design allows for faster cycle times, consistent accuracy, and mass production of cylindrical parts such as bearing races, shafts, pins, and rollers.

1. What Is a Centerless Grinder?

A centerless grinder is a type of Precision Grinding Machine that removes material from the outside diameter of a workpiece without using a spindle or center to hold it.
The workpiece is supported and rotated by a combination of the regulating wheel and grinding wheel, while resting on a work rest blade.

This unique setup provides three-point contact that ensures stability, precision, and excellent roundness of the finished part.

There are two primary types of centerless grinding:

• Through-feed grinding – where the workpiece passes continuously between the wheels.

• In-feed (plunge) grinding – where the workpiece is fed into the wheel for precise grinding of specific sections or shoulders.

•

2. How Does a Centerless Grinder Work?

A Centerless Grinding Machine operates based on the following three key components:

1. Grinding Wheel – Performs the actual material removal through abrasive action.

2. Regulating Wheel – Controls the rotation speed and feed rate of the workpiece.

3. Work Rest Blade – Supports the workpiece and determines its center height.

During operation:

• The grinding wheel rotates at a high speed to remove material.

• The regulating wheel rotates slower, guiding and feeding the workpiece forward.

• The work rest blade keeps the workpiece stable between the two wheels.

The precision of a centerless grinder depends on the perfect alignment of these three elements, as well as machine rigidity and component quality.

3. Advantages of Centerless Grinding

Centerless grinding offers several unique benefits compared with other grinding methods:

• ✅ High Productivity: Continuous feed allows for high-volume production with minimal downtime.

• ✅ Excellent Roundness and Surface Finish: Ideal for parts requiring high geometric accuracy.

• ✅ No Need for Centering: Saves time by eliminating the setup of centers or fixtures.

• ✅ Suitable for Small or Fragile Parts: Perfect for parts that cannot be easily clamped.

• ✅ Reduced Operator Skill Requirement: Once set, CNC systems maintain accuracy automatically.




4. CNC Centerless Grinding: Smarter and More Precise

Modern CNC centerless grinding machines use servo-controlled systems to achieve micron-level accuracy and consistent performance.
CNC systems can control the feed rate, grinding depth, and wheel speed digitally, ensuring repeatable results across large production runs.

5. Applications of Centerless Grinders

Centerless grinding machines are widely used across many precision industries, including:

• Bearing manufacturing – for inner and outer rings, rollers, and pins.

• Automotive – for shafts, valves, and piston pins.

• Hydraulic components – for precision rods and spools.

• Medical devices – for surgical tools and small cylindrical parts.

• Aerospace – for critical round components with strict tolerances.

•

6. How to Choose the Right Centerless Grinder

When purchasing a centerless grinding machine for sale, consider the following:

• Grinding accuracy (micron-level precision required)

• Automation level (manual vs CNC control)

• Workpiece size and material

• Machine rigidity and wheel quality

• After-sales support from the grinding machine manufacturer

A reliable grinding machine manufacturer like YASHIDA offers machines with high stability, superior component quality, and excellent cost-performance ratio.

7. Centerless Grinding Machine Price and Value

The centerless grinding machine price varies depending on configuration, CNC control, and machine size.
While CNC models have a higher initial cost, their precision, automation, and lower scrap rate provide faster ROI.

For example:

• Manual centerless grinder: Affordable, good for small-scale workshops.

• CNC centerless grinder: Best choice for mass production and consistent accuracy.

Conclusion

A centerless grinder is one of the most efficient solutions for high-precision cylindrical grinding.
By eliminating the need for centers and fixtures, it enables faster production and better roundness.

Upgrading to a CNC centerless grinding machine brings automation, higher precision, and long-term value.

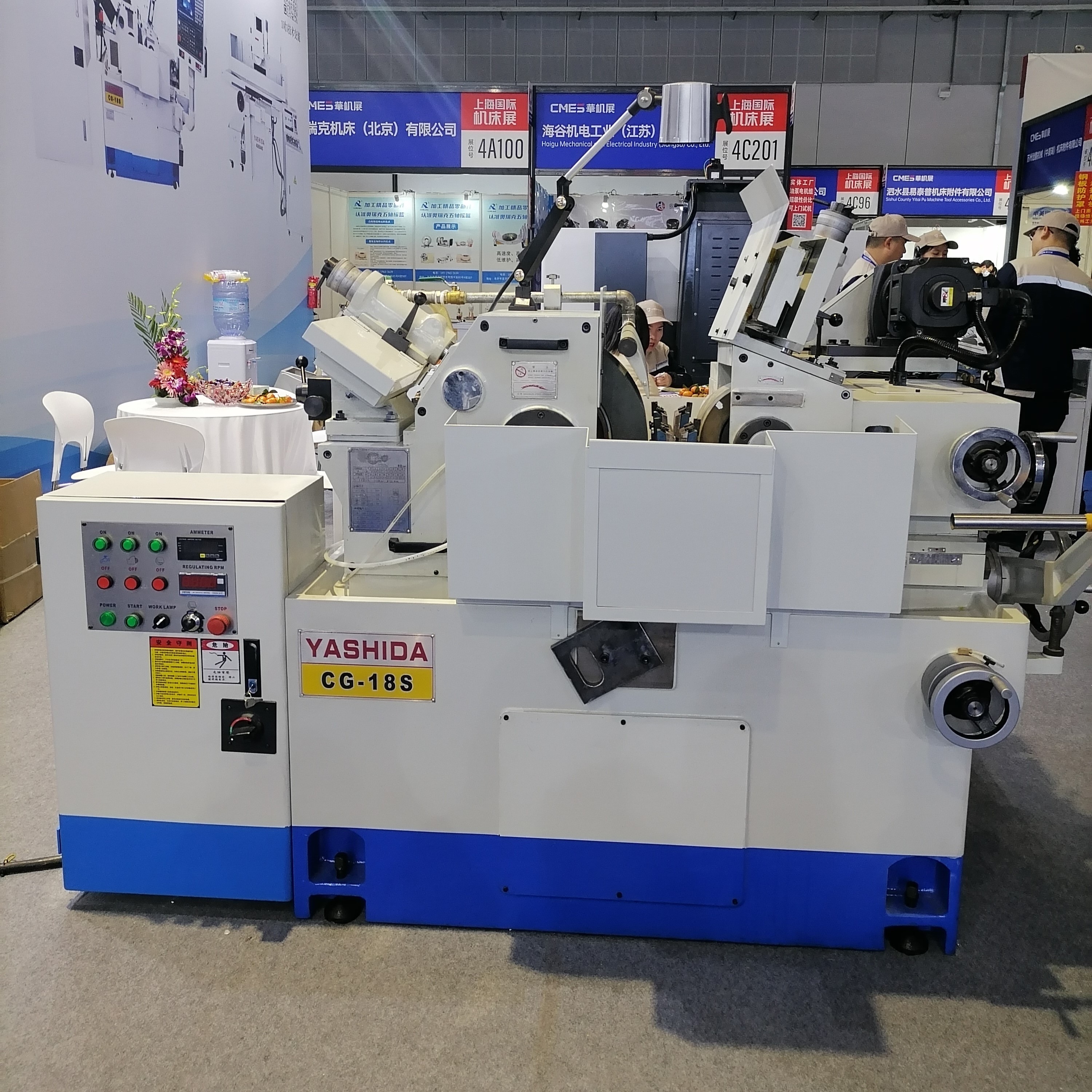

YASHIDA, a professional grinding machine manufacturer, integrates traditional Japanese craftsmanship with modern CNC technology, offering reliable and cost-effective centerless grinding machines for sale that meet global industrial standards.

Explore YASHIDA Centerless Grinders and experience precision, stability, and efficiency redefined.
