How Beginners Can Quickly Master Centerless Grinding Machine Operation

2025-10-11 08:46:26

1. Understanding the Working Principle

Unlike traditional cylindrical grinders, a centerless grinder does not require a spindle to hold the workpiece. Instead, the workpiece is supported between two wheels — the grinding wheel and the regulating wheel — and sits on a workrest blade.

• The grinding wheel removes material from the surface.

• The regulating wheel controls rotation speed and feed rate.

• The workrest blade provides stable support during grinding.

This setup allows for continuous feeding and high efficiency, making it ideal for mass production of small cylindrical components.

2. Learn the Two Main Grinding Methods

1. Through-Feed Grinding
   The workpiece passes continuously between the wheels — perfect for long, cylindrical parts like rods or shafts.

2. In-Feed (Plunge) Grinding
   The workpiece is held stationary while the grinding wheel moves toward it — ideal for parts with steps, shoulders, or different diameters.

Understanding when to use each method is essential for efficient production.

3. Step-by-Step Operation Guide for Beginners

1. Preparation and Inspection

• Check machine cleanliness, lubrication, and coolant levels.

• Inspect the grinding and regulating wheels for cracks or uneven wear.

• Confirm all safety guards are properly installed.

2. Wheel Setup and Dressing

• Adjust the regulating wheel angle to control feed direction.

• Dress both wheels to ensure concentricity and sharp cutting edges.

• YASHIDA grinders provide stable dressing systems for consistent accuracy.

3. Workrest Blade Positioning

• Set the height of the blade slightly below the centerline of the grinding and regulating wheels (commonly 0.01–0.02 mm lower).

• Ensure smooth surface contact to avoid vibration and burn marks.

4. Trial Grinding and Adjustment

• Start with a small feed and observe contact between wheels and workpiece.

• Fine-tune regulating wheel speed and inclination angle for best roundness and surface finish.

5. Quality Check

• Measure workpiece diameter, roundness, and surface roughness.

• Record parameters for stable mass production.

4. Tips for Quick Skill Improvement

• Observe and Learn: Watch experienced operators, especially during setup and dressing.

• Keep Records: Document wheel dressing data, feed speed, and workpiece results.

• Start with YASHIDA Machines: YASHIDA Centerless Grinding Machines are known for easy operation, high precision (within 3μ), and stable performance. Beginners can achieve accurate results faster thanks to their ergonomic design and stable mechanical structure.

5. Why YASHIDA Centerless Grinders Are Ideal for Beginners

• Micron-Level Precision – CNC models maintain 3μ accuracy throughout the process.

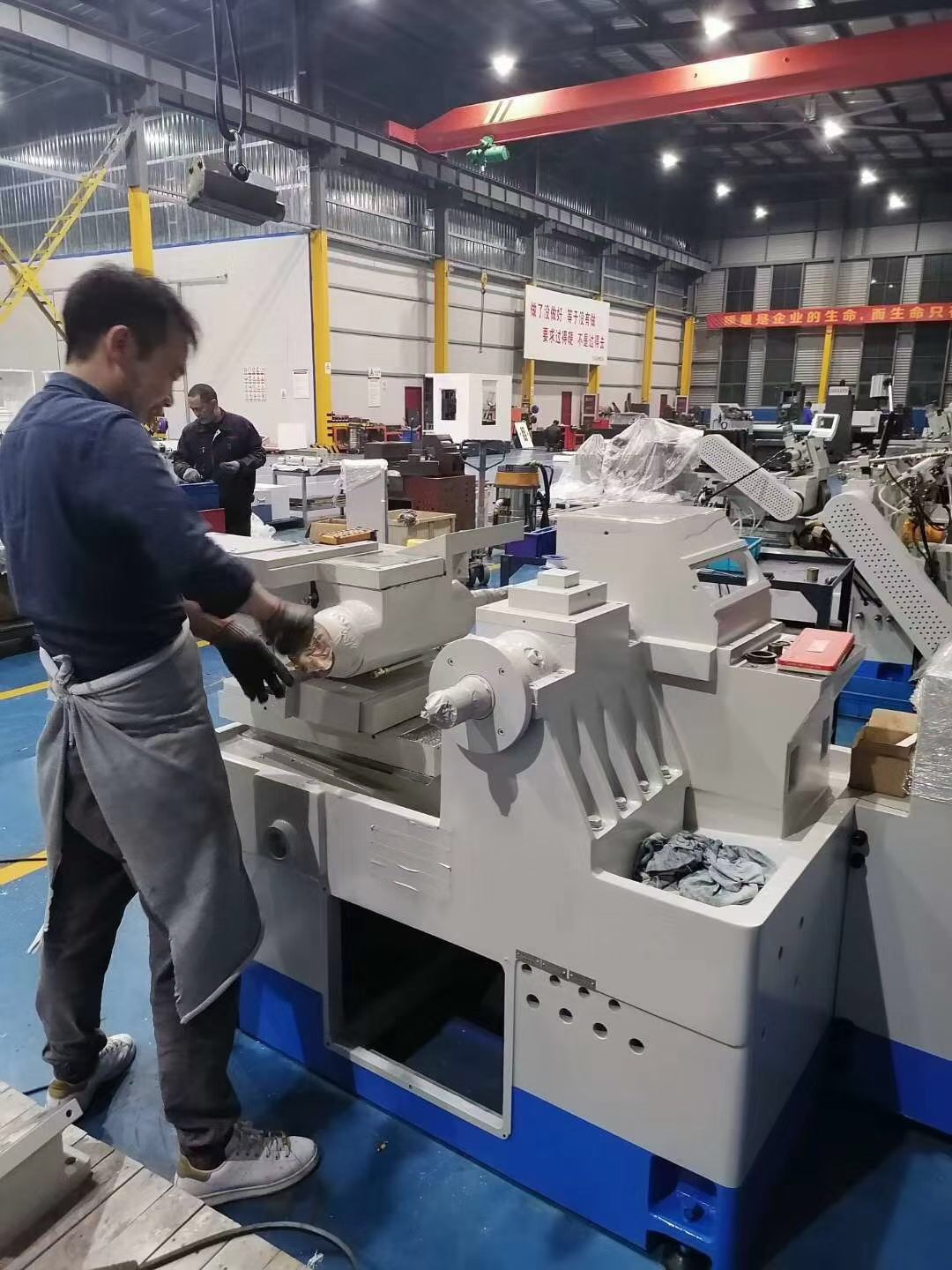

• Hand-Scraped Guideways – Traditional Japanese scraping technology ensures long-term stability and precision.

• Easy Adjustment – The user-friendly mechanical layout allows operators to quickly set up and change parameters.

• High Cost-Performance Ratio – YASHIDA grinders deliver Japanese-level accuracy at only one-third the price.

For manufacturers training new operators, YASHIDA centerless grinders offer the perfect balance between precision, simplicity, and reliability.

6. Conclusion

Mastering the centerless grinding machine takes practice, but with a clear understanding of the structure, operation steps, and adjustment methods, beginners can quickly become skilled operators.

By choosing a YASHIDA centerless grinder, you gain a stable, easy-to-operate, and highly precise machine — a solid foundation for building technical confidence and achieving top-tier manufacturing quality.
